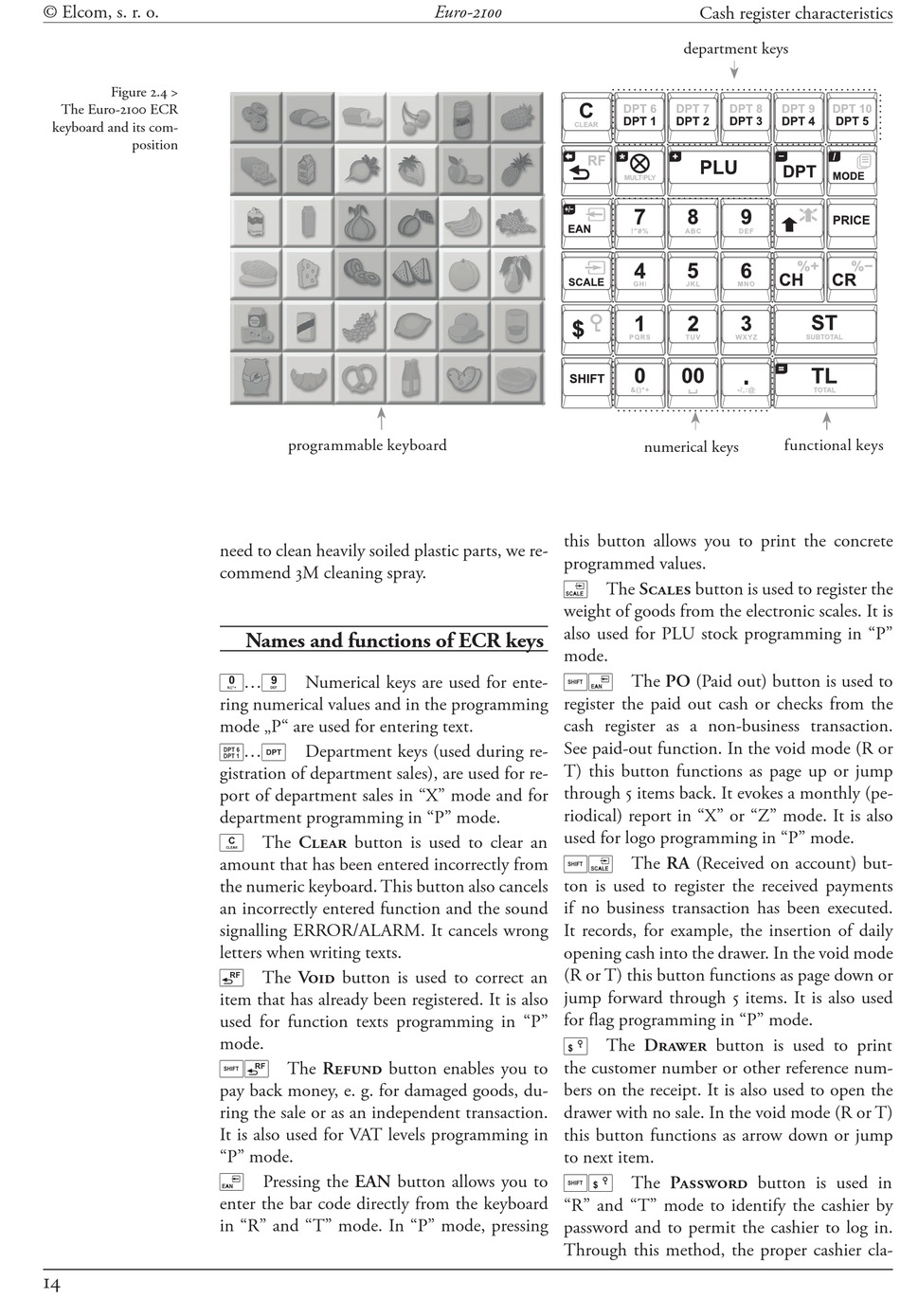

Figure 2.4 >
The Euro-2100 ECR
keyboard and its com-
position
14
programmable keyboard
need to clean heavily soiled plastic parts, we re-
commend 3M cleaning spray.

Names and functions of ECR keys

 $
... Numerical keys are used for ente-
ring numerical values and in the programming
mode „P" are used for entering text.
... Department keys (used during re-
gistration of department sales), are used for re-
port of department sales in "X" mode and for
department programming in "P" mode.
The Clear button is used to clear an
amount that has been entered incorrectly from
the numeric keyboard. This button also cancels
an incorrectly entered function and the sound
signalling ERROR/ALARM. It cancels wrong
letters when writing texts.
The Void button is used to correct an
item that has already been registered. It is also
used for function texts programming in "P"
mode.

The Refund button enables you to
pay back money, e. g. for damaged goods, du-
ring the sale or as an independent transaction.
It is also used for VAT levels programming in
"P" mode.

Pressing the EAN button allows you to
enter the bar code directly from the keyboard
in "R" and "T" mode. In "P" mode, pressing
Euro-2100
this button allows you to print the concrete
programmed values.

weight of goods from the electronic scales. It is
also used for PLU stock programming in "P"
mode.

register the paid out cash or checks from the
cash register as a non-business transaction.
See paid-out function. In the void mode (R or
T) this button functions as page up or jump
through 5 items back. It evokes a monthly (pe-
riodical) report in "X" or "Z" mode. It is also
used for logo programming in "P" mode.

ton is used to register the received payments
if no business transaction has been executed.
It records, for example, the insertion of daily
opening cash into the drawer. In the void mode
(R or T) this button functions as page down or
jump forward through 5 items. It is also used
for flag programming in "P" mode.

the customer number or other reference num-
bers on the receipt. It is also used to open the
drawer with no sale. In the void mode (R or T)
this button functions as arrow down or jump
to next item.

"R" and "T" mode to identify the cashier by
password and to permit the cashier to log in.
Through this method, the proper cashier cla-
Cash register characteristics
department keys
numerical keys
The Scales button is used to register the
The PO (Paid out) button is used to
The RA (Received on account) but-
The Drawer button is used to print
The Password button is used in
functional keys
