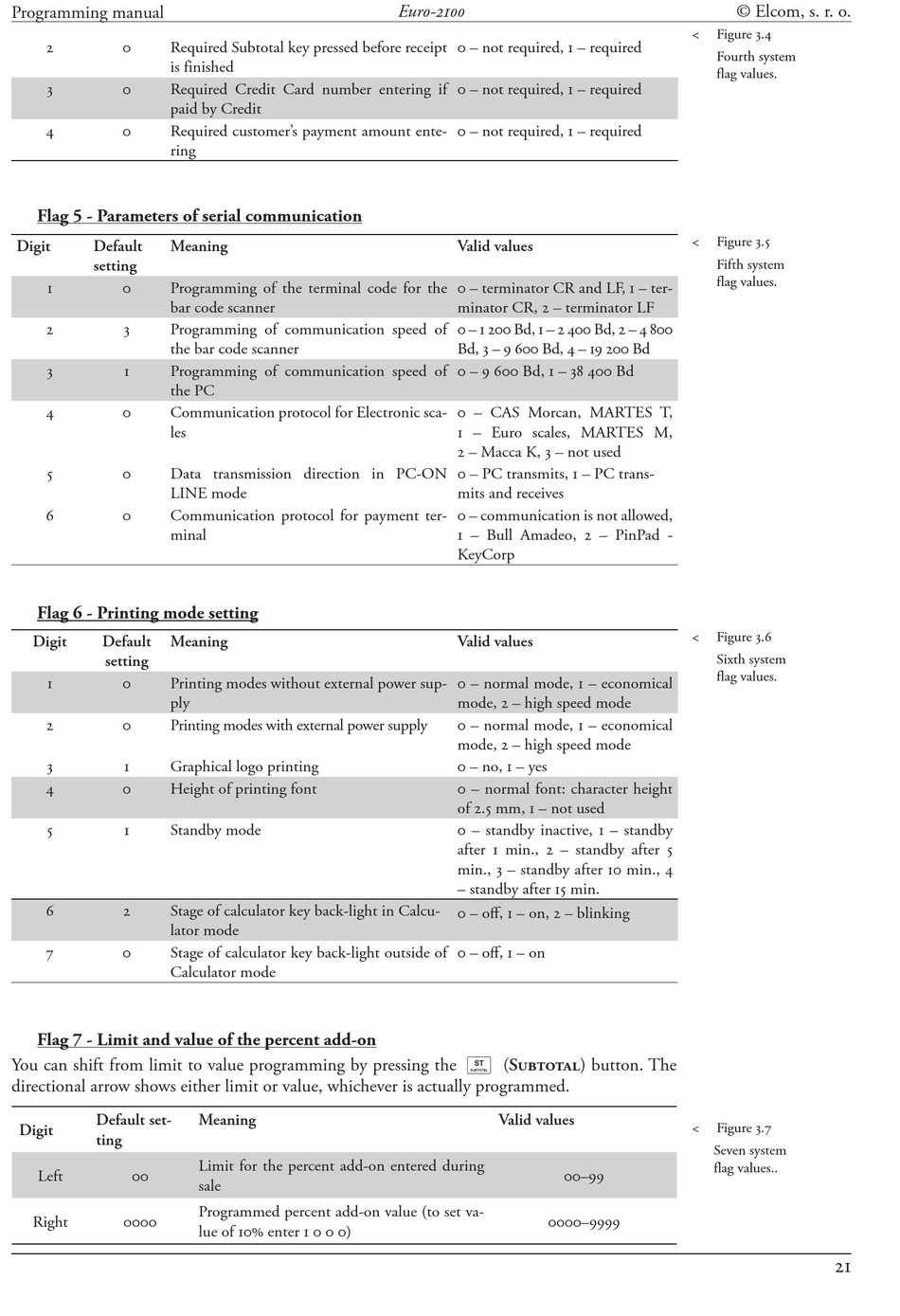

Programming manual
2 0 Required Subtotal key pressed before receipt
is finished
3 0 Required Credit Card number entering if
paid by Credit
4 0 Required customer's payment amount ente-
ring

Flag 5 - Parameters of serial communication

Digit Default Meaning
setting
1 0 Programming of the terminal code for the
bar code scanner
2 3 Programming of communication speed of
the bar code scanner
3 1 Programming of communication speed of
the PC
4 0 Communication protocol for Electronic sca-
les
5 0 Data transmission direction in PC-ON
LINE mode
6 0 Communication protocol for payment ter-
minal

Flag 6 - Printing mode setting

Digit Default Meaning
setting
1 0 Printing modes without external power sup-
ply
2 0 Printing modes with external power supply
3 1 Graphical logo printing
4 0 Height of printing font
5 1 Standby mode
6 2 Stage of calculator key back-light in Calcu-
lator mode
7 0 Stage of calculator key back-light outside of
Calculator mode

Flag 7 - Limit and value of the percent add-on

You can shift from limit to value programming by pressing the
directional arrow shows either limit or value, whichever is actually programmed.
Default set-
Digit
ting
Left 00
Right 0000
Meaning
Limit for the percent add-on entered during
sale
Programmed percent add-on value (to set va-
lue of 10 enter 1 0 0 0)
Euro-2100
0 – not required, 1 – required
0 – not required, 1 – required
0 – not required, 1 – required
Valid values
0 – terminator CR and LF, 1 – ter-
minator CR, 2 – terminator LF
0 – 1 200 Bd, 1 – 2 400 Bd, 2 – 4 800
Bd, 3 – 9 600 Bd, 4 – 19 200 Bd
0 – 9 600 Bd, 1 – 38 400 Bd
0 – CAS Morcan, MARTES T,
1 – Euro scales, MARTES M,
2 – Macca K, 3 – not used
0 – PC transmits, 1 – PC trans-
mits and receives
0 – communication is not allowed,
1 – Bull Amadeo, 2 – PinPad -
KeyCorp
Valid values
0 – normal mode, 1 – economical
mode, 2 – high speed mode
0 – normal mode, 1 – economical
mode, 2 – high speed mode
0 – no, 1 – yes
0 – normal font: character height
of 2.5 mm, 1 – not used
0 – standby inactive, 1 – standby
after 1 min., 2 – standby after 5
min., 3 – standby after 10 min., 4
– standby after 15 min.
0 – off, 1 – on, 2 – blinking
0 – off, 1 – on

(Subtotal) button. The
Valid values
00–99
0000–9999
© Elcom, s. r. o.
< Figure 3.4
Fourth system
flag values.
< Figure 3.5
Fifth system
flag values.
< Figure 3.6
Sixth system
flag values.
< Figure 3.7
Seven system
flag values..
21
