Upgrading Your Computer
3.

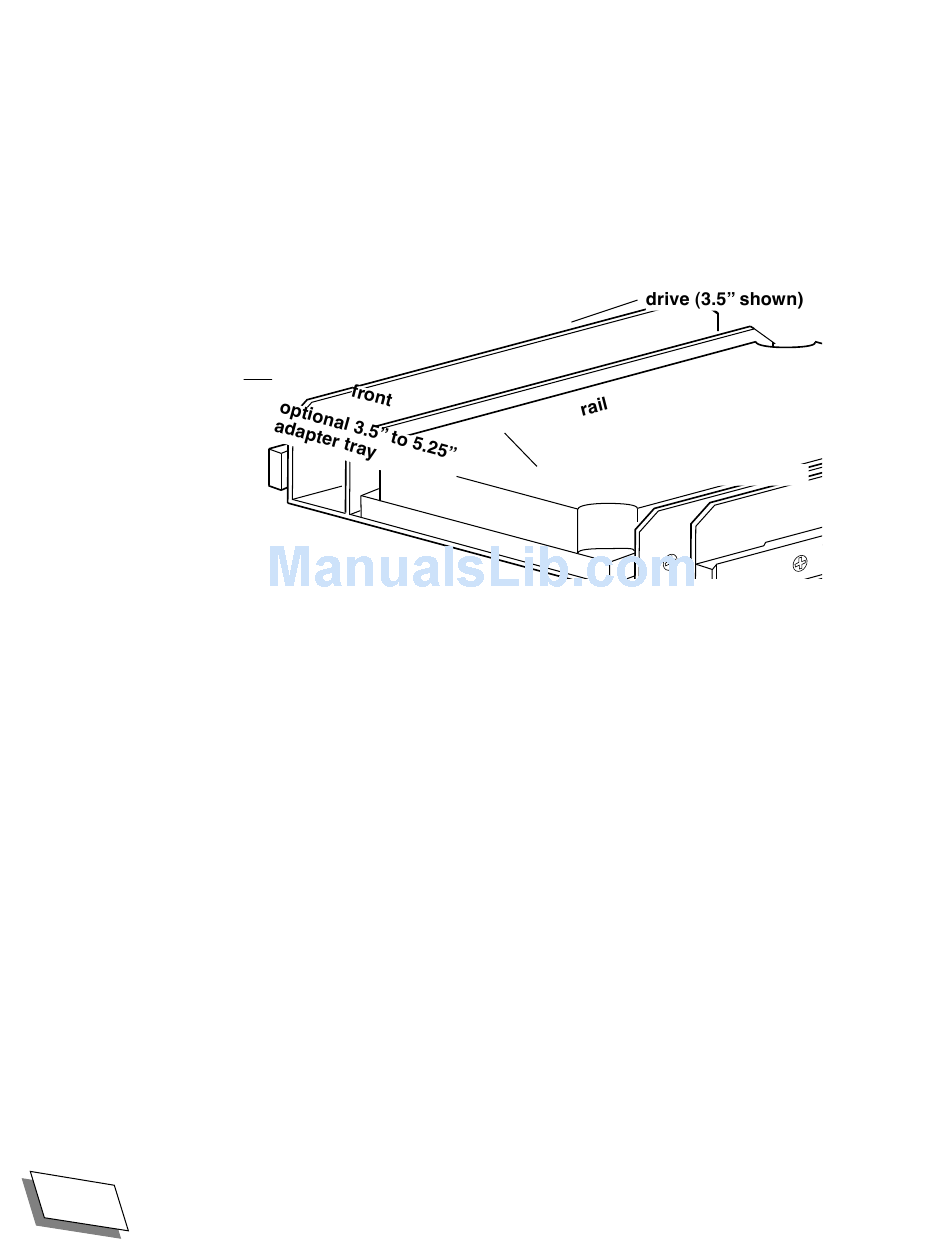

Install rails
Drives are held in place in the computer chassis by plastic rails mounted on each side,
which Þt into a mounting track in the chassis. Some drives come with rails already
installed. See illustration below.
rail
If you purchased your drive from Power Computing, the tracks should be included and
are probably already attached. If for some reason your Power Computing drive came
without rails, call Power Computing Customer Support at 1-800-671-6227.
If rails did not came with your drive, they are available from Power Computing for a
nominal fee through our Sales Department at
1-800-999-7279. Rails, as well as adapter trays for installing 3.5 inch drives in the 5.25
inch bays are also available at most computer parts stores.
If rails are not attached to the sides of your drive or adapter tray, attach one rail to each
side of the drive (or the adapter tray if you are installing a 3.5 inch drive) using the
screws supplied with the rails. Rails should be attached with the ßexible tabs toward the
front of the drive and the tracks facing out. See the illustration above.
36
PowerWave 604 UserÕs Guide
ßexible tab end of rail
