Upgrading Your Computer
To remove the cover:
1.
Shut down the computer and turn off the monitor, but leave them plugged
in.
Leaving the computer plugged in ensures that it is grounded.
2.
If the monitor is on top of the computer, disconnect it if necessary, and set
it aside.
Otherwise itÕs going to be awkward to remove the computer cover.
3.
Disconnect everything but the power cord from the back of the computer.
4.
Rotate the computer so that its back panel faces you.
5.
Remove the large thumb screw from the rear of the computer.
Put the thumb screw in your left front pocket or somewhere else where you wonÕt lose it.
6.

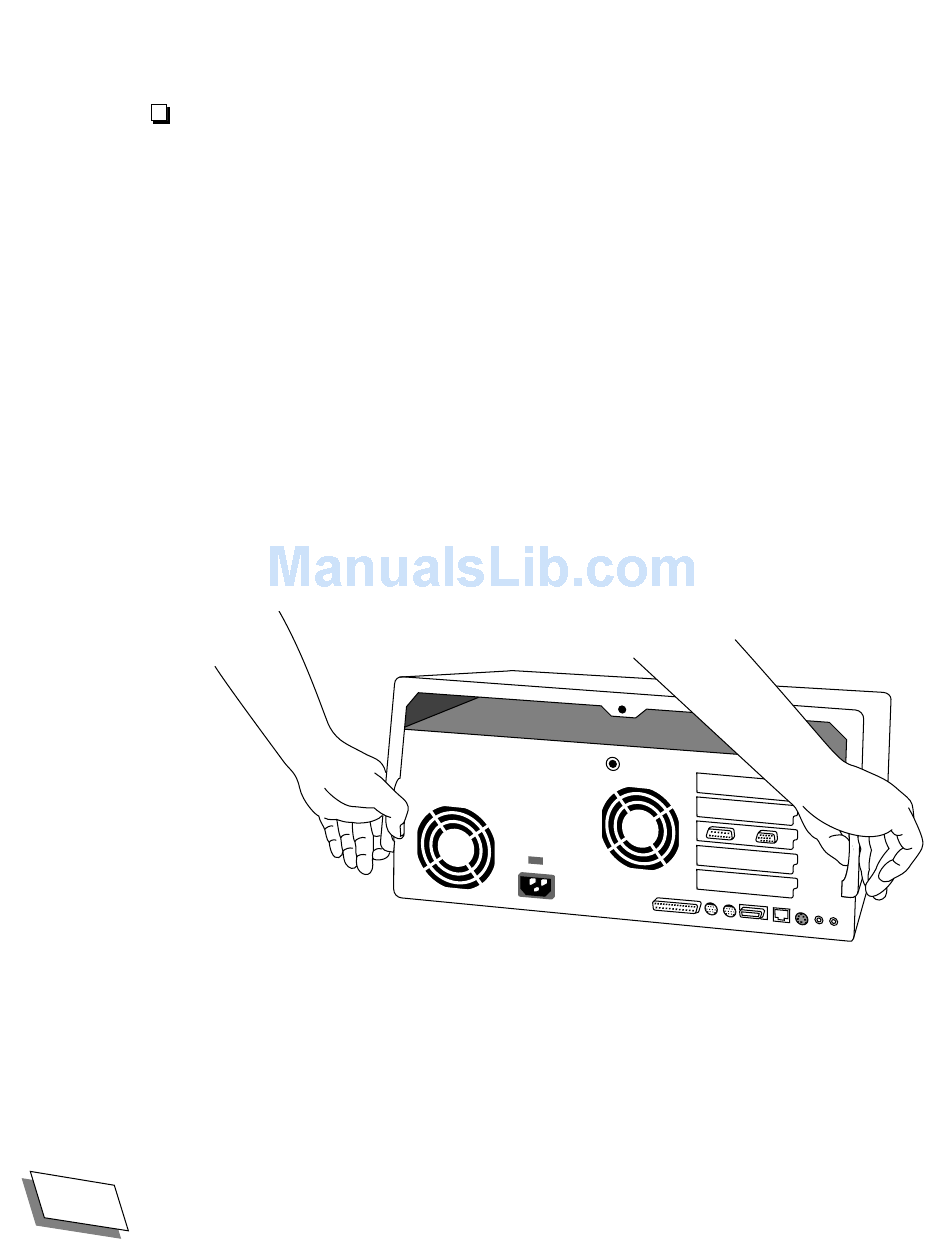

Gently pull apart the bottom corners of the cover (on the tower system,
press the clips at the bottom rear of the case outward), pull the cover
toward you slightly, lift it off and set it aside.
16
PowerWave 604 UserÕs Guide
Pull apart and lift off
