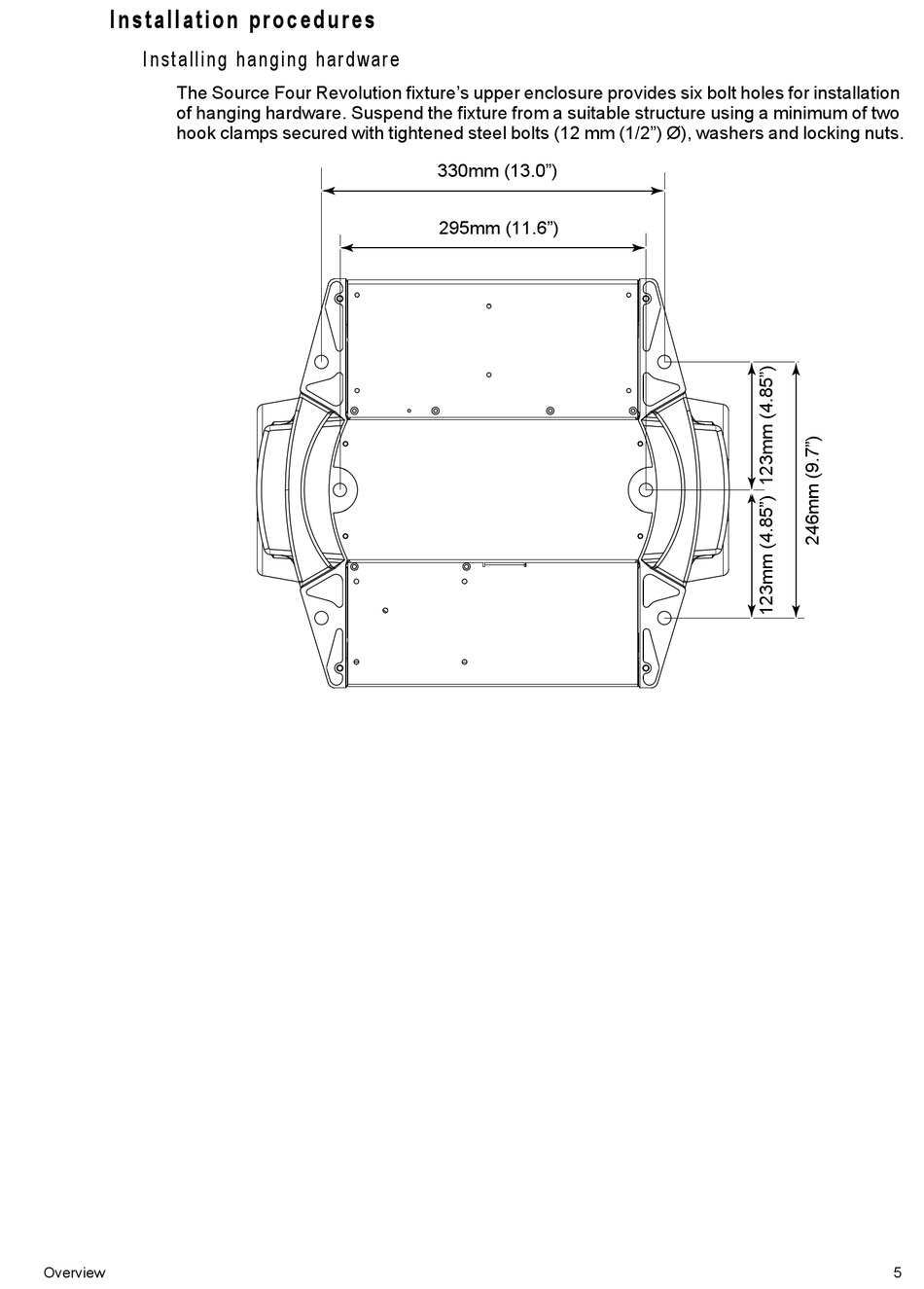

I n s t a l l a t i o n p r o c e d u r e s
I n s ta l l i n g h a n g i n g h a r d w a r e
The Source Four Revolution fixture's upper enclosure provides six bolt holes for installation
of hanging hardware. Suspend the fixture from a suitable structure using a minimum of two
hook clamps secured with tightened steel bolts (12 mm (1/2") Ø), washers and locking nuts.
330mm (13.0")
295mm (11.6")
Overview
5
