ETC Source Four Revolution User Manual page 30

GEL TENSION
DIRECTION OF DRUM ROTATION
Leader
Attachment
Spring Tension
Label
Step 3:
Step 4:
Step 5:
Step 6:
Step 7:
Step 8:
Step 9:
Step 10: When the leader is attached to the left spool, let go of the spools. The gel scroll
Step 11: Reset the fixture to calibrate and ensure proper performance of the scroller.
26

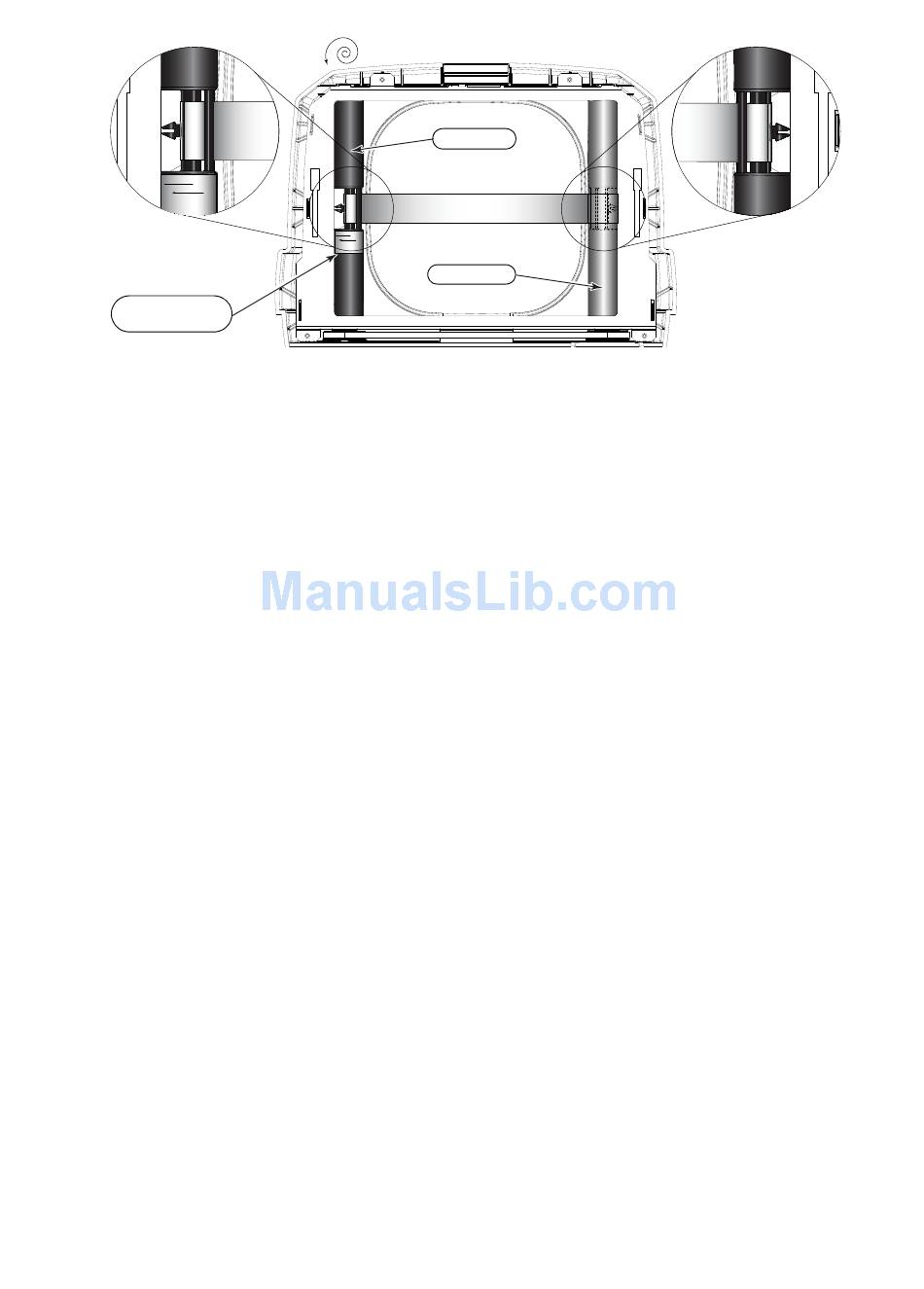

To tension the scroller
Leader shown
GEL TENSION
DIRECTION OF DRUM ROTATION
Right spool
When the attachment tab on the left spool is revealed at the end of the leader,
release the tab from the attachment point.
Carefully roll up the gel string. When the gel string is rolled up, the trailer
attachment point on the right spool is revealed.
Detach trailer from the right spool and remove the gel string.
Attach the replacement gel string's trailer to the right spool by feeding the
attachment tab down through the bar/slot and around onto the attachment point.
Roll the gel string tightly onto the right spool. Leave enough of the scroll unrolled
to allow you to attach the leader to the left spool. Keep tension on the scroll.
With your other hand, while placing your thumb on the bar and slot portion of the
left spool, spin the spool away from the center of the cartridge until the
attachment point is facing up. Then spin the spool as listed on the spring tension
label (located on the left spool) to generate the proper tension in the spring.
Continue spinning the spool about 1/4 turn until the bar/slot is visible and facing
the center of the scroller cartridge, as shown above.
Feed the end of the leader up through the bar/slot and over onto the attachment
point.
should spool a number of frames onto the left spool and then settle.
Left spool
Rear View
Trailer
Attachment
Source Four Revolution User Manual
