ETC Source Four Revolution User Manual page 10

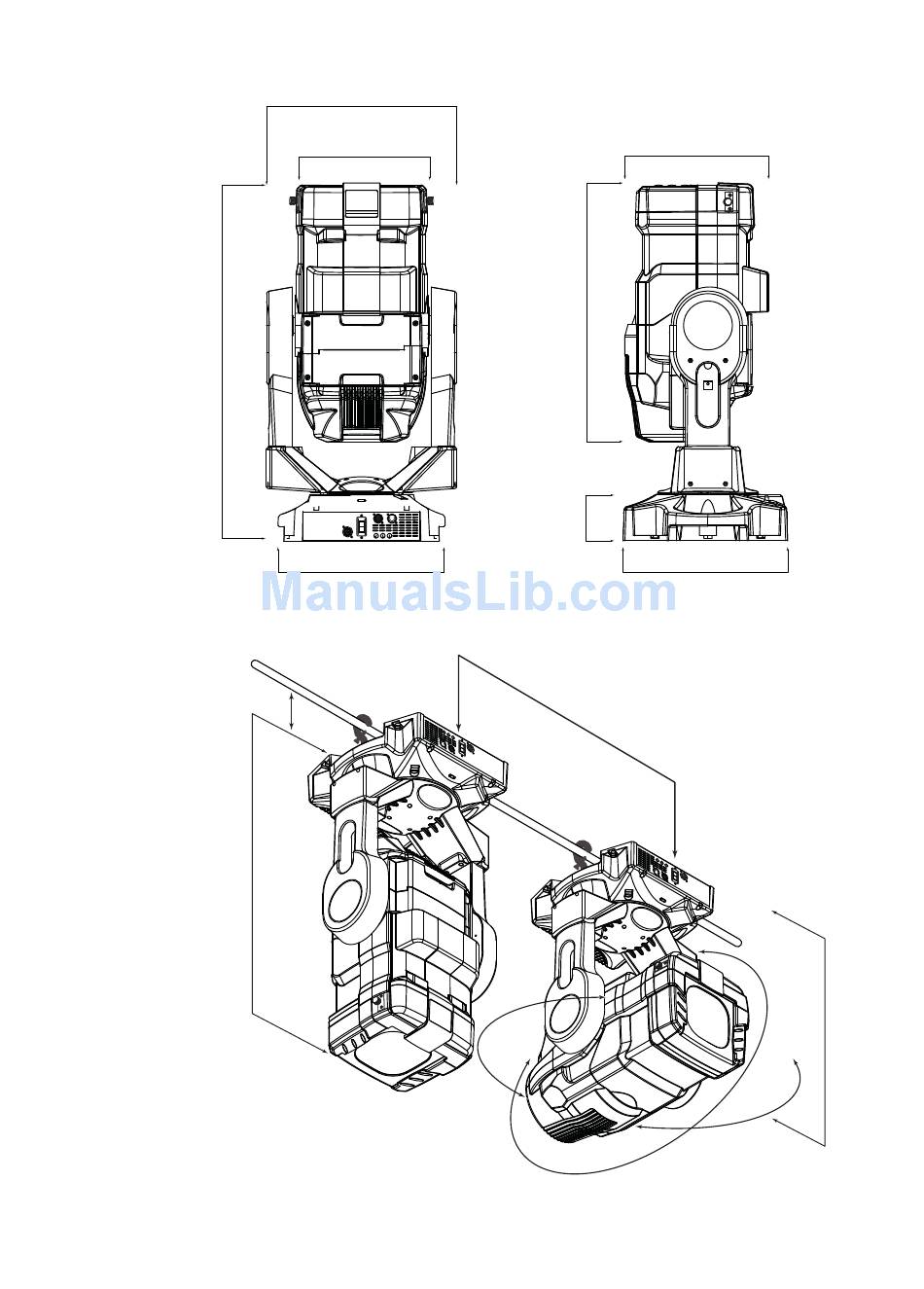

D i m e n s i o n s a n d H a n g i n g C l e a r a n c e s
856mm
(33.7")
Distance between
upper enclosure
and pipe is
variable (hanging
hardware
dependent).
856mm
(33.7")
6
454mm
(17.9")
317mm
(12.5")
I
O
400mm
(15.7")
I
O
344mm
(13.5")
619mm
(24.4")
116mm
(4.6")
394mm
(15.5")
775mm
(30.5")
I
O
762mm
(30.0")
Source Four Revolution User Manual
713mm
(28.1")
