Commissioning

Shielding gas supply

6.9 Shielding gas supply
6.9.1

Connecting the shielding gas supply

With compact machines, the shielding gas connection is made on the machine itself; with
decompact machines, on the intermediate tube package of the wire feed (see "Intermediate tube
package connection").
Item Symbol Description
1
2
3
4
5
6
7
No dirt must be allowed to enter the shielding gas supply as this would cause blockages.
All shielding gas connections must be gastight!
• Place the shielding gas cylinder in the cylinder holder and secure it from tipping over using the
securing chain!
• Before connecting the pressure reducer to the gas cylinder, open the cylinder valve briefly to blow out
any dirt.
• Mount the pressure reducer onto the gas cylinder valve.
• Fit the gas hose and G1/4" crown nut onto the relevant connection on the pressure reducer.
• Fit the gas hose and G1/4" crown nut onto the relevant connection on the welding machine, and fit the
wire feed unit (if present on this version).
• Fit the gas hose and G¼" crown nut onto the relevant connection on the welding machine.
54
0
G¼" connecting nipple
Shielding gas connection on the pressure reducer
Safety chain
Cylinder bracket
Cylinder valve
G ¼" crown nut
Pressure reducer
Shielding gas cylinder

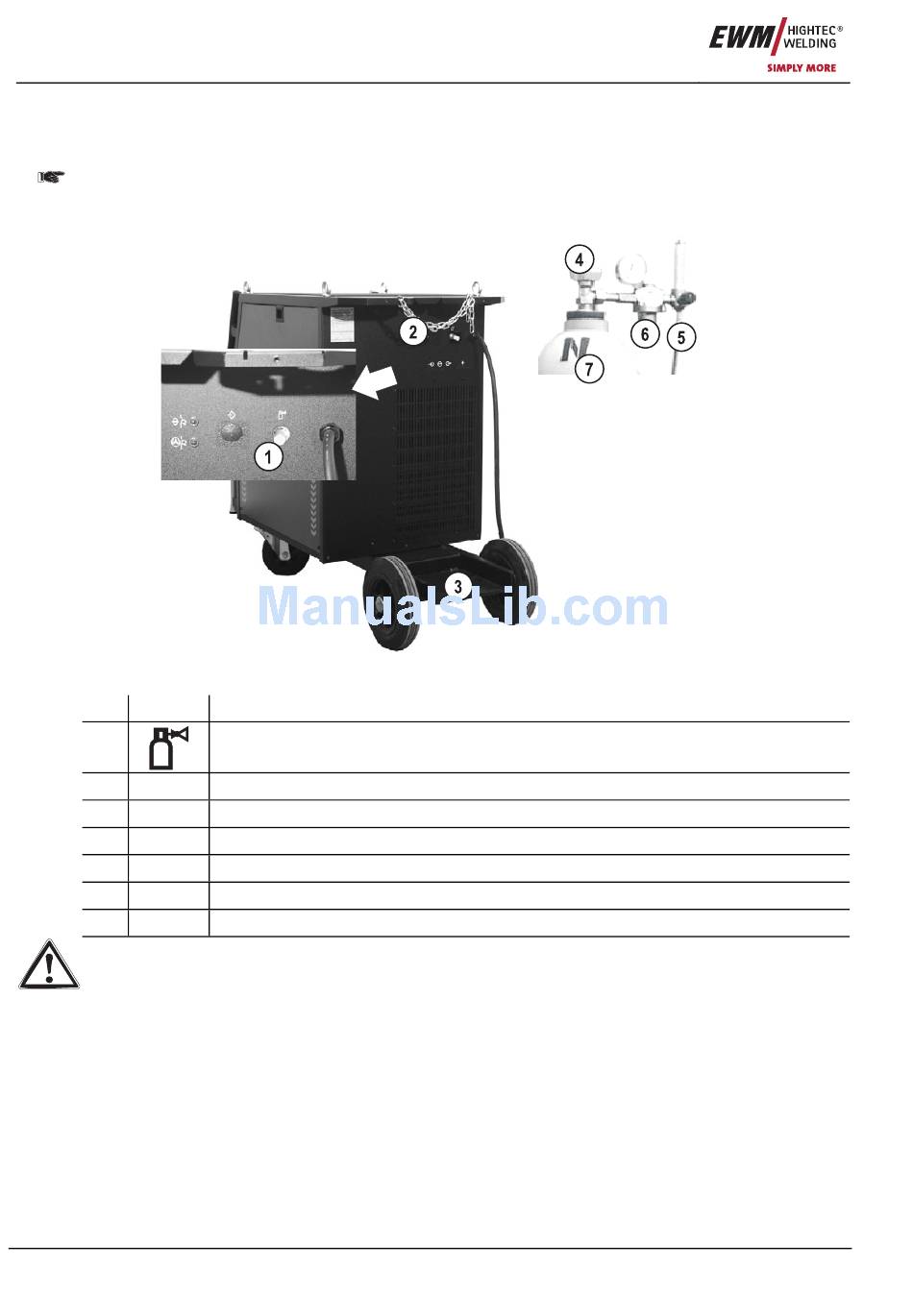

Figure 6-4
