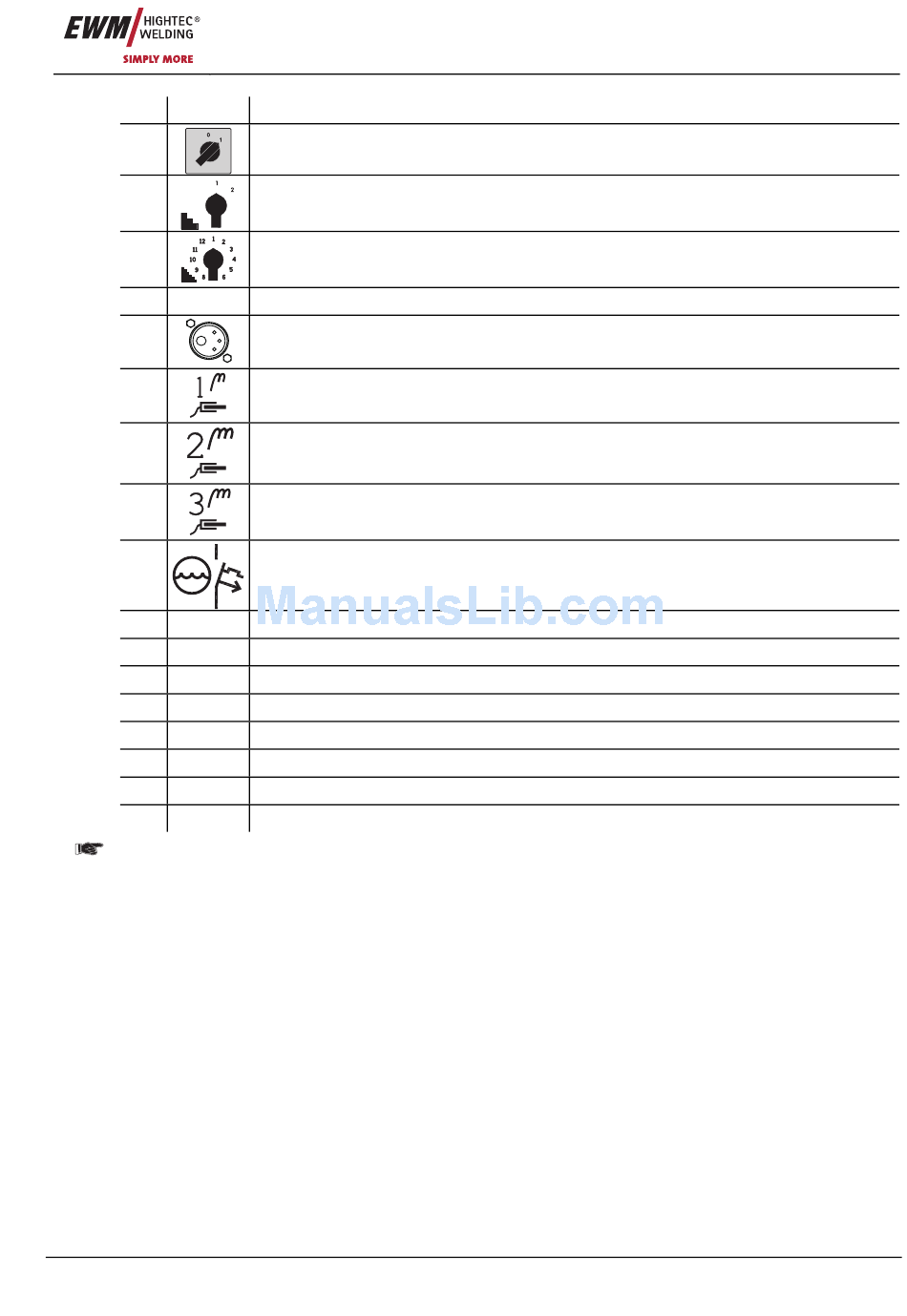

Item Symbol Description
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
Step switch, "coarse" welding voltage not applicable with WEGA 351
Item No.: 099-004934-EWM01
0
Main switch, machine on/off
Step switch, welding voltage "coarse"
Step switch, welding voltage
Operating elements (see chapter Function specification)
Euro-central connector (welding torch connection)
Welding current, shielding gas and torch trigger included
Connection socket, workpiece lead
"Hard" choke tapping
Connection socket, workpiece lead
"Medium" choke tapping
Connection socket, workpiece lead
Choke tapping "soft"
"Automatic cut-out of coolant pump" key button
(press to reset a triggered fuse)
Rapid-action closure coupling, red (coolant return)
Rapid-action closure coupling, blue (coolant supply)
Coolant tank
Transport bar
Cooling air inlet
Conveyor rolls, guide castors
Lifting lug
Conveyor rolls, fixed castors
Machine description
WEGA 351,401,451K
