Machine description

WEGA DRIVE 41 L

4.3 WEGA DRIVE 41 L
4.3.1

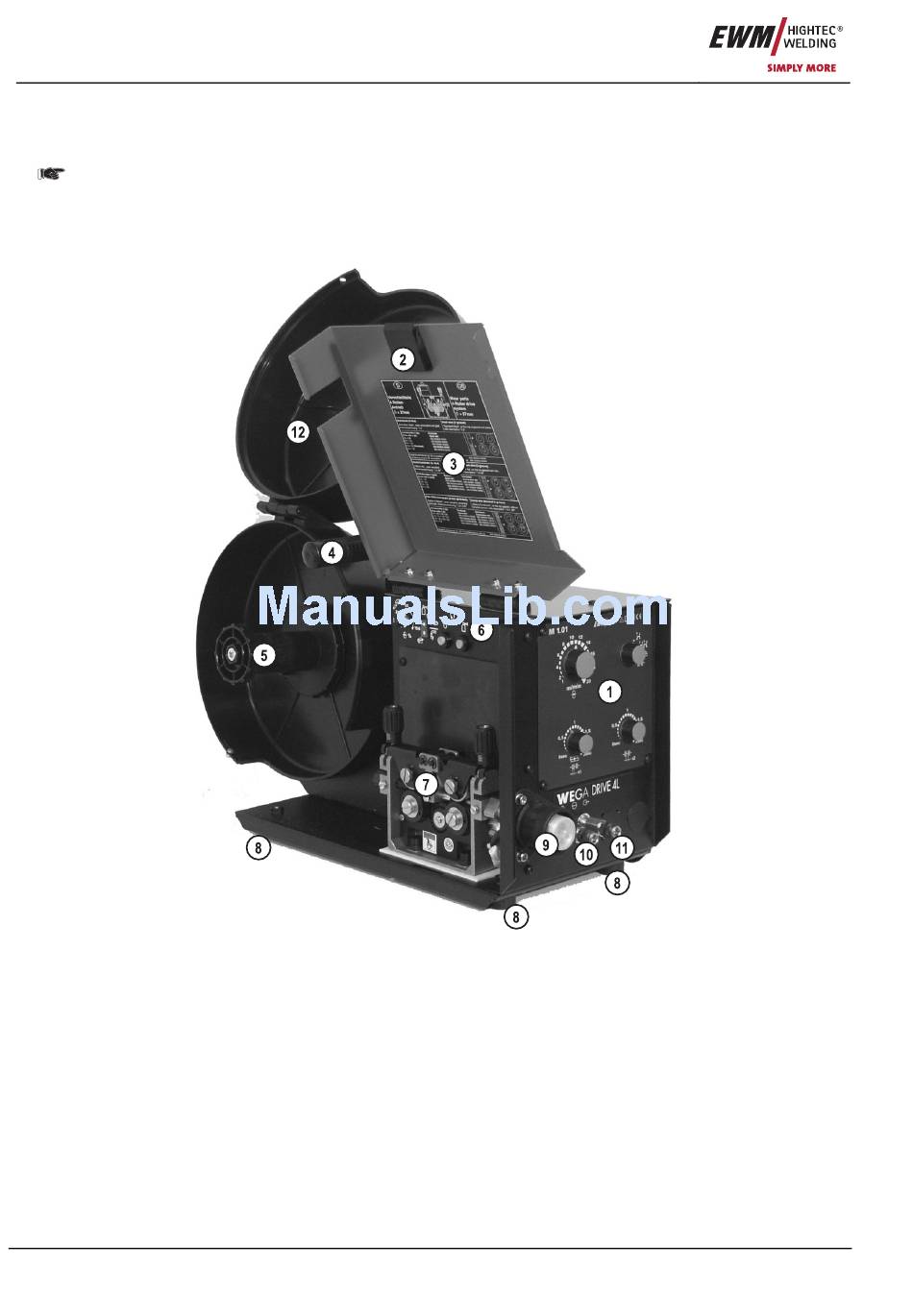

Front view

Internal operating elements for gas test, current test and wire inching are only present in
machines with M1.02 (& M1.01) control.
In machines with M2.20 and M2.40 control, these operating elements are integrated into the machine
control. Only machines with M2.40 control possess a JOB-List and therefore have the appropriate sticker
attached.
22
Figure 4-5
Item No.: 099-004934-EWM01
