Functional characteristics

5.1 Machine control – Operating elements
5.1.1

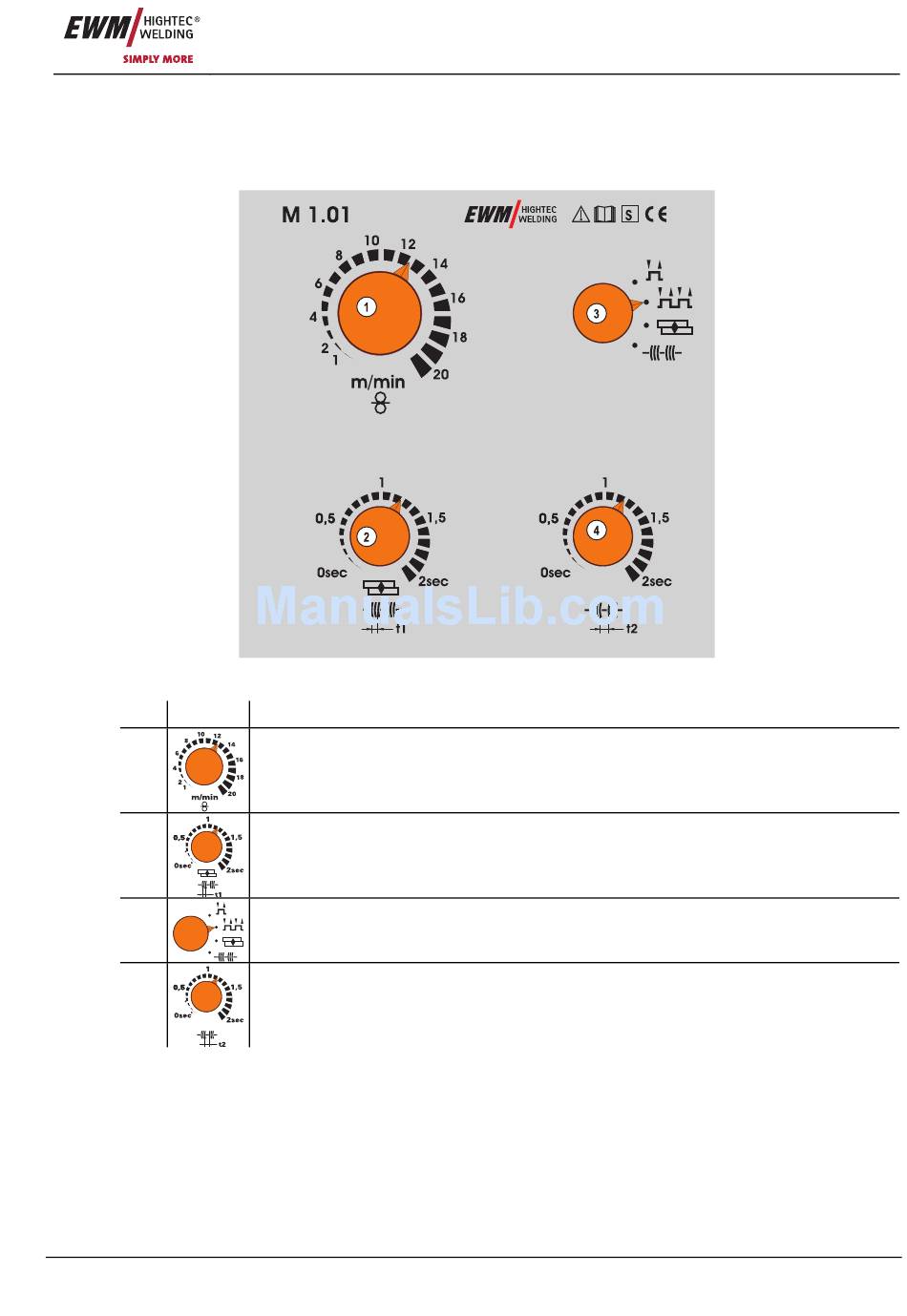

M1.01 welding machine control

Item Symbol Description
1
2
3
4
Item No.: 099-004934-EWM01
0
"Wire speed setting" rotary dial
Infinite adjustment of the wire speed.
Dial for "Spot and interval times"
Infinite adjustment of the welding time (0-2 s) in "Spots and interval" operating mode
"Operating mode" selector switch
Changeover between non-latched, latched, spot, interval
"Pause time" rotary dial
Infinite adjustment of the pause time (0–2 s) in "Interval" operating mode
