Machine description
WEGA DRIVE 41
4.4.2

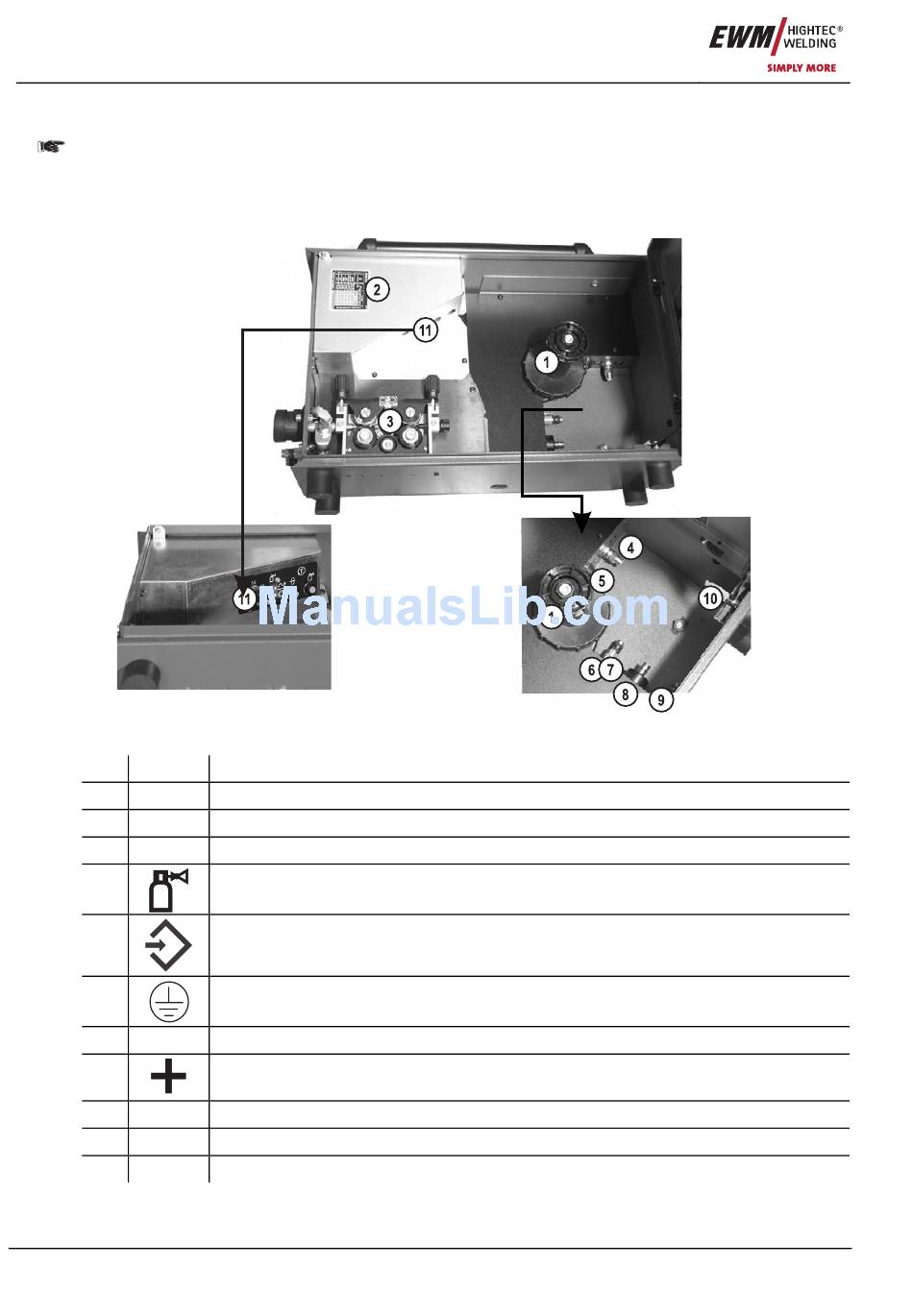

Inside view

Internal operating elements for gas test, current test and wire inching are only present in
machines with M1.02 (& M1.01) control.
In machines with M2.20 and M2.40 control, these operating elements are integrated into the machine
control. Only machines with M2.40 control possess a JOB-List and therefore have the appropriate sticker
attached.
Item Symbol Description
1
2
3
4
5
6
7
8
9
10
11
26
0
Spool holder
"JOB list" sticker
Wire delivery unit
Connecting nipple G¼, shielding gas connection
7-pole connection socket
• Wire feed unit control lead
Earth cable connecting nipple
Connection of green-yellow earth cable from the intermediate tube package
Rapid-action closure coupling, blue (coolant supply)
Connector plug, welding current "+"
Welding current connection on wire feed unit
Rapid-action closure coupling, red (coolant return)
Intermediate tube package strain relief
Operating elements (see chapter Function specification)
Figure 4-8
