6.8.1.2

Welding machine

Item Symbol Description
1
2
3
4
5
• Insert the end of the tube package through the intermediate tube package strain relief and lock by
turning to the right.
• Insert the plug on the welding current lead into the connection socket "+" and lock.
• Lock connecting nipples of the cooling water tubes into place in the corresponding rapid-action closure
couplings:
Return, red, to rapid-action closure coupling, red (coolant return) and
Return, blue, to rapid-action closure coupling, blue (coolant supply).
• Insert the plug of the control cable into the 7-pole connection socket (digital) and secure with the
crown nut (the plug can only be inserted in one position into the connection socket).
• Connect the crown nut on the shielding gas lead to the G¼" connecting nipple, connect the shielding
gas.
• Screw the eyelet of the earth lead on to the connecting nipple of the earth lead.
Item No.: 099-004934-EWM01
0
7-pole connection socket
• Wire feed unit control lead
Rapid-action closure coupling, red (coolant return)
Rapid-action closure coupling, blue (coolant supply)
Connector plug, welding current "+"
Welding current connection on wire feed unit
Earth cable connecting nipple
Connection of green-yellow earth cable from the intermediate tube package
Welding torch and workpiece line connection

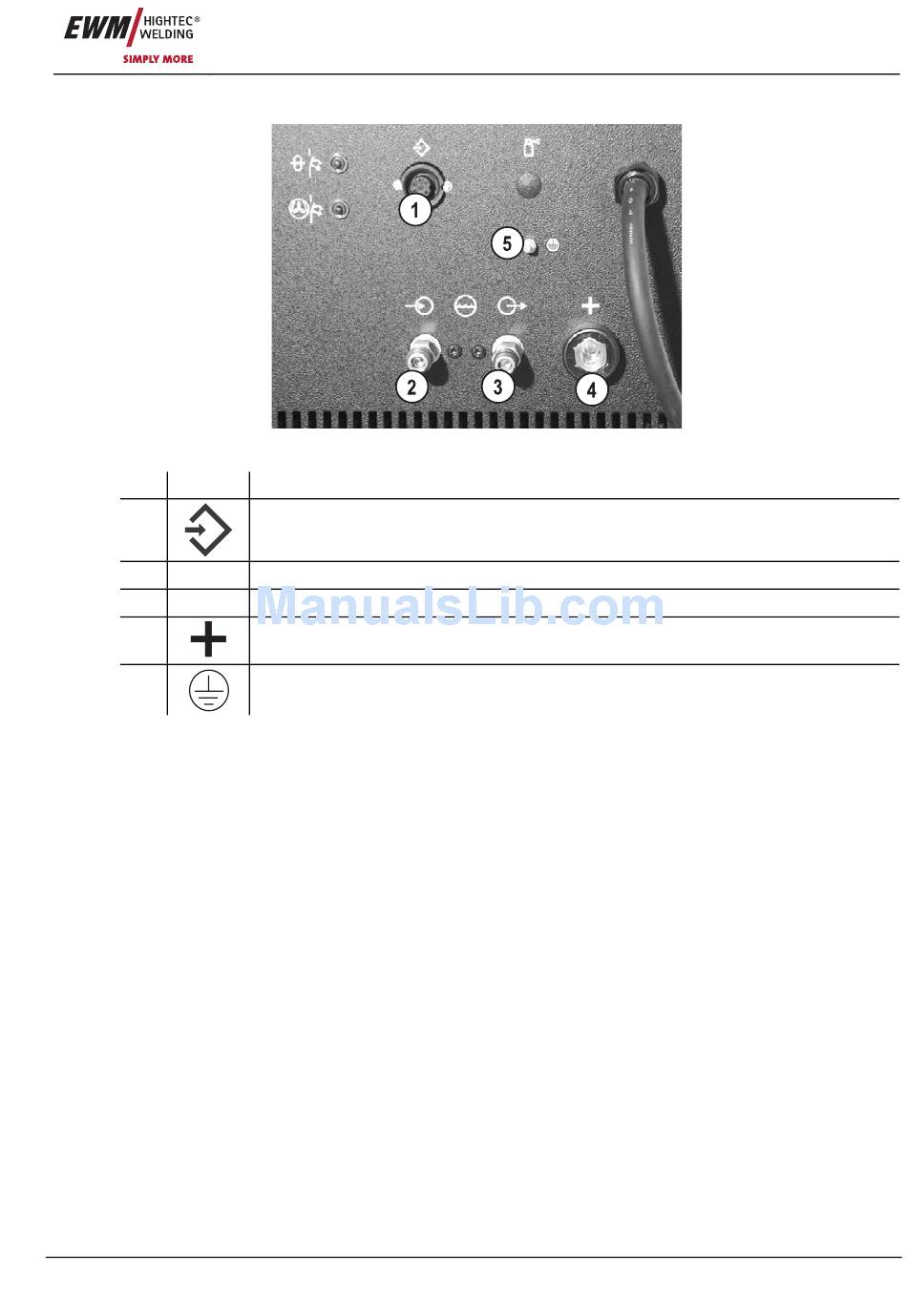

Figure 6-3
Commissioning
