EWM WEGA 351 Operating Instructions Manual page 21

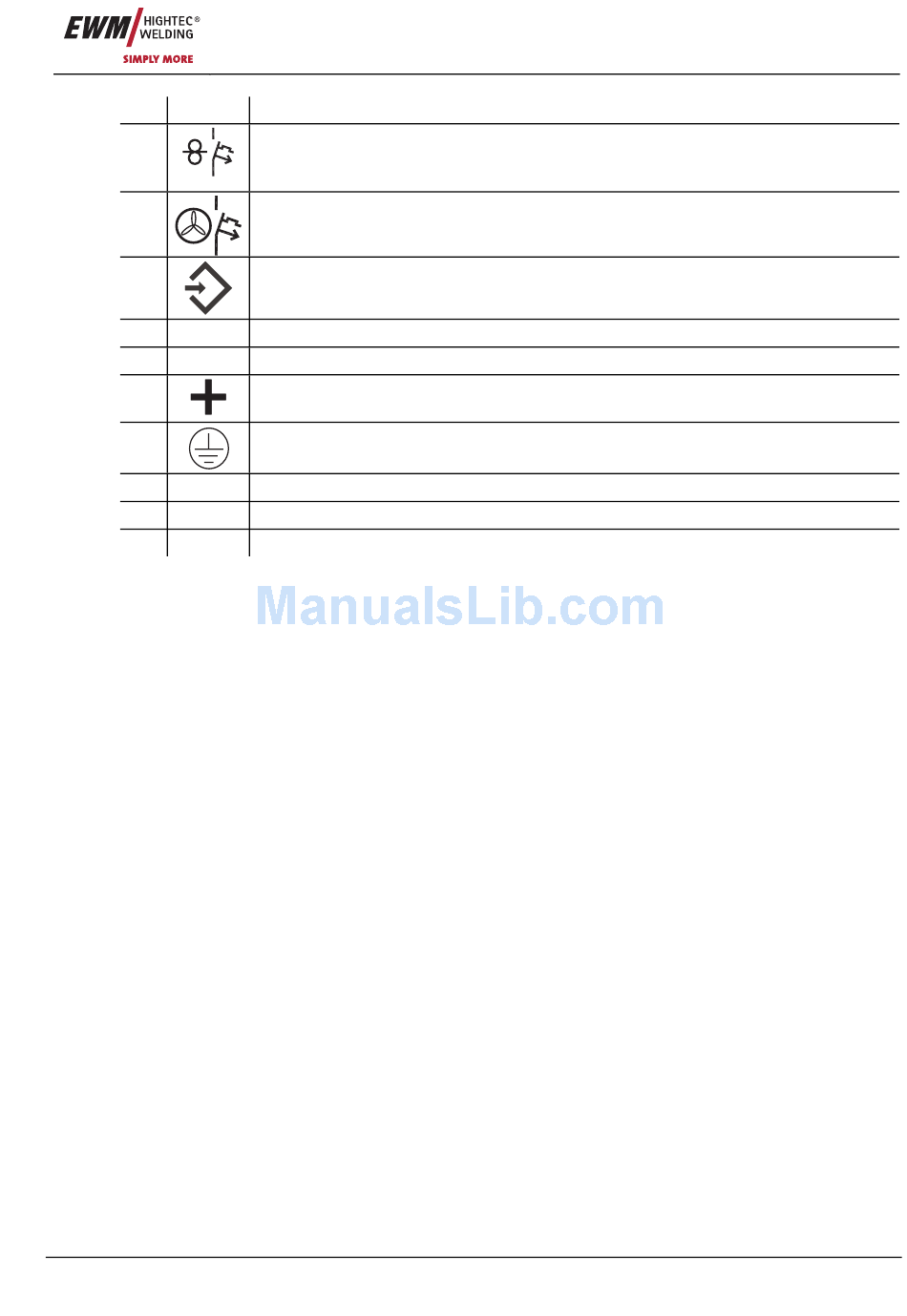

Item Symbol Description
1
42V/4A
2
3
4
5
6
7
8
9
10
Item No.: 099-004934-EWM01
0
"Automatic cutout" key button
Wire feed motor supply voltage fuse
(press to reset a triggered fuse)
"Automatic cut-out of fan motor" button
(press to reset tripped circuit breaker)
7-pole connection socket
• Wire feed unit control lead
Rapid-action closure coupling, red (coolant return)
Rapid-action closure coupling, blue (coolant supply)
Connector plug, welding current "+"
Welding current connection on wire feed unit
Earth cable connecting nipple
Connection of green-yellow earth cable from the intermediate tube package
Mains connection lead
Bracket for shielding gas cylinder
Cooling air outlet
Machine description
WEGA 351,401,451D
21
