Appendix B: Web User Application
Workspace
The workspace offers additional links to the following pages of the application: System
Operation, Settings and History. When you choose a page, either from the Main Menu,
or from the workspace, the page is displayed in the workspace. For example, if you
choose Set/Unset from the Main Menu, System Operation Area page and System Status
area are displayed in the workspace (see the example below).

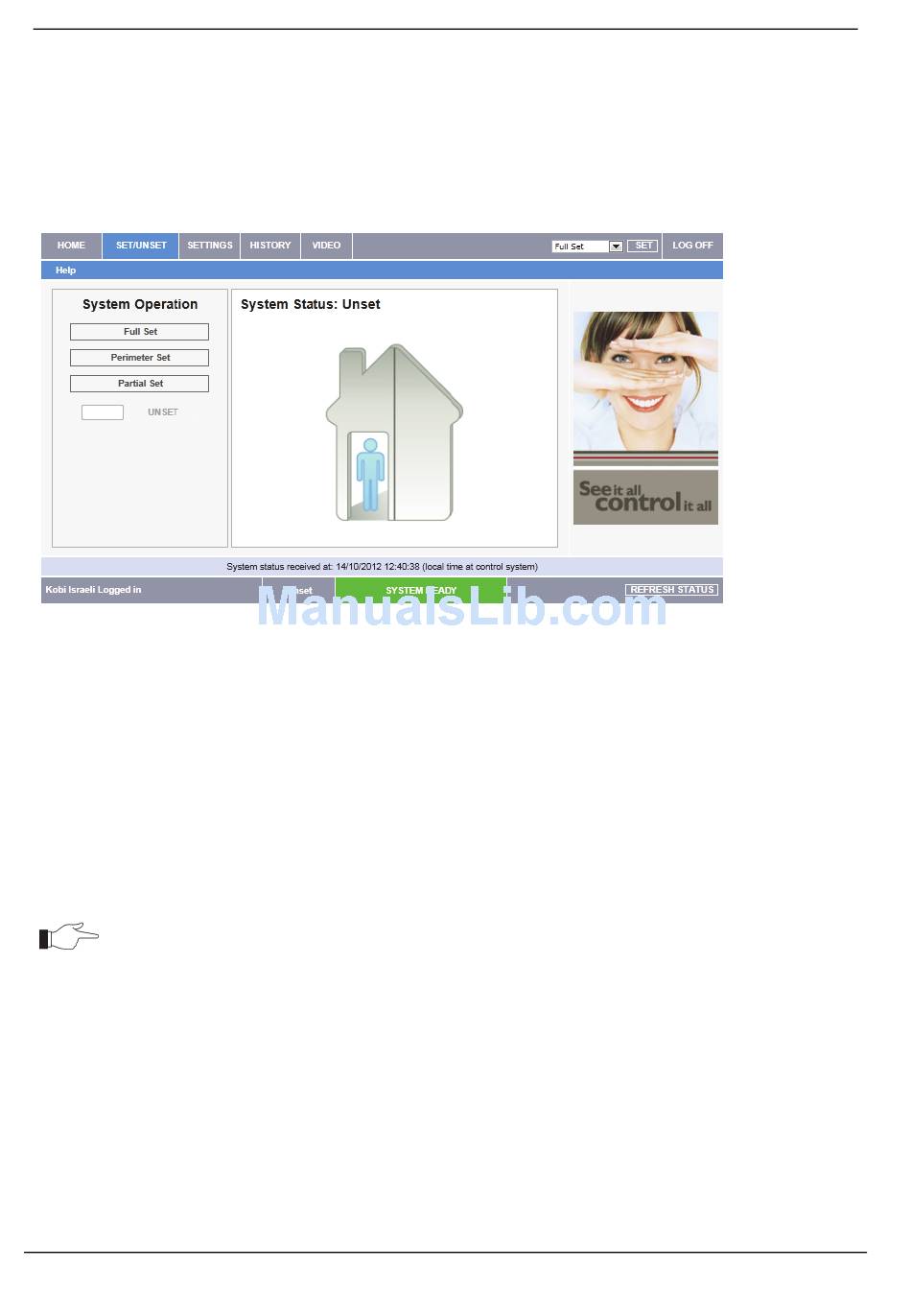

Figure 7: Workspace Example Page
You can set and unset the system using the Set/Unset drop-down box (upper-right part
of the page) or using the buttons in the System Operation Area.
•
The Web Application allows you to set and unset your system using
any of the available setting methods.
•
On the Status Bar below on the page you can see the current status of
the system (in our example it is Disarmed and System Ready, which
means that the system and all the detectors are working properly and
there are no events to report). It is possible to check if there were
alarms in the system.
It is important to note that when you are using the Web application, the system
is set with the programmed delay
Home Button
Press the Home button on the Main menu to return to the Main page at any time.

Setting and Unsetting

Setting can be defined as turning the system on. When the system is set, it monitors the
zones that are protected by the detectors. If a detector detects an intrusion, the system
generates an alarm. Certain detectors can be programmed by your engineer to be active
24 hours a day. These detectors are always active regardless of system status.
