Chapter 2: External Connectors Pinout Description

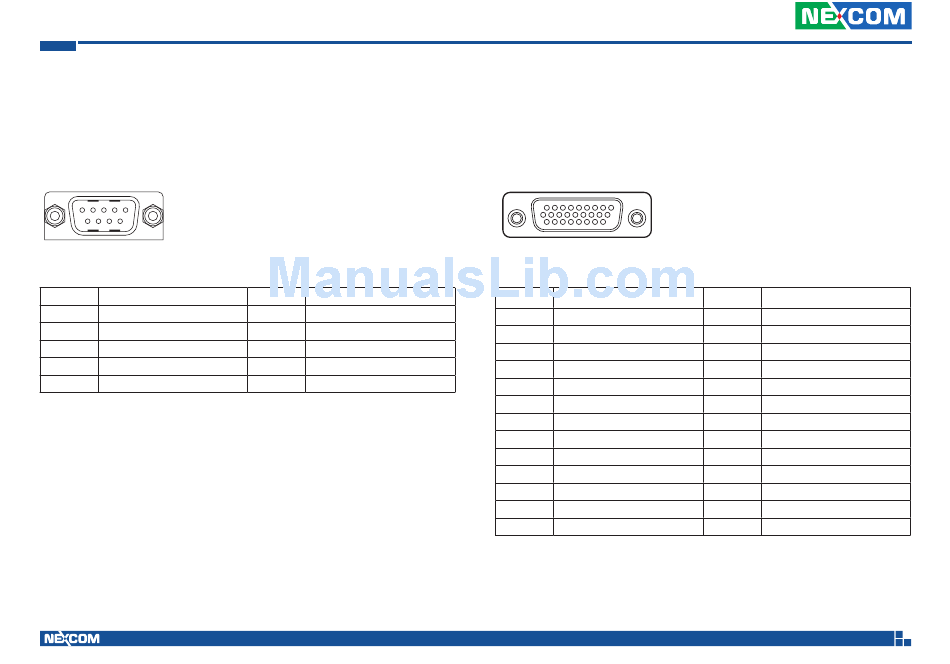

RS232 Connector

Connector size: DB9, Male
Connector Number: 11
1 5
9 6
Pin Definition
1 DCD
3 TXD
5 GND
7 RTS
9 RI
Copyright © 2012 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
2 RXD
4 DTR
6 DSR
8 CTS

LVDS Connector

Connector size: DB26, Female
Connector Number: 12
9 1
26 19
Pin Definition
1 Panel_ EN
3 VDD
5 LCDD09(OUT3)
7 LCDD08(OUT3#)
9 LCDD_GND
11 LCDD07(CLK)
13 LCDD06(CLK#)
15 LVDS_GND
17 LCDD05(OUT2)
19 LCDD04(OUT2#)
21 LCDD_GND
23 USB_0#
25 USB_0
NOTE: maximum resolution up to 1280x768 @ 60Hz
11
Pin Definition
2 Panel_control
4 VDD
6 LCDD01(OUT0)
8 LCDD00(OUT0#)
10 LCDD_GND
12 LCDD03(OUT1)
14 LCDD02(OUT1#)
16 LCDD_GND
18 Power on push button
20 Panel_backlight
22 Panel-Gnd
24 Contact_DET#
26 USB_VCC
