Chapter 3: Jumpers and Switches
VTC 7120-BK Series Connector Specification & Jumper Setting
Carrier board placement

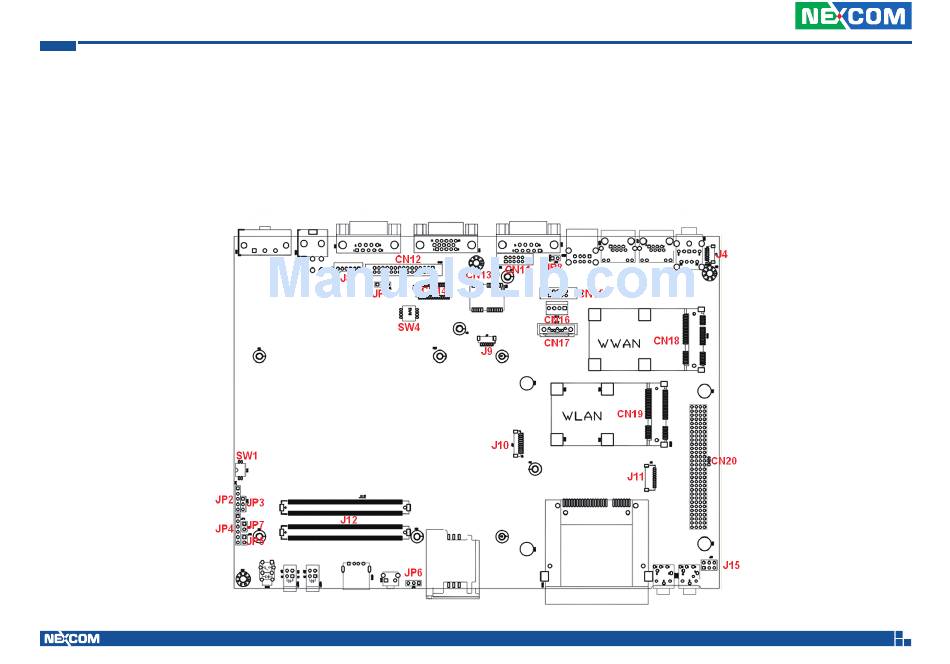

The figure below is the carrier board which is the board used in the system. It shows the locations of the jumpers and connectors.
Top View
18
