Chapter 1: Product Introduction
Connector Numbering

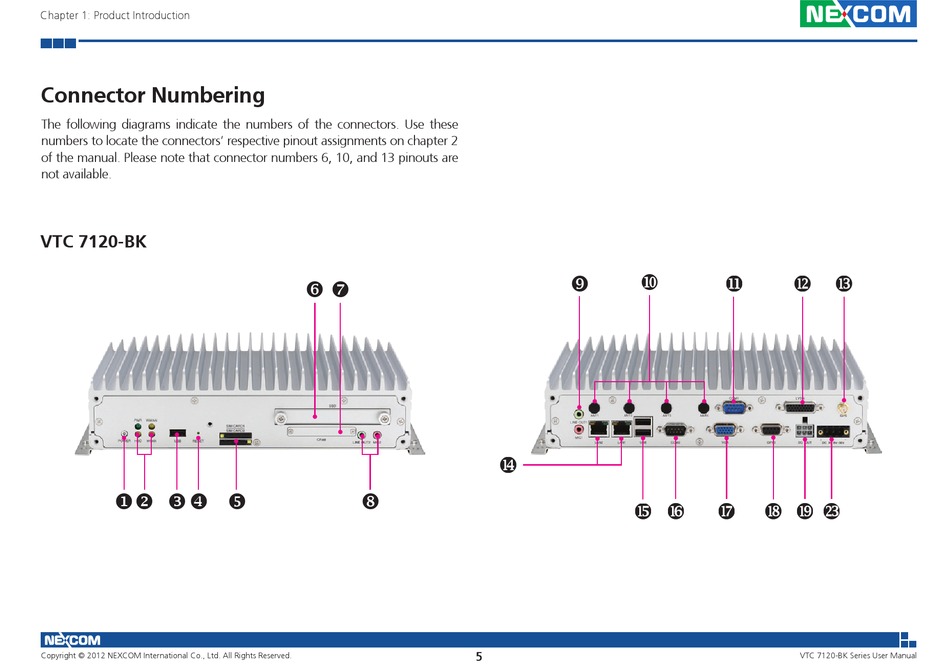

The following diagrams indicate the numbers of the connectors. Use these
numbers to locate the connectors' respective pinout assignments on chapter 2
of the manual. Please note that connector numbers 6, 10, and 13 pinouts are
not available.
VTC 7120-BK
5
Copyright © 2012 NEXCOM International Co., Ltd. All Rights Reserved.
VTC 7120-BK Series User Manual
