Chapter 2: External Connectors Pinout Description

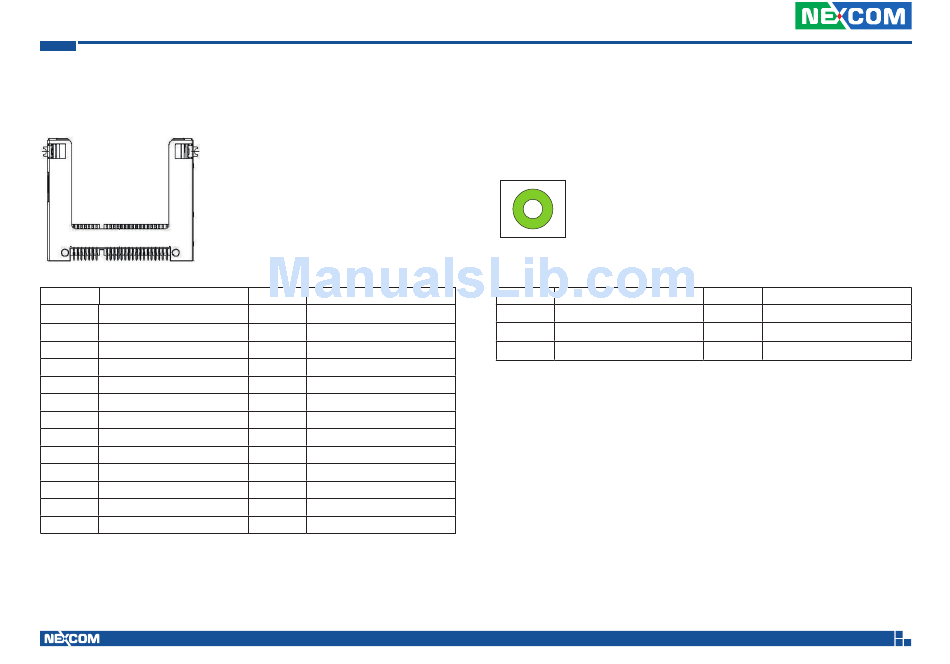

CFast Card Connector
Connector Number: 7
S1
S7 PC1
PC17
Pin
Definition
S1
GND
S3
SATA_TXN
S5
SATA_RXN
S7
GND
PC1
CFAST_CDI
PC3
NC
PC5
NC
PC7
GND
PC9
CFAST_LED2
PC11
NC
PC13
VCC3
PC15
GND
PC17
CFAST_CDO
Copyright © 2012 NEXCOM International Co., Ltd. All Rights Reserved.
Pin
Definition
S2
SATA_TXP
S4
GND
S6
SATA_RXP
PC2
GND
PC4
NC
PC6
NC
PC8
CFAST_LED1
PC10
NC
PC12
NC
PC14
VCC3
PC16
GND
Line-out
Connector Number: 8
Pin
Definition
1
FRONT_OUT_RC
3
NC
5
GND
9
Pin
Definition
2
FRONT_JD
4
FRONT_OUT_LC
6
GND
VTC 7120-BK Series User Manual
