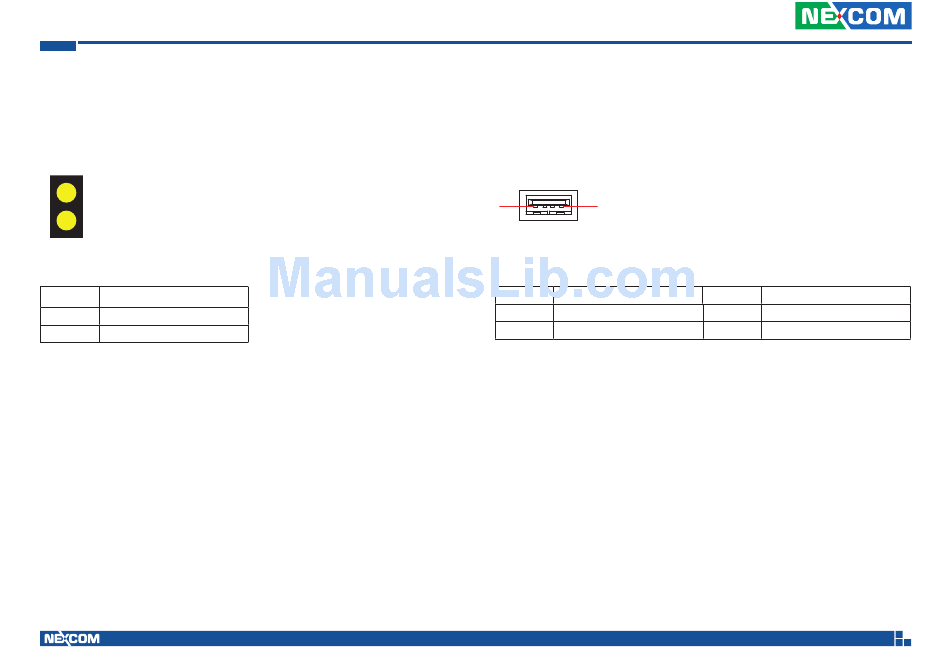

Chapter 2: External Connectors Pinout Description
WLAN & WWAN Active LED
Connector Number: 2
T1
B1
Pin
Function Description
T1
WWAN LED
B1
WLAN LED
Copyright © 2012 NEXCOM International Co., Ltd. All Rights Reserved.

USB 2.0 Port

Connector Number: 3
1
4
Pin
Definition
1
VCC
3
DATA1+
7
Pin
Definition
2
DATA1-
4
GND
VTC 7120-BK Series User Manual
