Main Interface Display

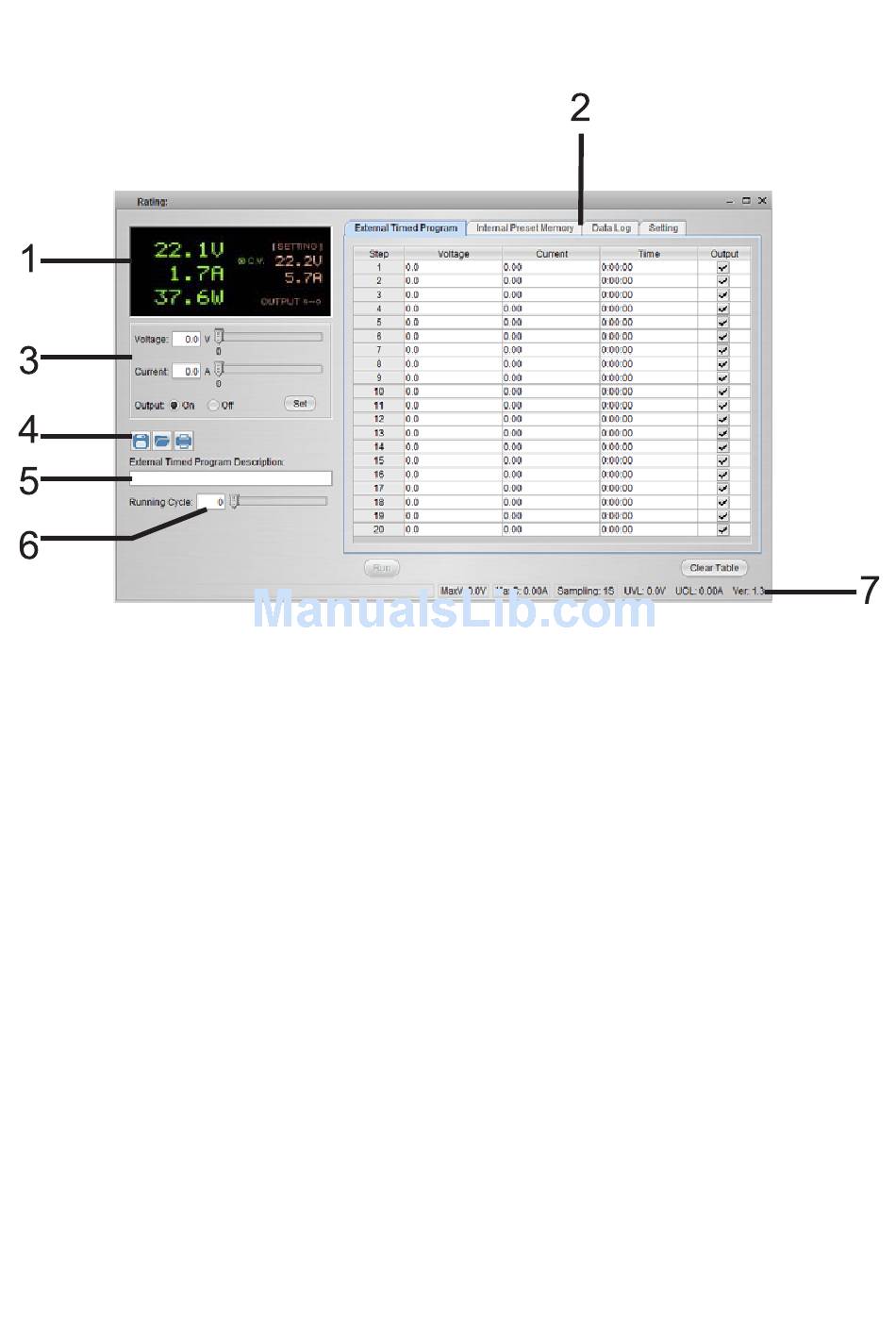

The Main interface is divided into 7 panels.
1.
Display panel: Indicates real‐time power supply information.
2.
Main Configuration and Datalogger Display panel: Use this panel to adjust general
program settings and to view External Timed Programs, Internal Preset Memory data,
and Datalogger information.
3.
Voltage and Current setting panel: Use this panel to set the output values and to switch
the output On/Off.
4.
Data handling panel: Use this panel to save, load and print data.
5.
External Timed Program Description field: Enter a customized description for an External
Timed Sequence.
6.
Program running cycle setting panel: Set the desired number of running cycles for the
External Timed Sequence.
7.
Information panel: Displays the Maximum voltage/ current, Datalogger Sampling time
(rate), upper voltage/ current limits, and software version.
