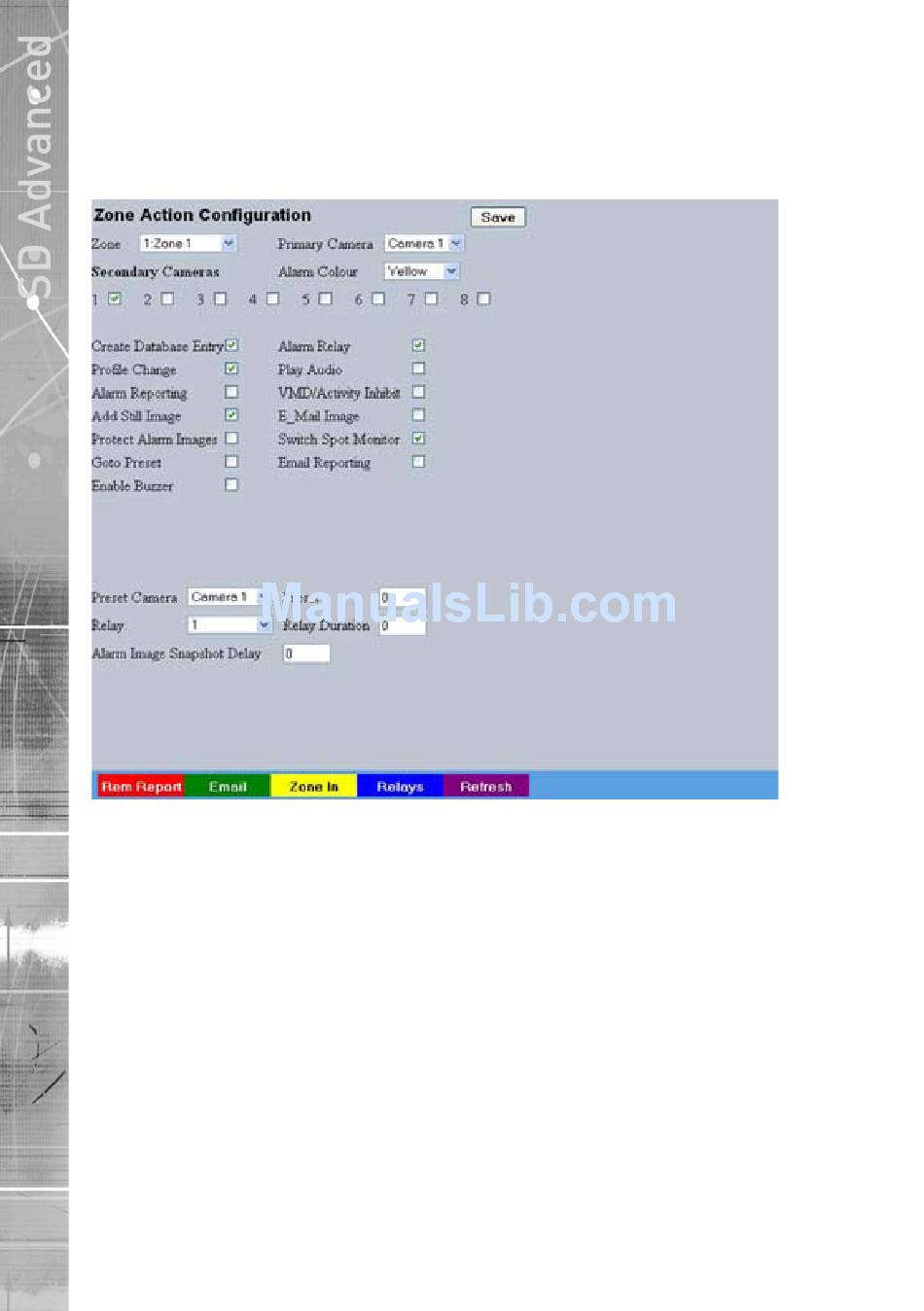

Zone Actions

This menu allows actions to be allocated to individual alarm zones; Primary and Secondary cameras
can be allocated to the zone and actions undertaken following alarm activation. This page should be
configured in conjunction with the Zone Inputs menu.
Zone
Primary Camera
Alarm Colour
Secondary Cameras
Create Database Entry
Alarm Relay
Profile Change
Play Audio
Alarm Reporting

Select a zone (alarm) to configure.
This allows a camera to be assigned as the primary camera
associated with the Alarm Zone. The primary camera will be
displayed when an alarm in this zone is triggered.
This displays the local alarm text in the selected colour and can
be useful in prioritising alarms. Options available are Red, Green,
Blue, Yellow, Cyan and Magenta.
This setting gives the facility to assign additional cameras to the
zone. These cameras will become part of the alarm sequence
shown in the Viewer menus when the alarm zone is triggered.
An alarm activation will be added to the database. The zone title
will be used as part of the entry information.
Select to trigger an alarm relay following zone activation. Select
the specific relay via the 'Relay' option.
Select to enable the unit to switch from Normal to Event recording
following alarm zone activation.
It is possible to play associated audio upon zone alarm activation.
This must be enabled to allow the unit to send an alarm
notification to an external destination i.e an RVRC reporting via
NetVu ObserVer.
