Dedicated Micros SD Advanced Installation And Operation Manual page 101

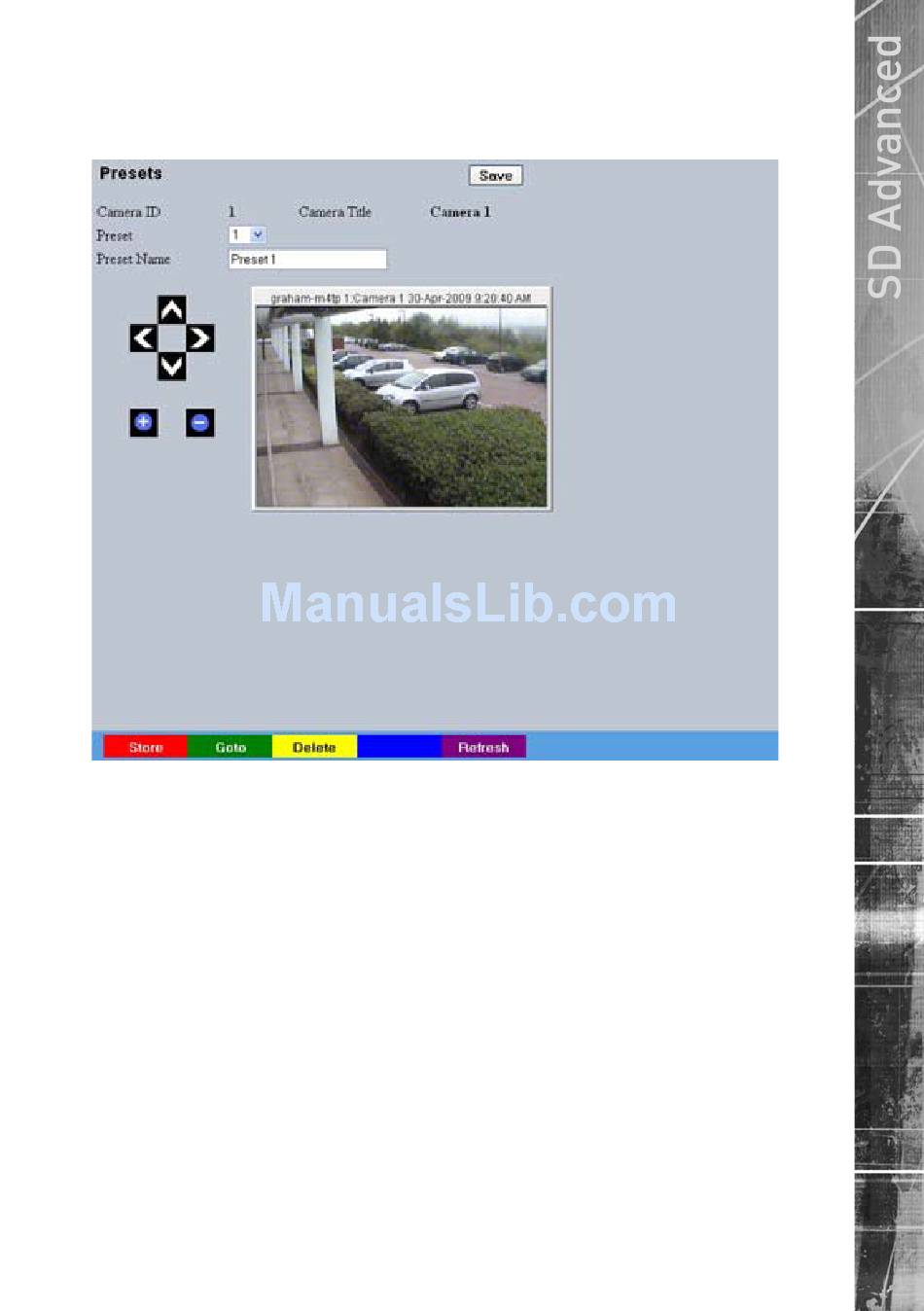

Presets
This menu allows Preset positions to be configured and stored for the Oracle Dome camera.
Camera ID
Camera Title
Preset
Preset Name
+
-
Navigation Buttons
Save (Grey)
Store Preset (Red)
Goto Preset (Green)
Delete Preset (Yellow)
Dedicated Micros ©2009
Selected camera channel.
Title assigned to the selected camera channel.
Select a preset number (1 to 100).
Enter a recognisable name for the Preset (up to a maximum of
25 characters).
Use the + button to zoom the camera view IN.
Use the - button to zoom the camera view OUT.
Use the four navigation buttons to position the camera view.
Select to save the entered preset title to the unit and the Oracle
Dome camera memory.
Select this button to store the current preset position to the Oracle
Dome camera's memory.
Select this button to immediately send the camera to the currently
stored preset position.
Select this button to delete the currently displayed preset
configuration.
101
