Dedicated Micros SD Advanced Installation And Operation Manual page 13

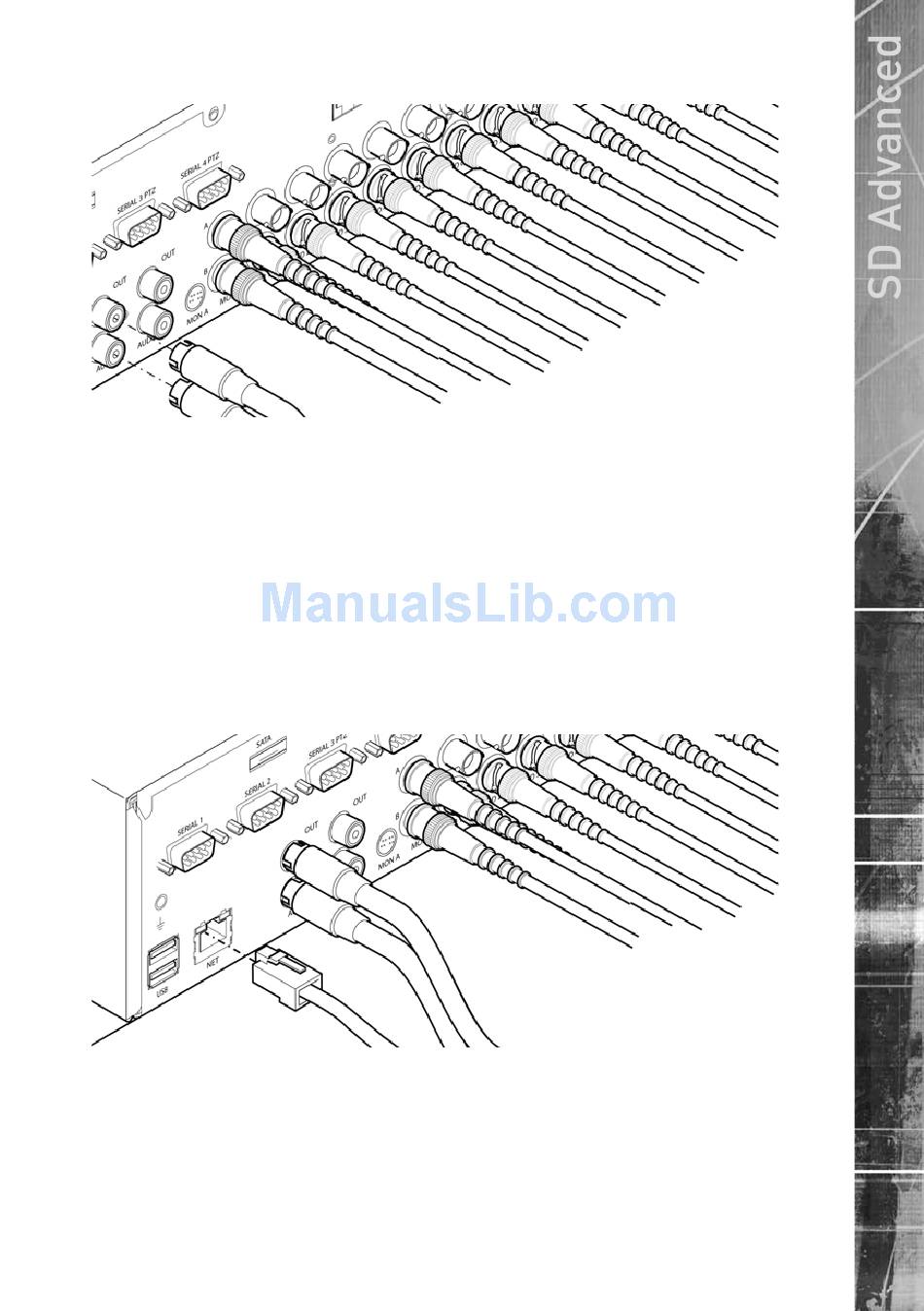

Step  Connecting Audio
The SD Advanced supports two channels of bi-directional audio, accessible through NetVu
ObserVer. Connect the audio equipment to the phono sockets AUDIO IN and AUDIO OUT. The
audio channel defaults to recording camera 1.
The following modes of operation are supported:
Note: The Audio output can be configured as a challenge output or as a replay output.
Step  Connecting to the Network
The unit supports a 10/100Mbps auto-detecting network port. Use a CAT5 cable to connect the unit
to the network.
By default the unit is configured for DHCP i.e. the unit is automatically allocated an IP address from
a network DHCP server.
Dedicated Micros ©2009
• Challenge – intruders from an RVRC.
• Listen – to local audio from a site at the RVRC.
• Record - local audio from a site with the video.
• Replay - all audio through a local Audio output (not supported when
Audio out is used as a challenge/PA source).
1
