Installing the SD Advanced Unit
This procedure shows the sixteen camera input version.

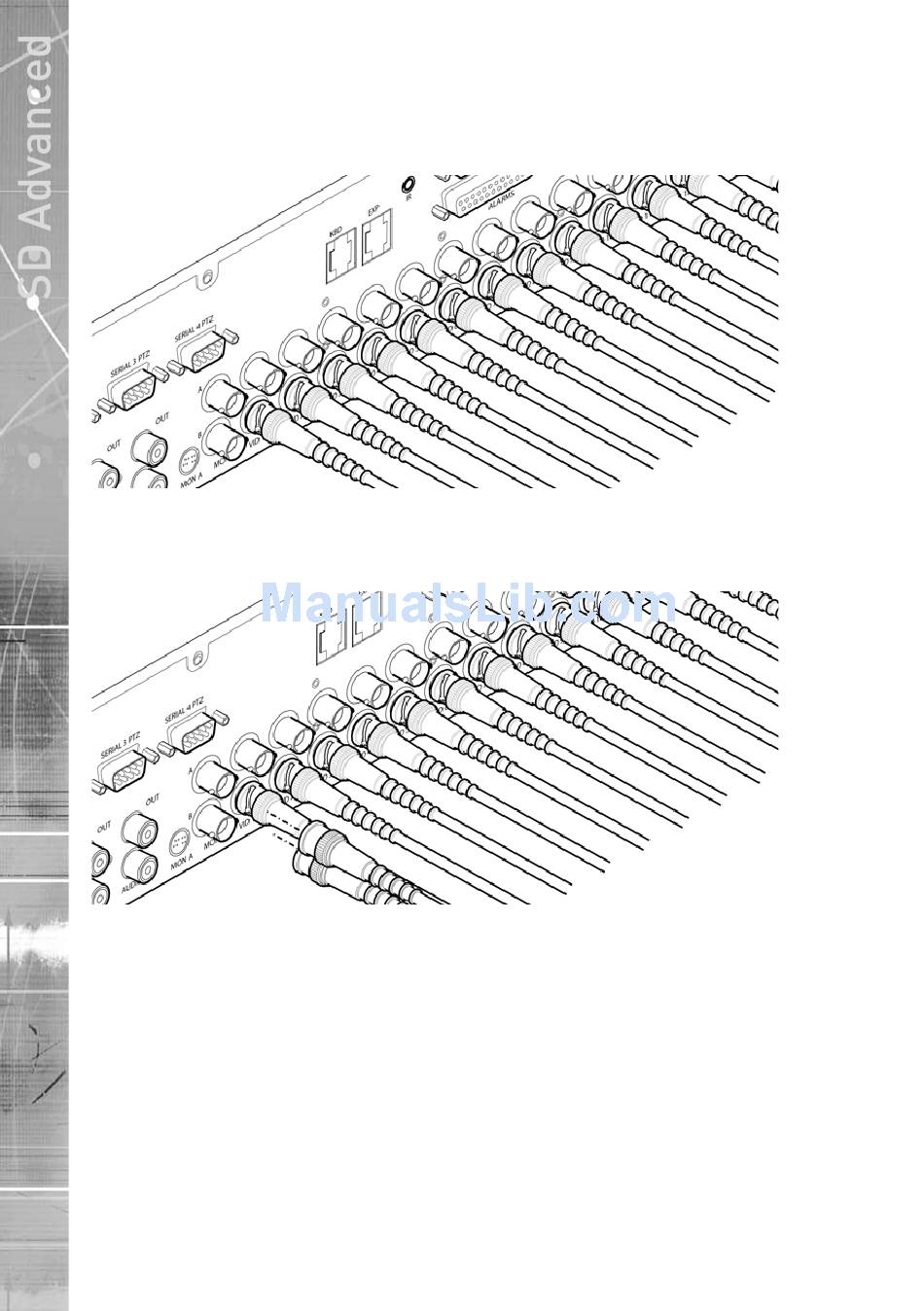

Step 1 Connecting Video
The SD Advanced supports up to 4, 8, 12, 16 or 32 connected Video Inputs (dependant on model)
via the 75Ω BNC connectors. Connect cameras to the video inputs, starting from input 1.
5.12
Step Monitor
The SD Advanced supports a main monitor via BNC 'A' and a spot monitor via BNC 'B'.
A main monitor can also be connected via the VGA socket. If required, both the BNC 'A' connector
and the VGA socket can be utilised simultaneously.
1
Dedicated Micros ©2009
