Profile Record

It is possible to set the unit recording configuration based on specific priorities. The Multi
recording feature offers the ability to set different recording rates, resolutions and compression
formats across unset, set and override modes for each individual camera. By varying the quality, bit
rate and file size of recorded images, the Multi
the unit to be greatly increased. The Profile record menu can be accessed in a Simple format or in
Advanced mode. The Advanced mode offering greater opportunities to dynamically edit individual
cameras recording capabilities.

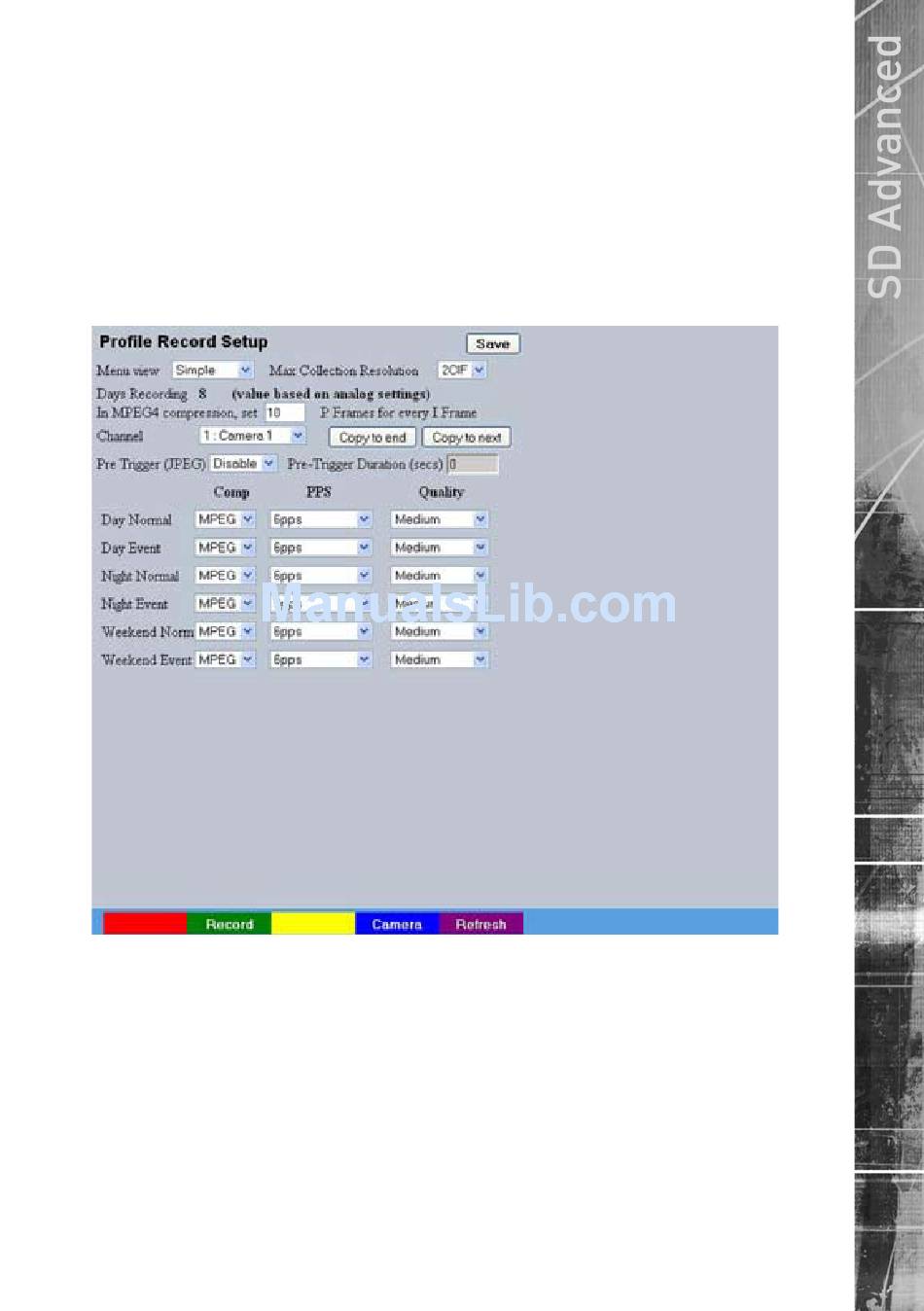

Simple Record

Menu View
Days Recording
MPEG4 Compression
Note: Taking a new I frame once per second when recording above 5pps is recomended.
When the unit rewinds and fast forwards through recorded video, it will access I
frames only (and skip P frames). Having too long an interval can make viewing the
images in these modes difficult to follow. Note however that too short an interval will
reduce the benefits of lower bit rate MPEG4 recording.
Dedicated Micros ©2009
Mode
function enables the recording capabilities of
Switch to the Advanced Profile Record menu.
Displays the record duration possible using the current
configuration.
If using MPEG4 recording, edit the number of P-Frames recorded
before a new I-Frame (keyframe) will be taken for all cameras.
Mode
