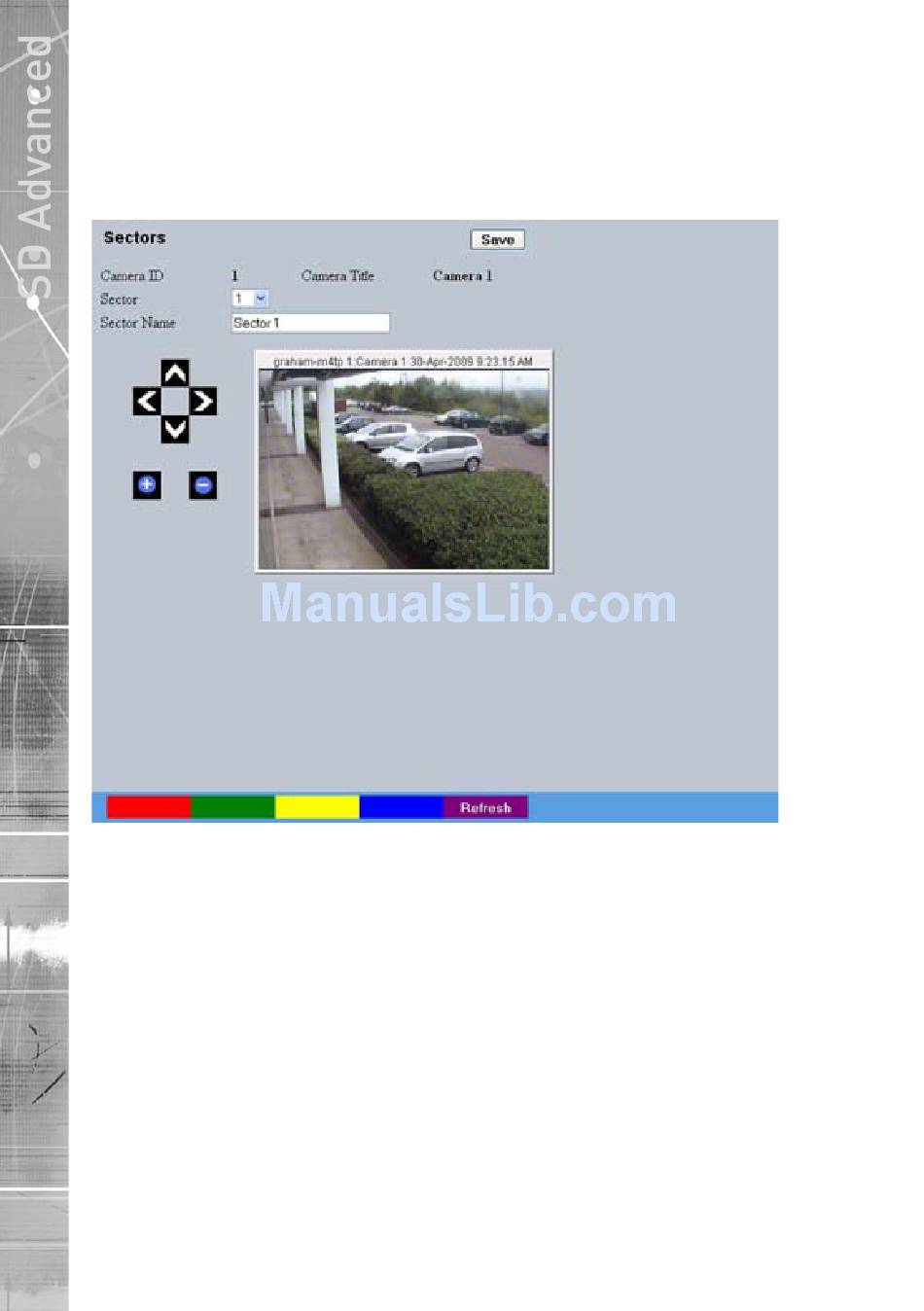

Sectors
This menu allows the Oracle Dome cameras 360 degree field of view to be split into 32 segments.
These segments can be named and set to accompany the displayed camera image via the OSD
Advanced menu. They can be used to aid an Operator in quickly identifying the current camera
position.
Camera ID
Camera Title
Sector
Sector Name
+
-
Navigation Buttons
10
Selected camera channel.
This is the title assigned to the selected camera channel.
Select from sector 1-32.
Enter a name for the selected sector (up to a maximum of
25 characters).
Use the + button to zoom the camera view IN.
Use the - button to zoom the camera view OUT.
Use the four navigation buttons to position the camera view.
