Using the optional Keyboards (DM/
KBC1 & DM/KBC2)
The unit can also be controlled using an optional Dedicated Micros keyboard. This is connected via
the KBD connector on the rear of the unit and provides the same control functions as the I.R Remote
Control. The following keyboards are supported:

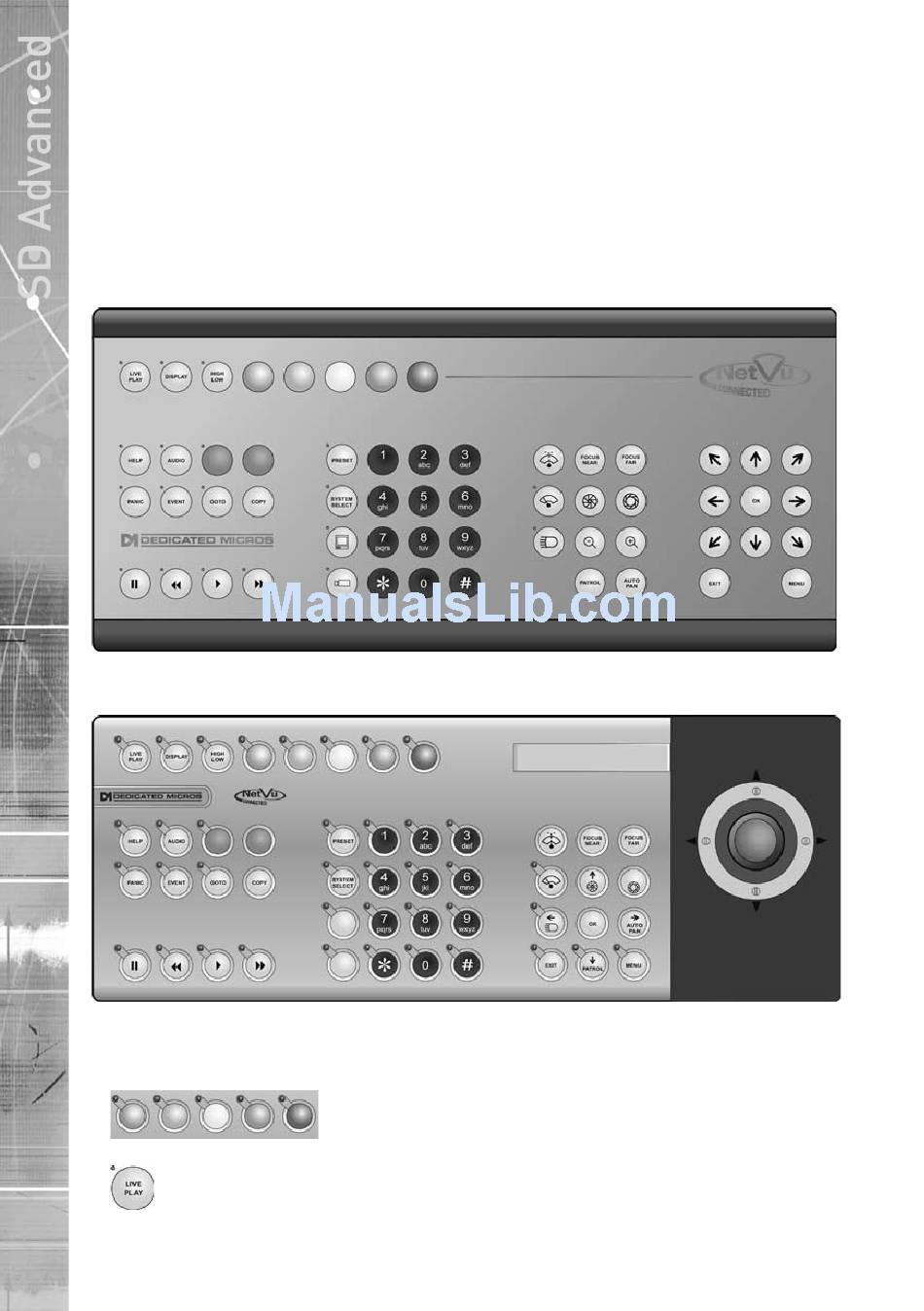

DM/KBC1 Keyboard

DM/KBC2 Keyboard

Note: Not all buttons detailed below are relevant for both models of keyboard.
Key
1
Function
Displays the Softkeys menu if not currently on screen.
Selects the colour coded item displayed on screen.
Switches from Playback to Live mode.
