CARBURETOR

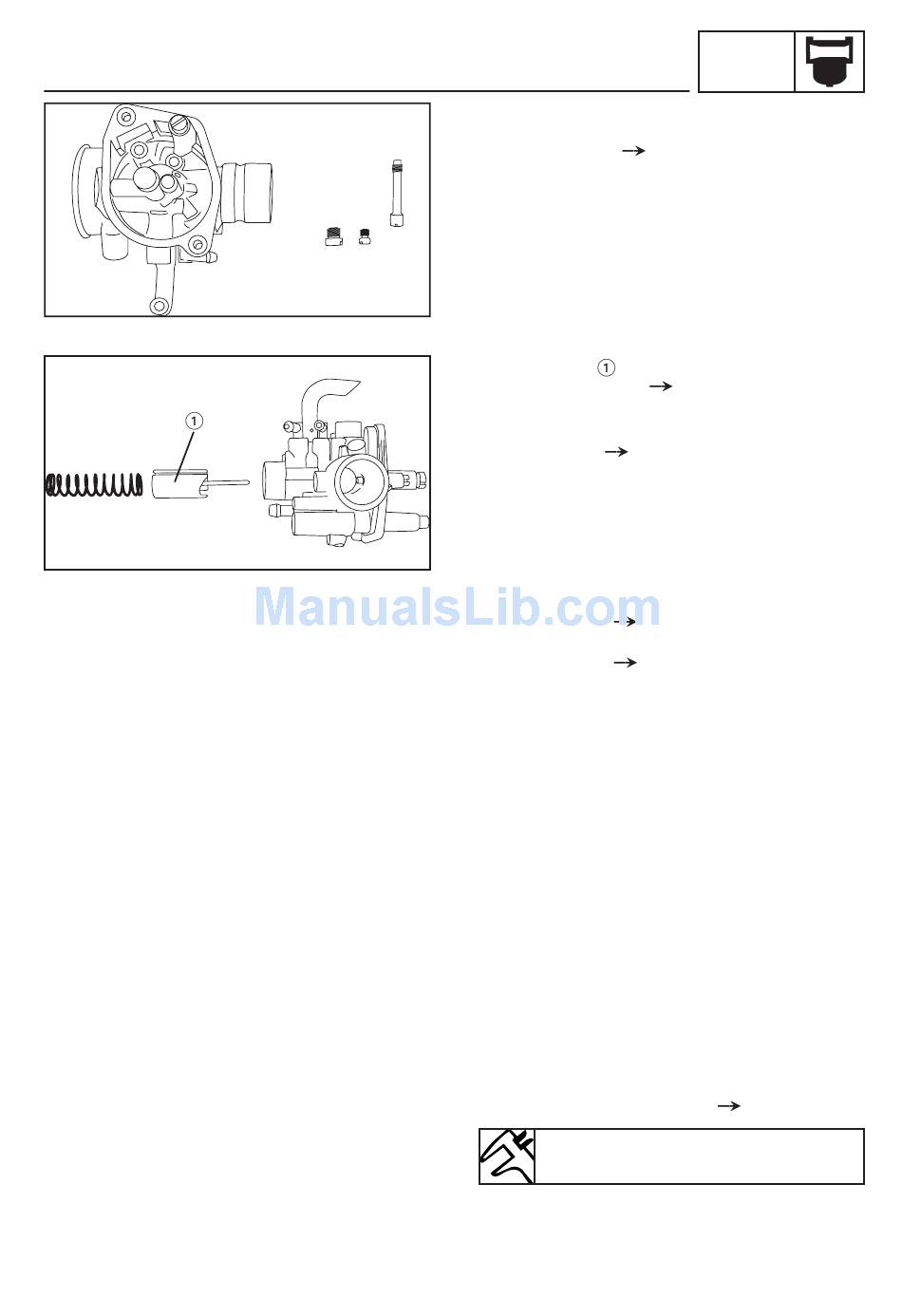

3. Inspect
• Jets
Wear / Dirt
4. Inspect:
• Plunger
• Wear/damage
5. Check:
• Free movement
Difficulty
Insert the plunger into the carburetor
body.
6. Inspect
• Float
Damaged
• O ring
Damaged

ASSEMBLY

1. Install:
• Follow the dismantling procedure inver-
sely

INSTALLATION

1. Install:
• Carburetor assembly
Apply the removal procedure inversely
ADJUSTING THE FUEL LEVEL
1. Measure:
• Float height
Outside specifications
Float height (FH) :
13 -14 mm
6-3
CARB
Change / Clean
Replace
Change
Change
Change
Service
