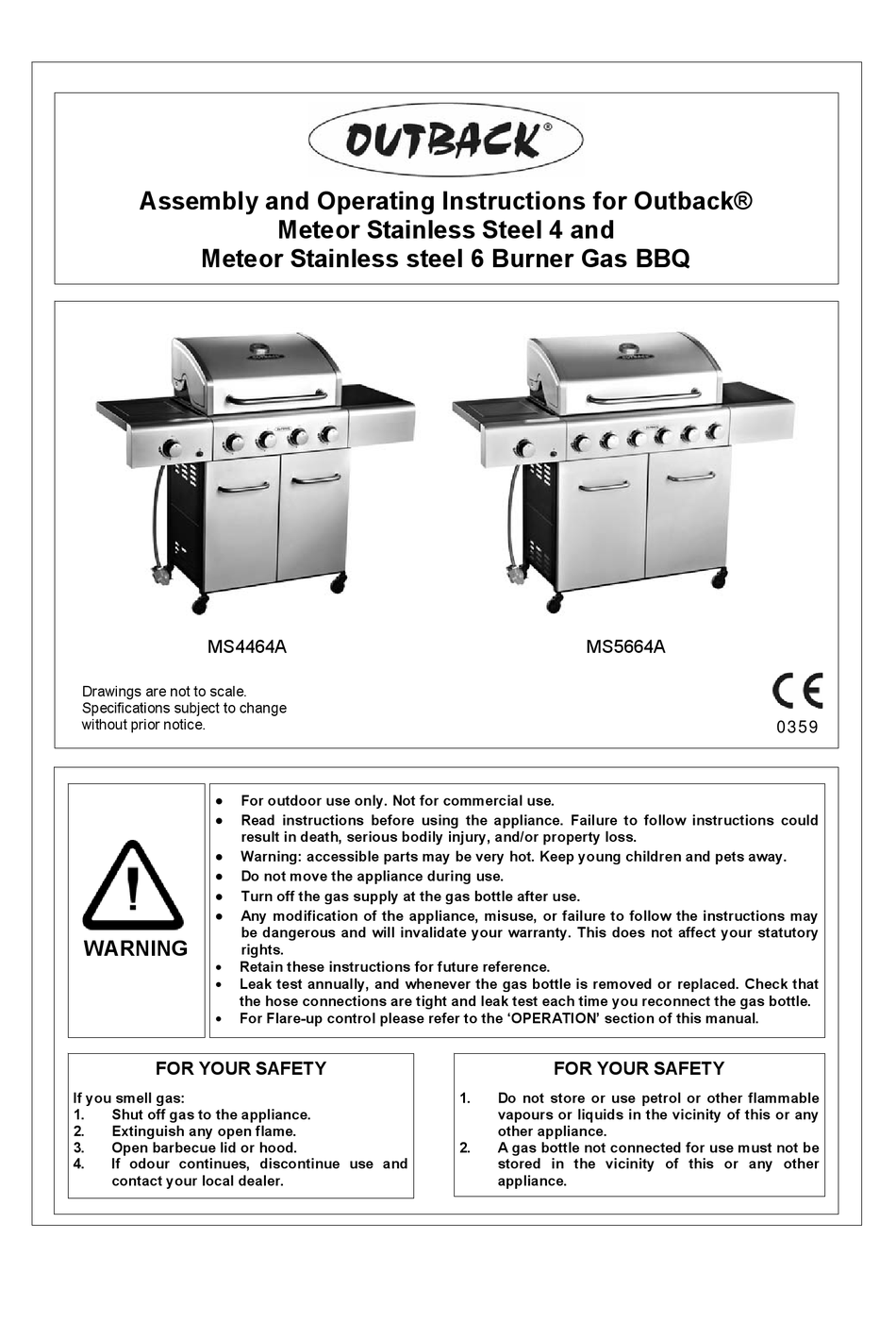

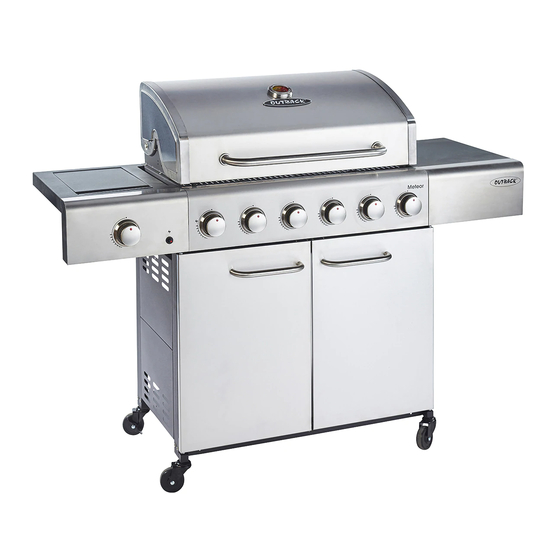

Assembly and Operating Instructions for Outback®
Meteor Stainless steel 6 Burner Gas BBQ
MS4464A
Drawings are not to scale.
Specifications subject to change
without prior notice.

For outdoor use only. Not for commercial use.

Read instructions before using the appliance. Failure to follow instructions could
result in death, serious bodily injury, and/or property loss.

Warning: accessible parts may be very hot. Keep young children and pets away.

Do not move the appliance during use.

Turn off the gas supply at the gas bottle after use.

Any modification of the appliance, misuse, or failure to follow the instructions may
be dangerous and will invalidate your warranty. This does not affect your statutory
WARNING
rights.
 Retain these instructions for future reference.
 Leak test annually, and whenever the gas bottle is removed or replaced. Check that
the hose connections are tight and leak test each time you reconnect the gas bottle.
 For Flare-up control please refer to the 'OPERATION' section of this manual.

FOR YOUR SAFETY

If you smell gas:

1.
Shut off gas to the appliance.
2.
Extinguish any open flame.
3.
Open barbecue lid or hood.
4.
If odour continues, discontinue use and
contact your local dealer.
Meteor Stainless Steel 4 and
MS5664A
FOR YOUR SAFETY
1.
Do not store or use petrol or other flammable
vapours or liquids in the vicinity of this or any
other appliance.
2.
A gas bottle not connected for use must not be
stored in the vicinity of this or any other
appliance.
0359

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Meteor Stainless Steel 4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Outback Meteor Stainless Steel 4

  • Page 1 Assembly and Operating Instructions for Outback® Meteor Stainless Steel 4 and Meteor Stainless steel 6 Burner Gas BBQ MS4464A MS5664A Drawings are not to scale. Specifications subject to change 0359 without prior notice.  For outdoor use only. Not for commercial use.
  • Page 2: Parts List

    Parts List Quantity varies according to model purchased. Specifications subject to change without prior notice. For more details on hardware, please see the corresponding ‘Hardware Reference Diagram’. Meteor Stainless Steel Meteor Stainless Steel CODE PART 4 Burner Gas BBQ 6 Burner Gas BBQ Hood (Pre-Assembled to Body) ...
  • Page 3 Parts Diagram: MS4464A Quantity varies according to model purchased. Specifications subject to change without prior notice. For more details on hardware, please see the corresponding ‘Hardware Reference Diagram’.
  • Page 4 Parts Diagram: MS5664A Quantity varies according to model purchased. Specifications subject to change without prior notice. For more details on hardware, please see the corresponding ‘Hardware Reference Diagram’.
  • Page 5 Hardware Reference Diagram Specifications subject to change without prior notice.
  • Page 6 Assembly IMPORTANT! TOOLS NEEDED FOR ASSEMBLY: Medium size flat blade or Phillips/Crosspoint screwdriver,  adjustable spanner or metric spanner set. Remove any internal component or packaging from the barbecue body.  Whilst every care is taken in the manufacture of this product, care must be taken during assembly in ...
  • Page 7 Unscrew the retaining bolts and retaining nuts from the Balance Weight (C25). Attach the balance weight to the bottom panel using the retaining bolts and retaining nuts as shown. Carefully turn the assembled cabinet up. Attach the Drip Tray Left Bracket (B8) to the left legs using ST4.0x10 Screws (D3x2pcs) as shown.
  • Page 8 Attach the Upper Support (C19) to the front legs using M6x15 Bolts (D2x4pcs). Attach one Door Handle (C20) onto the Left Door (C21) using M6x15 Bolts (D2x2pcs). Repeat above process for Right Door (C22).
  • Page 9 Fit the doors to the cabinet by depressing the spring pins and placing into the cabinet. Attach the Basket (C23) onto the right door as shown. Attach the Body Support A (C15) onto the left rear leg and right front leg using M4x10 Bolts (D7x4pcs), and attach the Body Support B (C16) onto the right rear leg and left front leg using M4x10 Bolts (D7x4pcs) as shown.
  • Page 10 Carefully place the Barbecue Body (B1) onto the body supports and fix it by using M6x40 Bolts (D1x8pcs) as shown. Attach the Side Shelf Panel (C4) onto Side Shelf (C3) using M6x15 Bolts (D2x2pcs) and M6 Nut (D5x2pcs) as shown.
  • Page 11 step1 step2 step3 step4 Attach the side shelf assembly to the barbecue body using ST4.0x10 Screw (D3x2pcs) and M6x15 Bolts (D2x4pcs) as shown. Attach Side Burner Shelf Panel (C2) onto Side Burner Shelf (C1) using M6x15 Bolts (D2x2pcs) and M6 Nut (D5x2pcs) as shown.
  • Page 12 step1 step2 step3 step4 Attach the side burner shelf assembly to the barbecue body using ST4.0x10 Screw (D3x2pcs) and M6x15 Bolts (D2x4pcs) as shown.    Attach the side burner valve and Knob Bezel (C11) onto side burner shelf using M4x10 Bolts (D7x2pcs) as shown.
  • Page 13 Unscrew the pre-assembled nut of the Ignition Button (C10). Insert the ignition button into the hole at the side burner shelf panel and secure with the pre-assembled nut. Connect the main electrode wire to the ignition button as shown.
  • Page 14 Attach the Side Burner Firebox (C8) into the side burner shelf using M4x10 Bolts (D7x4pcs) as shown.   Feed the tube of the Sear Burner (C13) through the guide hole in the side burner firebox, and fix it by using M5x15 Bolt (D6x2pcs) as shown. Make sure that the end of tube is set over the gas outlet of side burner valve.
  • Page 15 Main burner wire Side burner wire Attach Side Burner Electrode (C9) into the side burner firebox using a ST4.0x10 Screws F# (D4x1pc) as shown. Connect the electrode wire to the Ignition Button (C10). WARNING: BEFORE OPERATION, ENSURE BOTH MAIN BURNER AND SIDE BURNER WIRES ARE CONNECTED TO PUSH BUTTON IGNITOR.
  • Page 16 Place the Side Burner Grid (C5) onto the side burner shelf. NOTE: Only use cookware with a base diameter of between 150mm and 240mm on the side burner. Insert the Side Burner Drip Tray (C14) by sliding it underneath the side burner frame as shown. NOTE: Lift the drip tray up to pull it out.
  • Page 17 Unscrew retaining bolts from Drip Tray Handle (B11), and fix the drip tray handle onto Drip Tray (B10) using the retaining bolts. Insert the drip tray by sliding it underneath the barbecue body. MS5664A MS4464A Lay the Flame Tamers (B6) carefully into the body ensuring it lies level within the body. Lay the Cooking Grills (B7) into place.
  • Page 18 Step 1 Step 2 Step 3 Step 4 Attach the Warming Rack (A3) to the Hood (A1) and Barbecue Body (B1) as shown. Make sure that the swing legs fix to the body of the barbecue and the shorter fixed legs go through the holes in the hood.
  • Page 19: Leak Testing

    1. Maximum diameter or breadth is 320mm. 2. Maximum height (regulator included) is 700mm. PROCEED TO THE NEXT PAGE FOR INSTRUCTIONS ON OPERATION AND MAINTENANCE ALL JOINTS AND CONNECTIONS MUST NOW BE LEAK TESTED BEFORE USING THE BARBECUE. Leak test annually, and whenever the gas bottle is removed or replaced. Leak Testing Always perform a leak test in a well-ventilated area.
  • Page 20: Important Information

    Important Information leak test. This is the only safe and sure way to detect any gas leaking from joints and connections of the barbecue after assembly. Please read these instructions carefully before assembly and use of your barbecue.  Leak test annually, and whenever the gas bottle is removed or replaced.
  • Page 21 Installation Preparation Before Cooking To prevent foods from sticking to the cooking surface, please use a long handled brush to Selecting a Location apply a light coat of cooking or vegetable oil This barbecue is for outdoor use only and before each barbecuing session.
  • Page 22 barbecue body and place near rightmost time for the barbecue to regain its temperature burner porthole. and complete the cooking. Use the temperature  Push and turn the rightmost control knob gauge to monitor the heat of the barbecue. anti-clockwise to the high position, taking If the internal heat becomes too high, turn the care to protect yourself from the flames.
  • Page 23: Care And Maintenance

    may result in a fat fire, which may cause injury local stockist. and could seriously damage the barbecue. Even when your barbecue is covered for its protection, it must be inspected on a regular In the event of a fat fire: basis as damp or condensation can form which If safe to do so, turn all control knobs to the ...
  • Page 24 particles, using a plastic or wooden scraper if Storage necessary. Ensure the barbecue is properly cooled before covering or storing. Store your barbecue in a Failure to keep it clean, and excessive build up cool dry place. can result in a fat fire. This can be hazardous and severely damage the barbecue.
  • Page 25 Technical Specifications NOTES: Heat Injector Burners Approval Input Size Consumption Meteor Stainless Steel 4 0359 12.96 Butane: 943g/hr 0.89mm Burner Gas 359BR665 Propane: 926g/hr BBQ / MS4464A Meteor Stainless Steel 6 0359 17.28 Butane: 1258g/hr 0.84mm Burner Gas 359BR665 Propane: 1235g/hr BBQ / MS5664A Side...
  • Page 26: Troubleshooting

    Troubleshooting Problem Possible Cause Solution Burner will not light using LP gas bottle is empty Replace with full bottle the ignition system Faulty regulator Have regulator checked or replaced Obstructions in burner Clean burner Obstructions in gas jets or gas hose Clean jets and gas hose Electrode or ignition button wire is loose Reconnect wire...
  • Page 27 Other parts are warranted for a period of one (1) year from the date of purchase.  OUTBACK® will, within above periods, supply replacements for defective parts free of charge provided that: The product has not been used for trade, professional or hire purposes.
