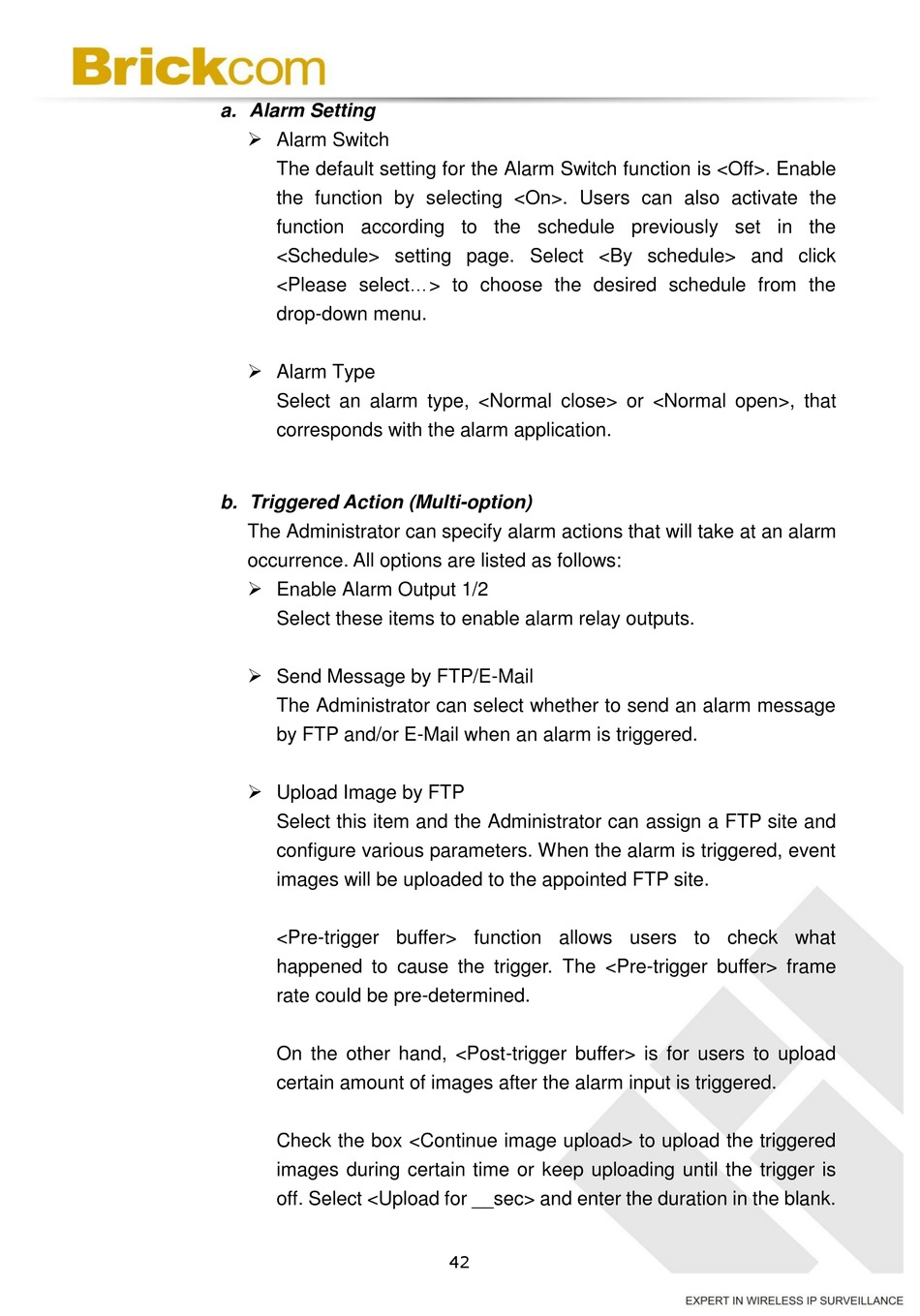

a. Alarm Setting
 Alarm Switch
The default setting for the Alarm Switch function is <Off>. Enable
the function by selecting <On>. Users can also activate the
function according to the schedule previously set in the
<Schedule> setting page. Select <By schedule> and click
<Please select...> to choose the desired schedule from the
drop-down menu.
 Alarm Type
Select an alarm type, <Normal close> or <Normal open>, that
corresponds with the alarm application.
b. Triggered Action (Multi-option)
The Administrator can specify alarm actions that will take at an alarm
occurrence. All options are listed as follows:
 Enable Alarm Output 1/2
Select these items to enable alarm relay outputs.
 Send Message by FTP/E-Mail
The Administrator can select whether to send an alarm message
by FTP and/or E-Mail when an alarm is triggered.
 Upload Image by FTP
Select this item and the Administrator can assign a FTP site and
configure various parameters. When the alarm is triggered, event
images will be uploaded to the appointed FTP site.
<Pre-trigger buffer> function allows users to check what
happened to cause the trigger. The <Pre-trigger buffer> frame
rate could be pre-determined.
On the other hand, <Post-trigger buffer> is for users to upload
certain amount of images after the alarm input is triggered.
Check the box <Continue image upload> to upload the triggered
images during certain time or keep uploading until the trigger is
off. Select <Upload for __sec> and enter the duration in the blank.
