- Page 1 Hardware User’s Manual Megapixel Day & Night Outdoor Bullet Network Camera Quality Service Group Outdoor Bullet V2 Series...
- Page 2 1. Separate User Manual into HW and SW. 2. Merge OB-100A V2 series /OB-130N-series into this User Manual. Product name: Network Camera (Outdoor Bullet V2 series) Release Date: 2011/09 Manual Revision: V3.0 Web site: www.brickcom.com technical@brickcom.com Email: info@brickcom.com © 2011 Brickcom Corporation. All Rights Reserved...
-
Page 3: Table Of Contents
Table of Contents Before You Use This Product ..................1 Regulatory Information ....................2 Plaque signalétique du produit final ..............4 Chapter 1 - Package Contents ..................6 Chapter 2 - Outdoor Bullet Network Camera Overview ..........8 Chapter 3 - Device Appearance Description ............... 9 Chapter 4 - Installation .................... -
Page 4: Before You Use This Product
Before You Use This Product In many countries, there are laws prohibiting or restricting the use of surveillance devices. This Network Camera is a high-performance, web-ready camera which can be part of a flexible surveillance system. It is the user’s responsibility to ensure that the operation of this camera is legal before installing this unit for its intended use. -
Page 5: Regulatory Information
Regulatory Information Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. - Page 6 Industry Canada statement: Ce dispositif est conforme à la norme CNR-210 d'Industrie Canada applicable aux appareils radio exempts de licence. Son fonctionnement est sujet aux deux conditions suivantes: (1) le dispositif ne doit pas produire de brouillage préjudiciable, et (2) ce dispositif doit accepter tout brouillage reçu, y compris un brouillage susceptible de provoquer un fonctionnement indésirable.
-
Page 7: Plaque Signalétique Du Produit Final
Ce dispositif a ete concu pour fonctionner avec une antenne ayant un gain maximal de dB [2.02]. Une antenne a gain plus eleve est strictement interdite par les reglements d'Industrie Canada. L'impedance d'antenne requise est de 50 ohms. Cet appareil est conçu uniquement pour les intégrateurs OEM dans les conditions suivantes: (Pour utilisation de dispositif module) 1) L'antenne doit être installée de telle sorte qu'une distance de 20 cm est respectée entre l'antenne et les utilisateurs, et... - Page 8 Manuel d'information à l'utilisateur final L'intégrateur OEM doit être conscient de ne pas fournir des informations à l'utilisateur final quant à la façon d'installer ou de supprimer ce module RF dans le manuel de l'utilisateur du produit final qui intègre ce module. Le manuel de l'utilisateur final doit inclure toutes les informations réglementaires requises et avertissements comme indiqué...
-
Page 9: Chapter 1 - Package Contents
Chapter 1 - Package Contents Please check to make sure the product package contains all the accessories listed below. A. Camera Package Contents a. Network Camera b. Shielding Cover (Outdoor Bullet V2 Series) c. Screw bag d. Product CD e. Warranty Card / Easy Installation f. - Page 10 B. Wi-Fi Antenna Package contents (Optional) Refer to the installation guide included in the package when installing the Wi-Fi antenna a. Wi-Fi Dual Band Antenna b. Extension Cable c. Surge Arrestor Kit d. Mount Kit C. Wi-Fi Antenna Package contents (Optional) Refer to the installation guide included in the package when installing the 3G antenna a.
-
Page 11: Chapter 2 - Outdoor Bullet Network Camera Overview

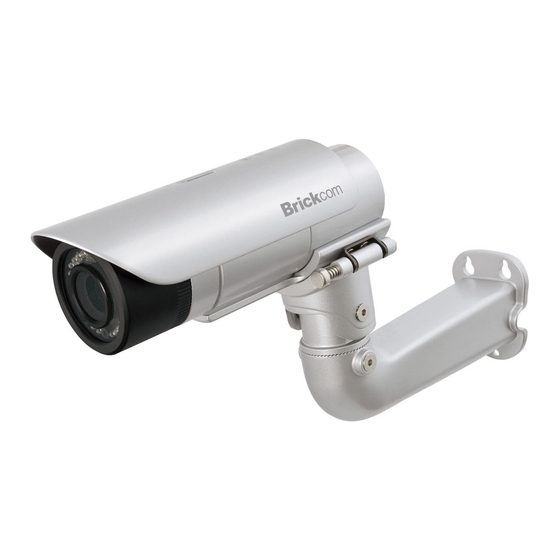

Chapter 2 - Outdoor Bullet Network Camera Overview The Brickcom Outdoor Bullet SERIES is an outdoor bullet network camera. It adopts a megapixel sensor which allows the camera to deliver extremely clear and detailed images that CCTV cameras cannot offer. To optimize use of the megapixel resolution, the Outdoor Bullet SERIES uses efficient H.264/ MJPEG/ MPEG-4 codec... -
Page 12: Chapter 3 - Device Appearance Description
Chapter 3 - Device Appearance Description < Front Panel > < Rear Panel > < Top >... - Page 13 < Bottom > < Side > Micro-SD/SDHC Card Slot 3G SIM Card Slot...
- Page 14 < Extension I/O Terminal Block > The Network Camera provides an extension I/O terminal block which is used to connect the camera with external input/output devices. The pin definitions are listed as below. Function Power + 4.5V Digital Output Digital Input Ground Function RS485+...
- Page 15 < Hardware Reset > The Reset Button can be used to reboot the camera or restore it to factory default settings. If the camera experiences a problem, rebooting the camera may correct the problem. If the problem remains, please restore the camera to factory default settings and reinstall the software.
-
Page 16: Chapter 4 - Installation
Chapter 4 - Installation 4.1 Hardware Installation WARNING - Do not mount the camera on a soft material. The camera may fall and be damaged. A. Micro-SD/SDHC Card and 3G SIM Card Installation a. Remove the Lens cover from the Bullet Camera. b. - Page 17 B. Wall Installation Using the Optional Bracket a. Using the Bracket plate as a guide, drill three holes into the wall and hammer the supplied plastic anchors into the three holes. Use a screwdriver and the supplied screws to secure the plate to the wall. b.
- Page 18 d. Connect (1) the POE cable; (2) DIDO, Audio In/Out, RS485 cable; and (3) Antenna cable with the camera. Refer to step 3 for more details installation information. e. Secure the two screws on the wall mount bracket. f. Place the wall mount bracket on the plate and attach it using the supplied screws.
- Page 19 C. DIDO, Audio In/Out, RS485, and Antenna Connection a. PoE Connection For the Power over Ethernet connection, construct the PoE cable using the pin definitions of the RJ45 connector below and refer to step 5 for instructions on how to install the Water Proof Connector. Once the PoE cable has been constructed using the waterproof connector, pass the RJ-45 cable from the camera through the bracket and connect it to the PoE cable.
- Page 20 b. DIDO, Audio In/Out, RS485 Cable Connection For the DIDO, Audio In/Out and RS485 cable connection, construct an Ethernet cable using the pin definitions of the RJ-45 connector below and refer to step 4 for instructions on how to install the Water Proof Connector.
- Page 21 c. WiFi or 3G Antenna Extension Cable Connection Pass the Antenna extension cable (1) through and bracket and connect it to the Antenna connector (2) at the bottom of the camera. d. Water Proof Connector Refer to the installation guide included in the package when installing the Water Proof connector.
-
Page 22: Camera Connection
4.2 Camera Connection The Outdoor Bullet Series is PoE compliant, so there are two options for connecting the camera to a power and Ethernet source. The camera can either be connected to a PoE-enabled switch or a non-PoE switch. a. If using a PoE-enabled switch: i. - Page 23 c. If using a PoE injector as power input (For GOB/WOB Series): i. Use a standard RJ-45 cable to connect the camera to a PoE Injector. ii. Use a standard power cable to connect the PoE Injector to a power outlet.
-
Page 24: System Requirements
4.3 System Requirements Operating System: Microsoft Windows XP Home Edition SP2 Microsoft Windows XP Professional SP2 Computer: IBM PC/AT Compatible CPU: Pentium 3GHz or faster Memory: 1024 MB or more Monitor: 1024 x 768 pixels or more, 24-bit True color or better Network Interface: 10/100Mbps Network interface card must be installed Web Browser:... -
Page 25: Software Installation
A. Insert the Installation CD into the CD-ROM driver. Run Auto-Run Tool directly from the CD-ROM to start the installation. When installing the Brickcom software kit for the first time, select a desired language for the interface. The available languages are listed in the scroll box. Click <Install>... - Page 26 B. In the Install Shield Wizard dialog box, click <Next> to continue. C. Read the End-User License Agreement and check the option “I accept the terms of the license agreement”. Click <Next> to continue.
- Page 27 D. Select either “Complete” setup or “Custom” setup to install the system. a. If COMPLETE SETUP is selected: i. All program features will be installed into the default directory. Check the option “Complete” and then click <Next>. ii. Click <Change> to change the appointed folder where installation and program files will be stored.
- Page 28 iii. Select to create shortcuts. Click <Next> to continue. iv. The installation information will be displayed. Click <Next> to continue.
- Page 29 v. To launch EasyConfig or PC-NVR Standard, select the application and click <Finish>. When launching the PC-NVR program, please refer to the PC-NVR user manual. b. If CUSTOM SETUP is selected: i. This option is recommended for advanced users. It can be used to install the system to a preferred directory or to select specific program feature(s).
- Page 30 iii. Select the features to install. Click <Next> to continue. iv. Click <Change> to change the appointed folder where installation and program files will be stored. Click <Next> to continue.
- Page 31 v. Select programs to create shortcuts. Click <Next> to continue. vi. The installation information will be displayed. Click <Next> to continue.
- Page 32 E. To launch EasyConfig or PC-NVR Standard, select the application and click <Finish>. When launching the PC-NVR program, please refer to the PC-NVR user manual.
-
Page 33: Easyconfig
If Custom Setup type was used in the software installation and an EasyConfig icon was not installed on the desktop, the program will be installed under C:\Program Files\Brickcom\EasyConfig unless the program was saved to a preferred directory. A. Click <Start> to continue. The program will automatically search for the camera in the intranet. - Page 35 B. Select either “Simple Mode” or “Professional Mode” to obtain the camera’s IP settings. If “Simple Mode” is selected, EasyConfig will set up the connection automatically. If “Professional Mode” is selected, the user will need to configure the IP settings manually.
- Page 36 C. There may be many cameras in the local network. Differentiate the cameras using their UPnP name. Double click on the camera from the survey list to connect. D. For configuring the IP address settings, select either <Settings remain the same>, <Automatically obtain an IP Address (DHCP)>...
- Page 37 If <Set IP Address configuration manually> is selected, the following pages will be displayed.
- Page 38 Otherwise, this page will not be shown. *If desired, click <Skip> to skip this setting. EasyLinkTM is a unique Brickcom function which allows users to assign a unique EasyLink name to their network camera’s IP address. There is no...
- Page 39 F. When the IP address settings have been configured, the screen will either display a successful or failed connection message. If the connection failed, either try again or quit the installation. a. If “DHCP IP address settings” was selected, the failure page will be displayed as below: b.
- Page 40 c. If the connection was successful, the user will see the message: “Congratulations. The installation of the camera is complete.” When this window is displayed, click <PC-NVR> to start the PC-NVR program, <Live View> to view the live video from the connected IP camera, or <X>...
