B. Install Camera with Mount Kit
1) Make a cable entry hole on the wall/ ceiling to insert the cable(s).
2) Attach the waterproof rubber to the selected mount kit.
3) Route the Ethernet and I/O cables through the top holder and join
the selected mount kit with supplied screws and washers. Then
adjust the Waterproof Rubber over the joint.
4) Connect the Ethernet and I/O cables and hook the safety wired to
the camera.
5) Attach the camera to the top cover with the supplied screw and
washers.

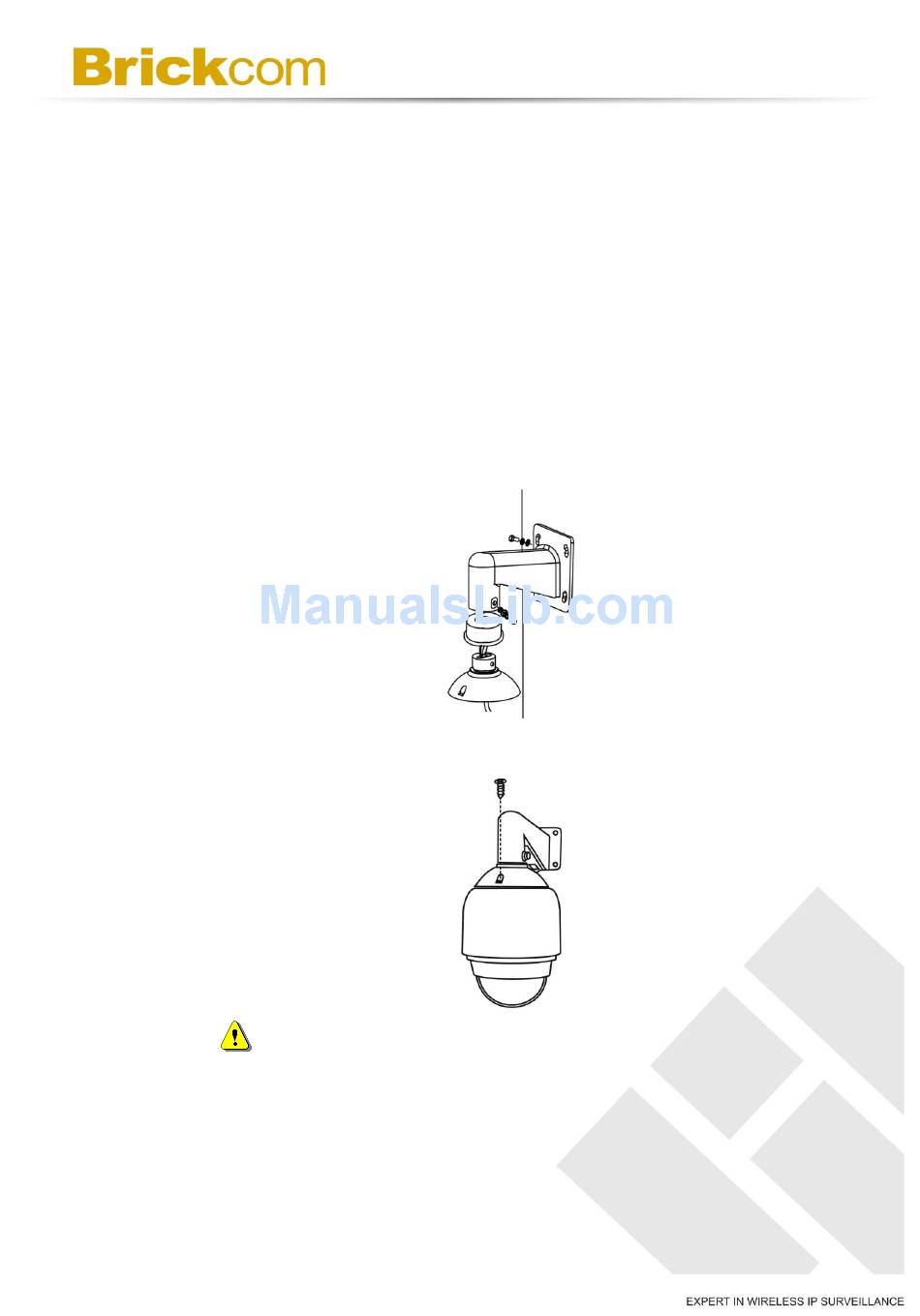

Wall Mounting: Pendant Mount (mounting example)
NOTE - Refer to the mounting instruction in the "Speed Dome
Mounting Accessories Installation Guide" for more details.
