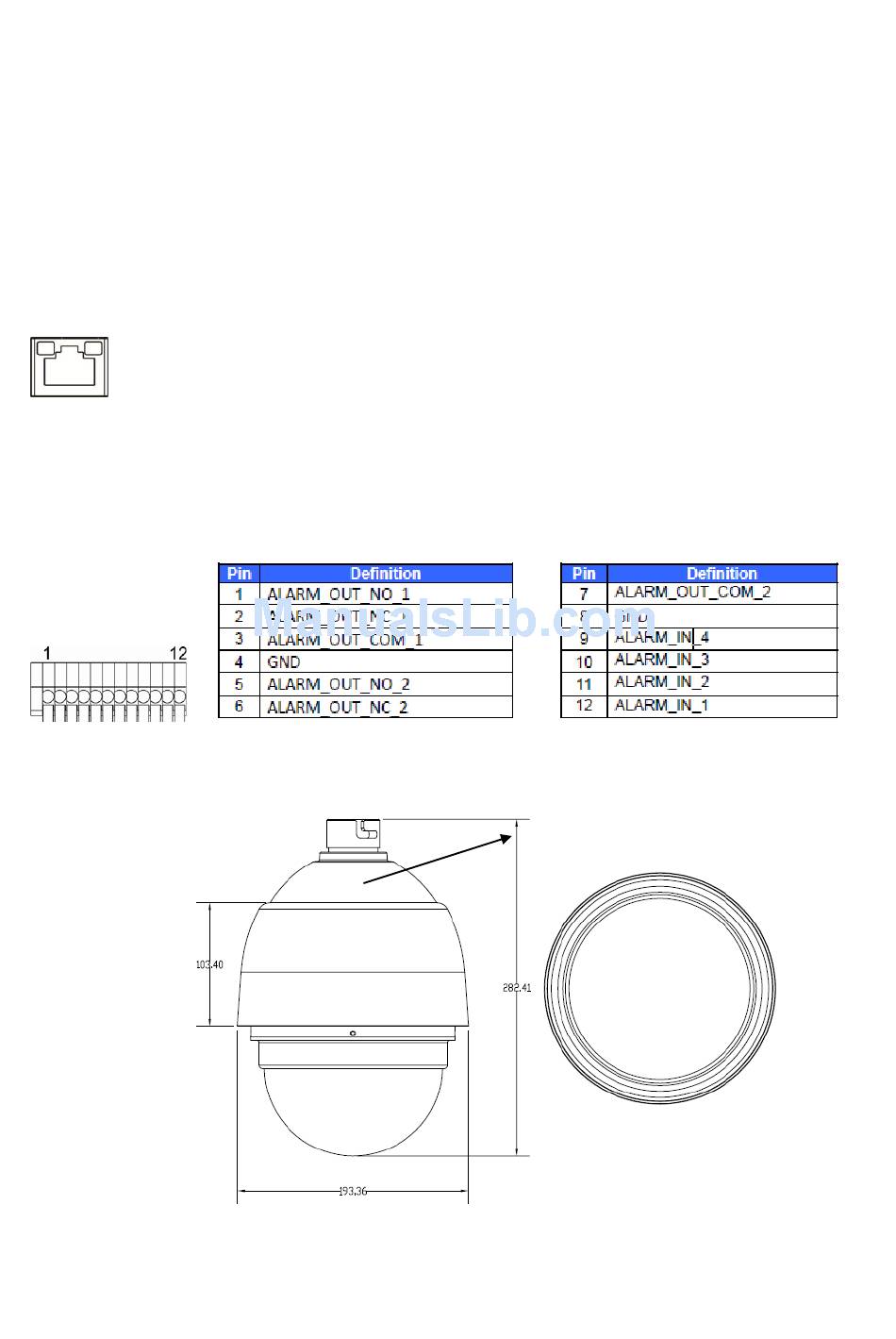

< Ethernet Cable>
Use of Category 5 Ethernet cable is recommended for network connection; to have best
transmission quality, cable length shall not exceed 100 meters. Connect one end of the
Ethernet cable to the RJ-45 connector of the Network Speed Dome Camera, and the
other end of the cable to the network switch or PC.
Check the status of the link indicator and activity indicator LEDs. If the LEDs are unlit,
please check LAN connection.
Green Link Light indicates good network connection.
Orange Activity Light flashes for network activity indication.
<Alarm I/O Connector>
When cabling, please refer to the table below for pin definition of Alarm I/O setting.
Please make sure the alarm connections are properly.
< Dimension >
Mount Holder
7
