Table of Contents Before You Use This Product ..................1 FCC Warning ........................2 Regulatory Information ....................3 Chapter 1 - Package Contents ..................4 Chapter 2 - Megapixel Day & Night Bullet Network Camera Overview ..... 5 Chapter 3 - Device Appearance Description ............... 6 Chapter 4 - LED Behavior .....................
Before You Use This Product In many countries, there are laws prohibiting or restricting the use of surveillance devices. This Network Camera is a high-performance, web-ready camera which can be part of a flexible surveillance system. It is the user’s responsibility to ensure that the operation of this camera is legal before installing this unit for its intended use.
FCC Warning This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operations.
Regulatory Information Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
Chapter 1 - Package Contents 1. Network Camera 2. Screw Bag 3. Power Adapter(*) 4. Product CD 5. POE Injector(*) NOTE - (*) These are optional features.

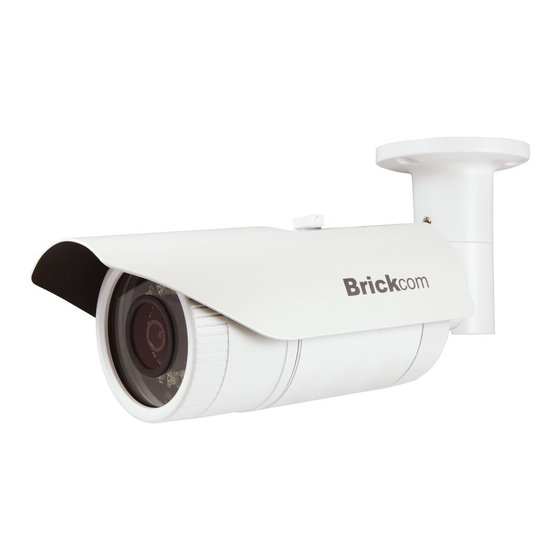

OB-E200Nf the perfect outdoor camera for neighborhood, school campus, and parking lot surveillance. The OB-E200Af / OB-E200Nf supports Power over Ethernet and enables the camera to use the same cable for power and data transmission, eliminating the need to install an external power supply.
Chapter 4 - LED Behavior Function LED Behavior Description Ethernet Link Continuous illumination (Green) Ethernet Connected Data Link Blinking (Orange) Data Transmitting...
Chapter 5 - Hardware Reset Reset Button The Reset Button can be used to restore the camera to factory default settings. If the camera experiences a problem, rebooting the camera may correct the problem. If the problem remains, please restore the camera to factory default settings and reinstall the software.
Chapter 6 - System Requirements Operating System: Microsoft Windows 7, Vista, XP, 2000 CPU: Pentium 3GHz or faster Network Interface: 10/100Mbps Network interface card must be installed Web Browser: Microsoft Internet Explorer 6/7 or above, Firefox, Google Chrome, Safari...
Chapter 7 - Installation 7.1 Hardware Installation WARNING - Do not mount the camera on a soft material. The camera may fall and be damaged. A. Wall Installation (1) Drill three holes into the wall. (2) Hammer the supplied plastic anchors into the three holes.
Page 13
b. If using a non-PoE switch: Use a standard RJ-45 cable to connect the camera to a PoE Injector. Use a standard RJ-45 cable to connect the PoE Injector to the non-PoE switch. Use a standard power cable to connect the PoE Injector to a power outlet. c.
A. Insert the Installation CD into the CD-ROM driver. Run Auto-Run Tool directly from the CD-ROM to start the installation. When installing the Brickcom software kit for the first time, select a desired language for the interface. The available languages are listed in the scroll box.
Page 15
B. In the Install Shield Wizard dialog box, click <Next> to continue. C. Read the End-User License Agreement and check the option “I accept the terms of the license agreement”. Click <Next> to continue.
Page 16
D. Click <Change> to change the appointed folder where installation and program files will be stored. Click <Next> to continue. E. Select to create shortcuts. Click <Next> to continue.
Select the application and click <Finish>. When launching the PC-NVR program, please refer to the PC-NVR user manual. 7.4 Launch EasyConfig Users can search cameras by EasyConfig and configure the settings below: IP address configuration Easylink configuration Live View &...
Page 18
Files\Brickcom\EasyConfig”. NOTE - Check <Skip the hardware installation guide> to skip checking the hardware connection. To check the hardware installation settings, do not check the option box. 1. Click <Start> to continue. The program will automatically search for the camera in...
Page 20
2. Select either <Simple Mode> or <Professional Mode> to obtain the camera’s IP settings. If <Simple Mode> is selected, EasyConfig will set up the connection automatically. If <Professional Mode> is selected, the user will need to configure the IP settings manually. 3.
Page 21
4. Enter the username and password of the camera. For the first-time use, the default username and password are “admin/admin.” 5. For configuring the IP address settings, select either <Settings remain the same>, <Automatically obtain an IP Address (DHCP)> or <Set IP Address configuration manually>.
Page 22
6. If <Set IP Address configuration manually> is selected, the following pages will be displayed.
Page 23
Otherwise, this window will not be shown. *If desired, click <Skip> to skip this setting. EasyLink is a unique Brickcom function which allows users to assign a unique EasyLink name to map to the network camera’s IP address. Users can log onto [uniqueEasyLinkname].mybrickcom.com to view the camera’s web GUI and Live View.
Page 24
8. When the IP address settings have been configured, the screen will either display a successful or failed connection message. If the connection failed, either try again or quit the installation. If “DHCP IP address settings” was selected, the failure window will be displayed as below.
Page 25
If the connection was successful, the user will see the message: <Congratulations. The installation of the camera is complete.> 9. When this window is displayed, click <PC-NVR> to start the BRC64 program, <Live View> to view the live video from the connected IP camera, or <X> in the top right corner of the screen to close the installation window.
Chapter 8 - Accessing the Network Camera 8.1 Check Network Settings The camera can be connected either before or immediately after the software installation. The Administrator should complete the network settings on the configuration page, including entering the correct Subnet Mask, Default Gateway, primary DNS and Secondary DNS.
8.3 Viewing Video Streams with Internet Explorer Step1. Check the Video Stream Settings On the camera's web UI, please go to Configuration → Camera/Video/Audio → Video, and you will find the stream settings. Please select the desired setting from the drop-down menus to meet the application requirements.
Chapter 9 - Viewing Video Streams with BRC64 Step1. Launch BRC64 Double click on the Windows desktop to launch BRC64, or click it on the program menu. Please make sure the version of BRC64 is v1.2.4.144 or above. Step2. Search for the Camera Click on the control panel to start searching for the cameras on the LAN.
Page 29
Step3. View Stream For each video stream you want to view, please select the camera item on the control panel. Then, drag and drop it to the video matrix for live view.
