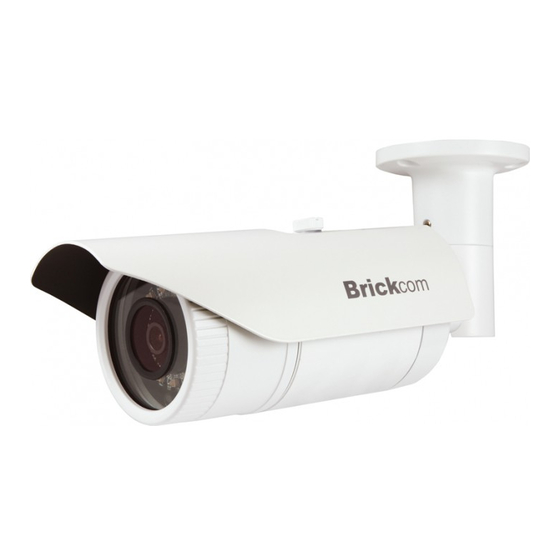

- Page 1 Easy Installation Guide Megapixel Day & Night Bullet Network Camera OB-500Af V5 Series OB-300Nf V5 Series OB-502Ae V5 Series OB-302Ne V5 Series English...
- Page 2 Step 1.Package Contents Please check to make sure the product package contains all the accessories listed below. a. Network Camera b. Screw bag c. Warranty Card d. Dry Bag e. Power Adapter(Optional) f. Product CD g. POE (Optional)
- Page 3 Step 2.Hardware Installation WARNING - Do not mount the camera on a soft material. The camera may fall and be damaged. A. Wall Installation a. Drill three holes into the wall and (2) hammer the supplied plastic anchors into the three holes. (3) Use a screwdriver and the supplied screws to secure the plate to the wall.
- Page 4 Step 3. PoE Connection For the Power over Ethernet connection, construct the PoE cable using the pin definitions of the RJ45 connector below and refer to step 5 for instructions on how to install the Water Proof Connector. Once the PoE cable has been constructed using the waterproof connector, pass the RJ-45 cable from the camera through the bracket and connect it to the PoE cable.
- Page 5 b. If using a non-PoE switch: i. Use a standard RJ-45 cable to connect the camera to a PoE Injector. ii. Use a standard RJ-45 cable to connect the PoE Injector to the non-PoE switch. iii. Use a standard power cable to connect the PoE Injector to a power outlet. If using the DC12V for the power Supply.
- Page 6 Step 5.Launch EasyConfig Launch the EasyConfig software, and click on the camera from the survey list to connect. Follow the EasyConfig software to configure the camera’s IP address and EasyLink settings. Step 6.Installation Completed Click <Live View> to view the live video feed of the network camera.
