Chapter 3 - Device Appearance Description

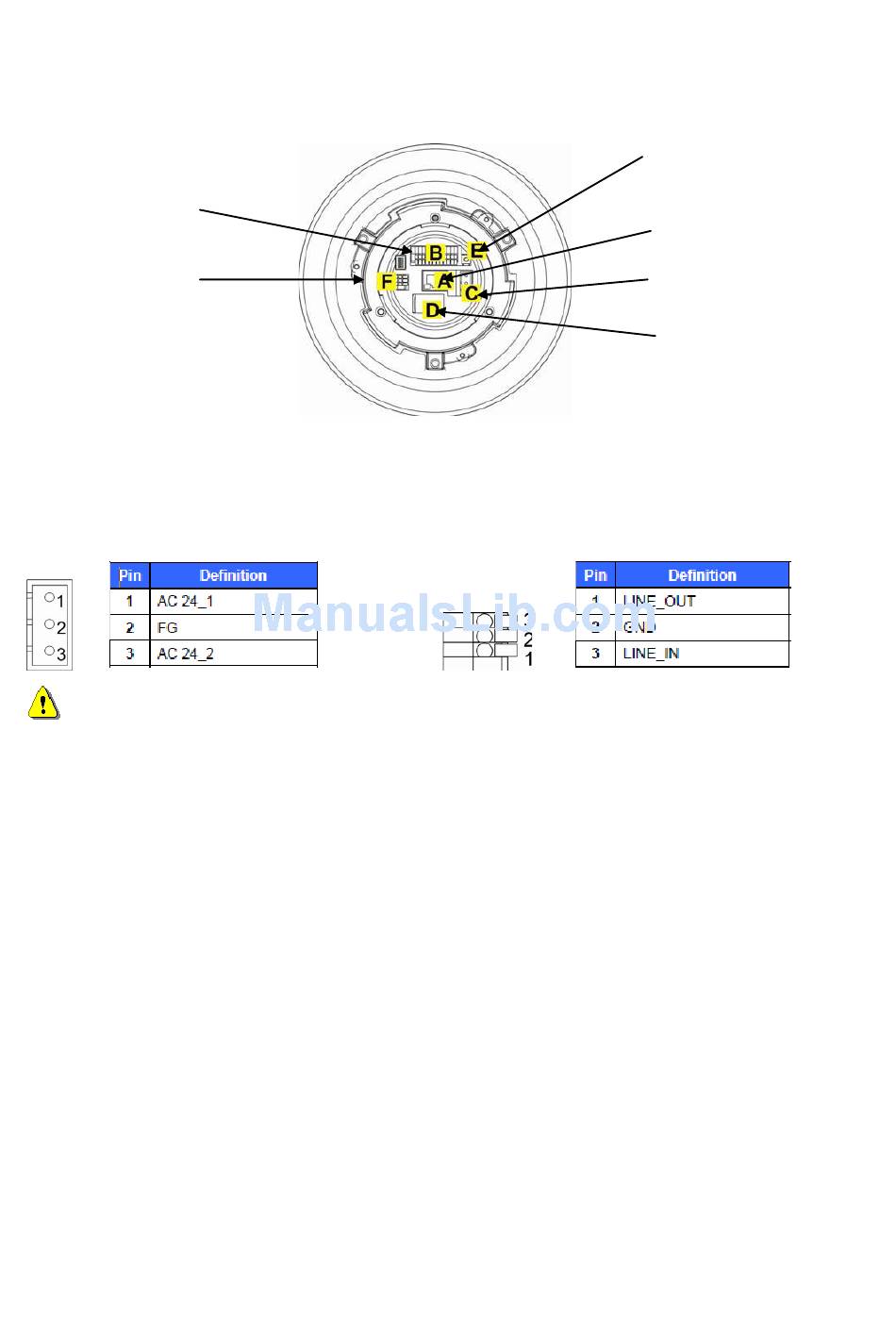

< Bottom View >
Alarm I/O
Audio I/O
Please refer to the illustrations below to connect power core through the supplied power
adaptor, and set up the audio according to the Audio pin definition.
< Power Connector>
NOTE- To power up the camera, please plug the AC 24V cable into the camera's
power connector (Operating Temperature: -40℃-50℃); Or connect the Ethernet cable to
the camera's Ethernet port and plug the other end of cable into an IEEE 802.3at High
Power over Ethernet (PoE plug)switch (Operating Temperature: -7℃-50℃)
<Audio Connector>
6
Factory Reset Button
Ethernet RJ45
10/100 Socket
Power
Micro SD Card Slot
