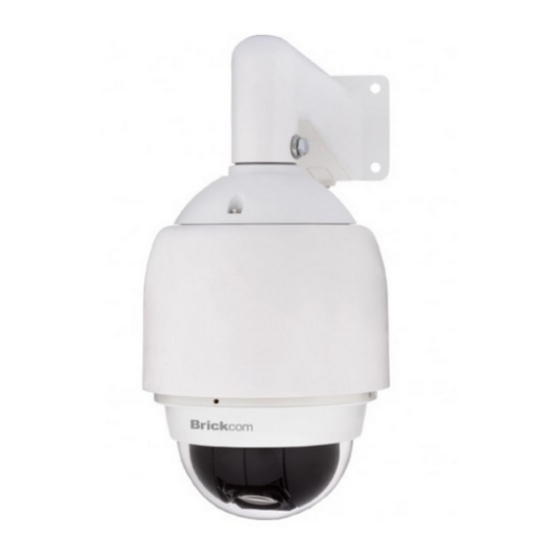

- Page 1 2 Megapixel Speed Dome Network Camera OSD-200A 20xp Easy Installation Guide...
- Page 2 Step 1. Check Package Contents b. M3 Standard Screw (x1)M3 Security Screw (x1) a. Network Camera M5 Standard Screw (x1) M5 Security Screw (x1) Security Torx Lubricant c. Waterproof Rubber d. Power Alarm I/O Audio Connector Connector Connector e. Outdoor Mount f.
- Page 3 <Bottom View> Please refer to the illustrations below to connect power core through the supplied power adaptor, and set up the audio according to the Audio pin definition. <Power Connector> <Audio Connector> NOTE: To power up the camera, please plug the AC 24V cable into the camera’s power connector (Operating Temperature: -40℃-50℃);...
- Page 4 <Alarm I/O Connector> When cabling, please refer to the table below for pin definition of Alarm I/O setting. Please make sure the alarm connections are properly. Step 2. HW Installation Apply lubricant to the Dome cover’s water-proof rubber to make the installation process smoother.
- Page 5 2. Attach the Dome cover to the Dome body by gently pressing down on the sides of the Dome cover with both hands. NOTE: DO NOT press the cover from the top as this may cause damage to the Dome body. 3.
- Page 6 Wall Mounting: Pendant Mount (mounting example) NOTE: Refer to the mounting instruction in the “Speed Dome Mounting Accessories Installation Guide” for more details.
- Page 7 Step 4. Install the EasyConfig Software Insert the CD into the CD-ROM, and follow the instructions of the Install Shield Wizard to finish installation. Step 5. Launch EasyConfig Launch the EasyConfig software, and click on the camera from the survey list to connect.
- Page 8 Enter the default user name (admin) and password (admin) in the prompt request dialogue. After connecting to the network Speed Dome Camera, the request for installing the ActiveX control will appear below the URL bar. Right click on the bar, and click “Install Brickcom ActiveX Control..” to permit ActiveX control installation.
