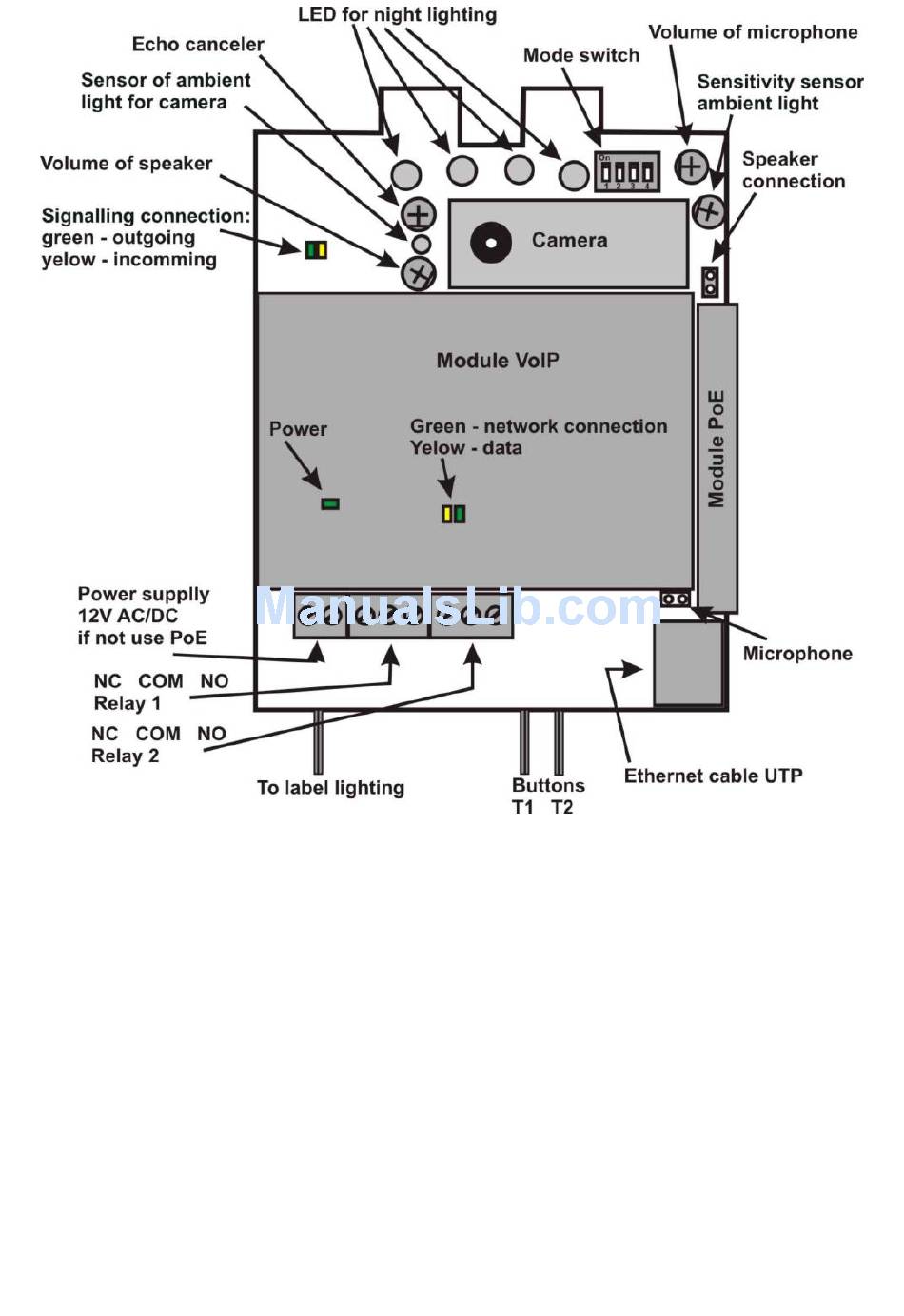

Picture 1 Basic module - motherboard
The relay connection is shown on pict. 2.(page 9) The "NO" designation
means an idle-disconnected contact, "COM" means a pin contact (middle) and
"NC" means an idle-connected contact. The contacts of both relays are
galvanically isolated each other and from other circuits as well. The variants of
relay connection are shown on picture. 3 and 4.( page 10)
IPDP - installation and operating instructions
8
