Alphatech Slim IPDP – 01 Installation And Operating Instructions Manual page 10

Slim ip door phone -voip
Hide thumbs Also See for Slim IPDP – 01:
Table of Contents

Advertisement

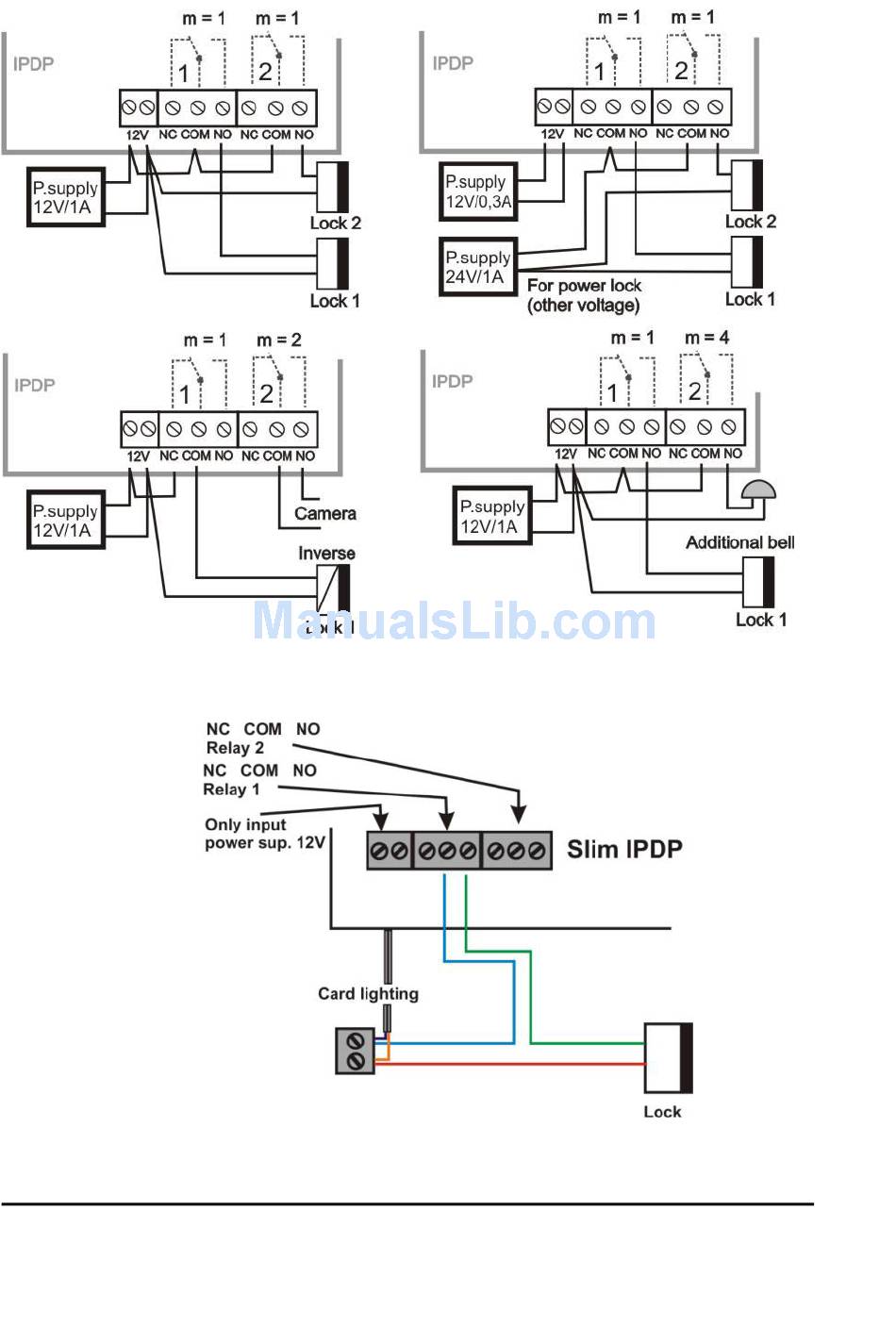

Picture 3 Examples of relays connection
Picture 4 Examples of relays connection powered by PoE
ATTENTION - lock is must be low power consumption, max 350mA.
IPDP - installation and operating instructions
10
