SBC84833 Series All-In-One Capa Board User's Manual
Pin Signal Pin
Digital Input 0
1
(Bit0)
Digital Input 1
3
(Bit1)
Digital Input 2
5
(Bit2)
7
Ground (GND)
9
Ground (GND)
72
Signal
Digital Output 0
2
(Bit3)
Digital Output 1
4
(Bit4)
Digital Output 2
6
(Bit5)
Digital Output 3
8
(Bit6)
Digital Output 4
10
(Bit7)

APPENDIX B

DIGITAL I/O

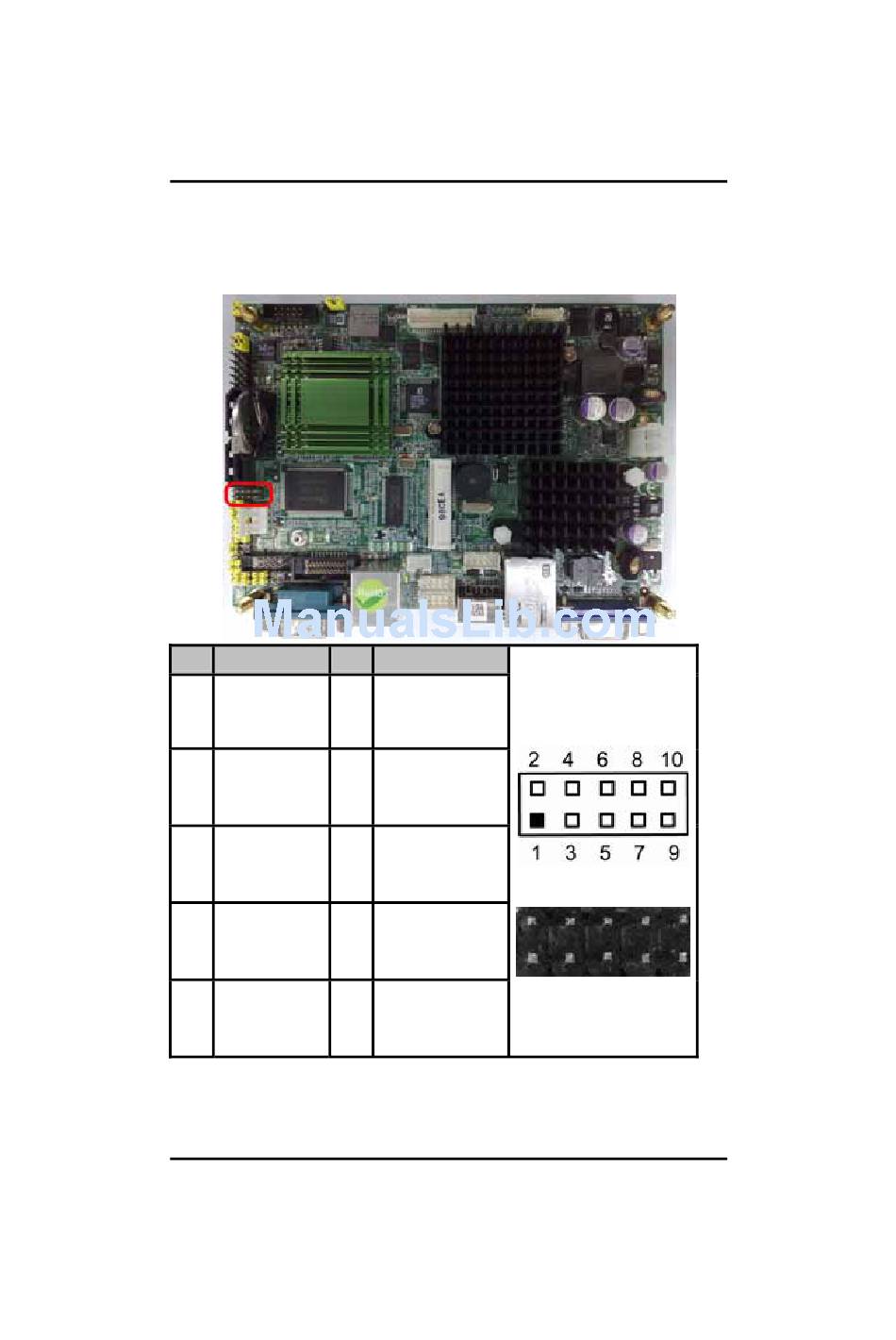

CN6
Digital I/O
