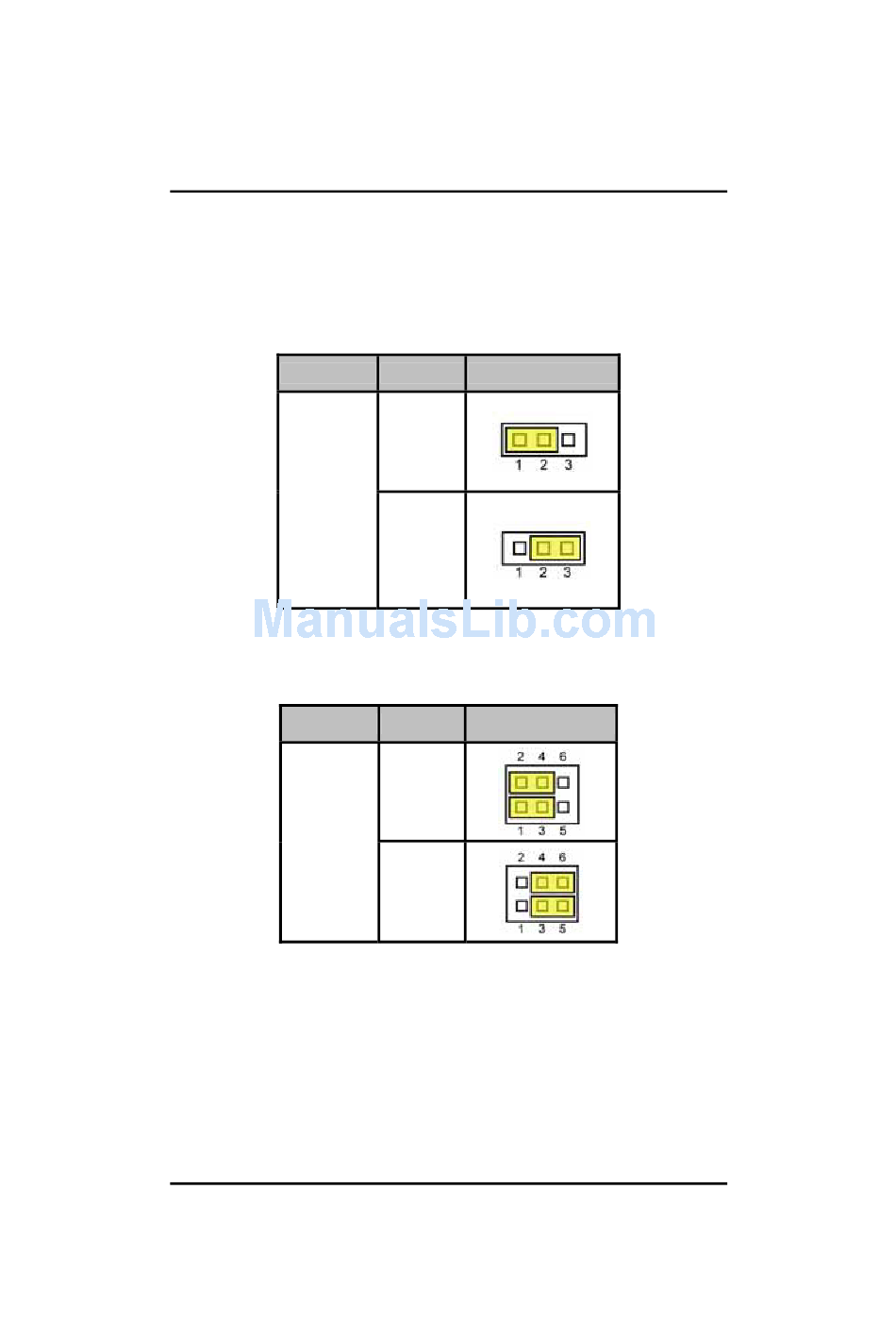

2.3.1 LCD Voltage Slection Jumper (JP1)

The board supports +3.3V or +5V flat panel displays.
Configure the jumper JP1 to the appropriate voltage of the
flat panel.
Description
LCD Voltage
Selection

2.3.2 Audio Output Jumper (JP2)

This jumper is to select the Audio output.
Description Function
Audio Output Line Out
10
Function Jumper Setting
3.3V
(Default)
5V
Jumper Setting
(Default)
Speaker
Out
