SBC84833 Series All-In-One Capa Board User's Manual

2.3.6

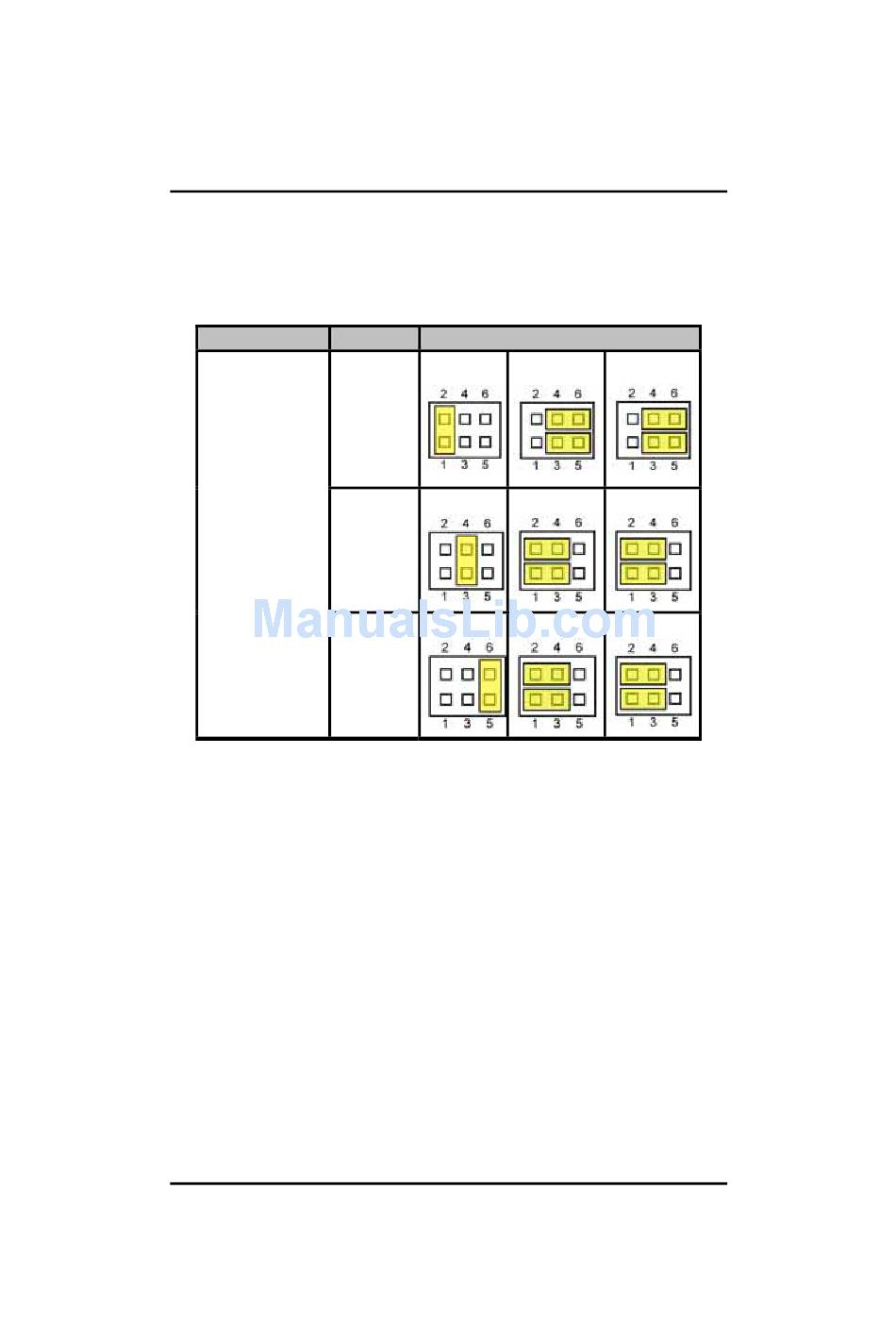

COM1 Mode Select Jumpers (JP6, JP7, JP8)

These jumpers select the communication mode of COM1 port to

operate RS-232 or RS-422 or RS-485.

Description

COM 1

Function

Jumper Setting

JP8

RS-232

(Default)

JP8

RS-422

JP8

RS-485

JP6

JP7

JP6

JP7

JP6

JUMPERS AND CONNECTORS
