2.3.7

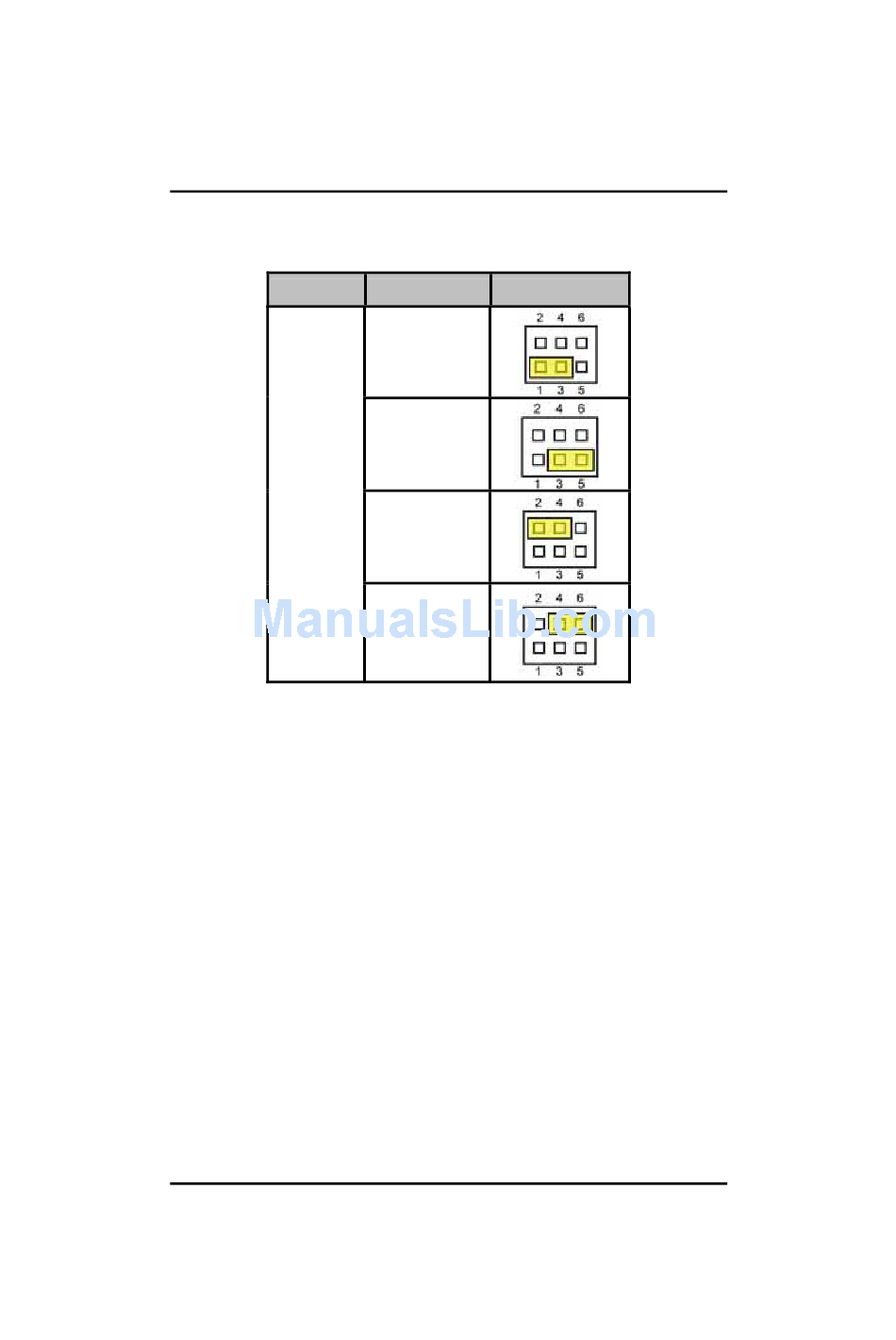

COM2 Mode Selection Jumper (JP9)
The jumper selects the DCD and RI mode of CN15 COM2 port.
Description
COM2
JUMPERS AND CONNECTORS
SBC84833 Series All-In-One Capa Board User's Manual
Function
Jumper Setting
CN15
Pin 1=5V
CN15
Pin 1=DCD
(Default)
CN15
Pin 8=12V
CN15
Pin 8=RI
(Default)
15
