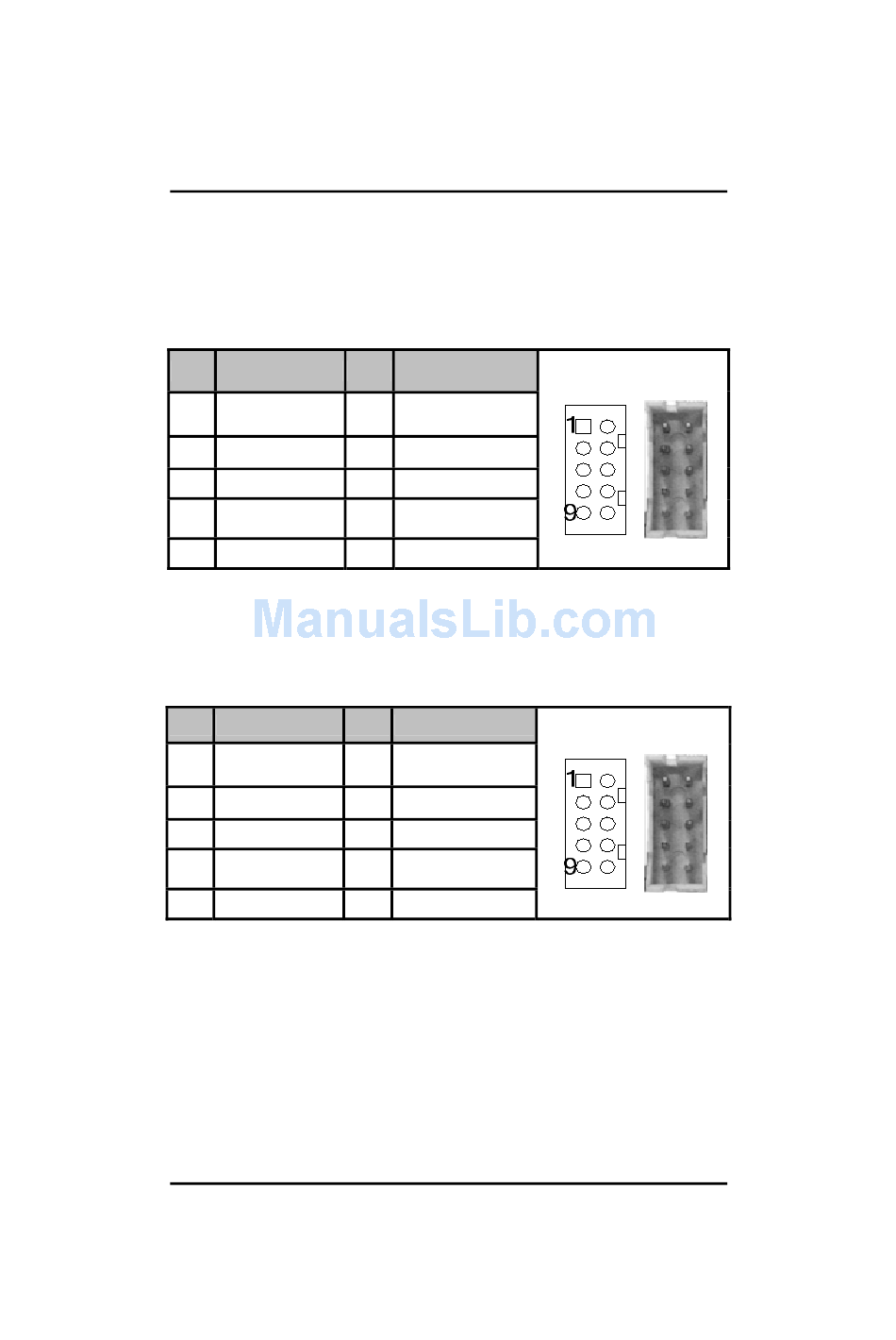

2.4.19 Internal USB Connector (USB4)

These Universal Serial Bus (USB) connectors on this board are
for installing versatile USB interface peripherals. This is a 10-
pin standard USB connector.
Pin Signal
1 USB VCC2
(+5VS)
3 USB D4
5 USB D4+
7 Ground (GND)
9 Ground (GND)
2.4.20

Internal USB Connector (USB2)

These Universal Serial Bus (USB) connectors on this board are for
installing versatile USB interface peripherals. This is a 10-pin standard
.
USB connector
Pin Signal
1 USB VCC3
(+5VS)
3 USB D6-
5 USB D6+
7 Ground (GND)
9 Ground (GND)
JUMPERS AND CONNECTORS
SBC84833 Series All-In-One Capa Board User's Manual
Pin Signal
2 USB VCC2
(+5VS)
4 USB D5-
6 USB D5+
8 Ground (GND)
10 Ground (GND)
Pin Signal
2 USB VCC3
(+5VS)
4 USB D7-(Optional)
6 USB D7+(Optional)
8 Ground (GND)
10 Ground (GND)
