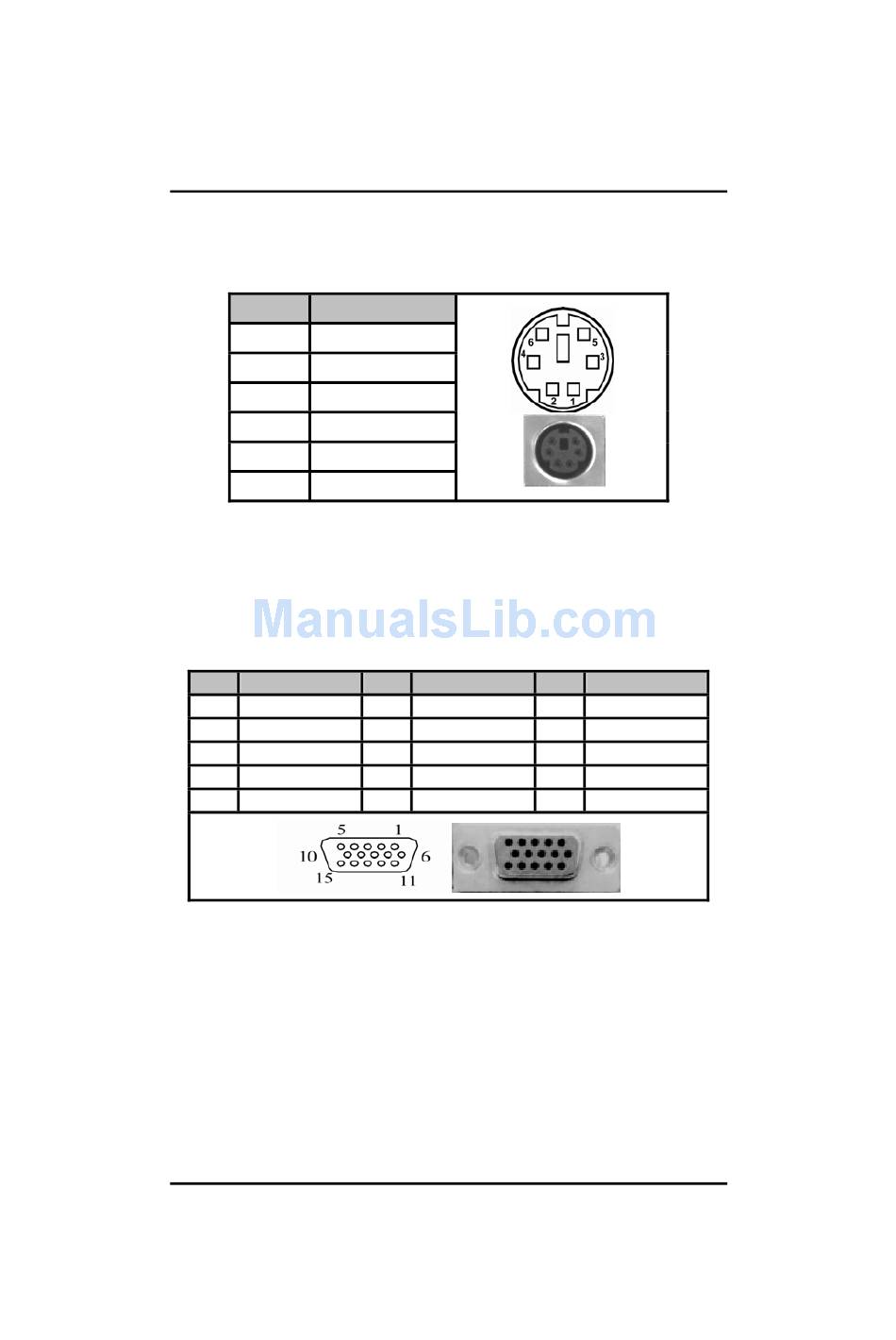

2.4.10 Keyboard and PS/2 Mouse Connector (CN11)

The board supports a PS/2 Keyboard and Mouse interface. Connector
is a DIN connector for PS/2 keyboard Connection via "Y" Cable.
Pin
1 Keyboard Data
2 Mouse Data
3 GND
4 VCC
5 Keyboard Clock
6 Mouse Clock
2.4.11

VGA Connector (CN13)

The board has three connectors to support CRT VGA and flat panel
displays, individually or simultaneously. Connector is a slim type 15-pin
D-Sub connector which is common for the CRT VGA display. The VGA
interface configuration is done via the software utility, and no jumper
setting is required.
Pin Signal
1 Red
4 N.C.
7 GND
10 GND
13 Horizontal Sync
JUMPERS AND CONNECTORS
SBC84833 Series All-In-One Capa Board User's Manual
Signal
Pin Signal
2 Green
5 GND
8 GND
11 N.C.
14 Vertical Sync
Pin Signal
3 Blue
6 DETECT
9 VCC
12 DDC DATA
15 DDC CLK
