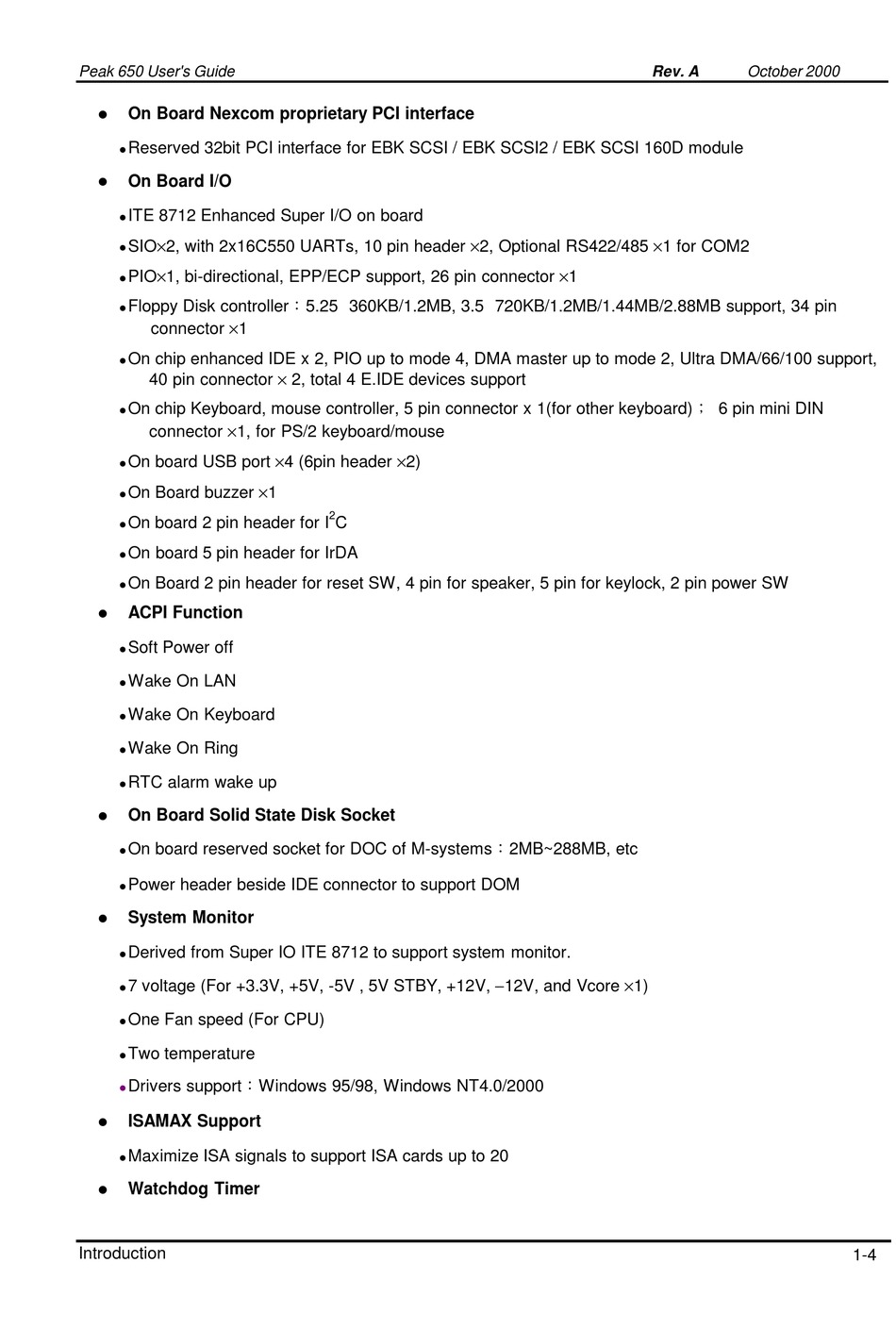

Peak 650 User's Guide
! On Board Nexcom proprietary PCI interface
Reserved 32bit PCI interface for EBK SCSI / EBK SCSI2 / EBK SCSI 160D module
!
! On Board I/O
ITE 8712 Enhanced Super I/O on board
!
SIO×2, with 2x16C550 UARTs, 10 pin header ×2, Optional RS422/485 ×1 for COM2
!
PIO×1, bi-directional, EPP/ECP support, 26 pin connector ×1
!
Floppy Disk controller5.25  360KB/1.2MB, 3.5  720KB/1.2MB/1.44MB/2.88MB support, 34 pin
!
connector ×1
On chip enhanced IDE x 2, PIO up to mode 4, DMA master up to mode 2, Ultra DMA/66/100 support,
!
40 pin connector × 2, total 4 E.IDE devices support
On chip Keyboard, mouse controller, 5 pin connector x 1(for other keyboard) 6 pin mini DIN
!
connector ×1, for PS/2 keyboard/mouse
On board USB port ×4 (6pin header ×2)
!
On Board buzzer ×1
!
On board 2 pin header for I
!
On board 5 pin header for IrDA
!
On Board 2 pin header for reset SW, 4 pin for speaker, 5 pin for keylock, 2 pin power SW
!
! ACPI Function
Soft Power off
!
Wake On LAN
!
Wake On Keyboard
!
Wake On Ring
!
RTC alarm wake up
!
! On Board Solid State Disk Socket
On board reserved socket for DOC of M-systems2MB~288MB, etc
!
Power header beside IDE connector to support DOM
!
! System Monitor
Derived from Super IO ITE 8712 to support system monitor.
!
7 voltage (For +3.3V, +5V, -5V , 5V STBY, +12V, −12V, and Vcore ×1)
!
One Fan speed (For CPU)
!
Two temperature
!
Drivers supportWindows 95/98, Windows NT4.0/2000
!
! ISAMAX Support
Maximize ISA signals to support ISA cards up to 20
!
Watchdog Timer
!
Introduction
2
C
Rev. A October 2000
1-4
