Peak 650 User's Guide

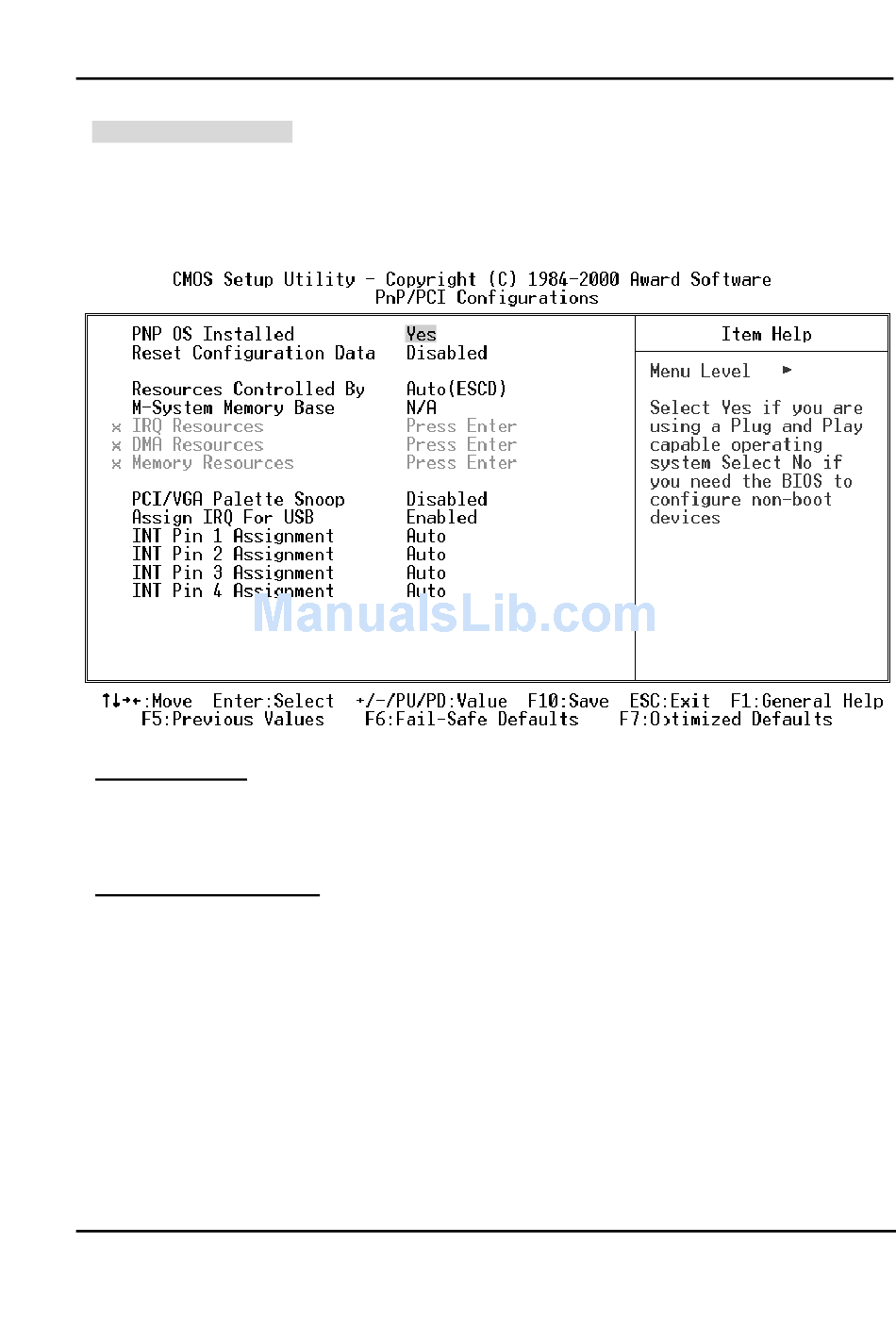

PnP/PCI Configuration

This section describes configuring the PCI bus system. P eripheral C omponent I nterface, is a system
which allows I/O devices to operate at speeds nearing the speed the CPU itself uses when communicating
with its own special components.
recommended that only experienced users should make any changes to the default settings.
PNP OS Installed
Select Yes if the system operating environment is Plug-and-Play aware (e.g. Windows 95).
The Choice: Yes, No.
Reset Configuration Data
Normally, you leave this field Disabled. Select Enabled to reset Extended System Configuration Data
(ESCD) when you exit Setup if you have installed a new add-on Card and the system reconfiguration has
caused such a serious conflict that the operating system can not boot.
The choice: Enabled, Disabled .
BIOS Setup
This section covers some very technical items and it is strongly
Rev. A October 2000
4-25
