Watch Dog Timer Control Register

The Watch Dog Timer Control Register is to control the WDT working mode. You can write the value to
WDT Configuration Port.

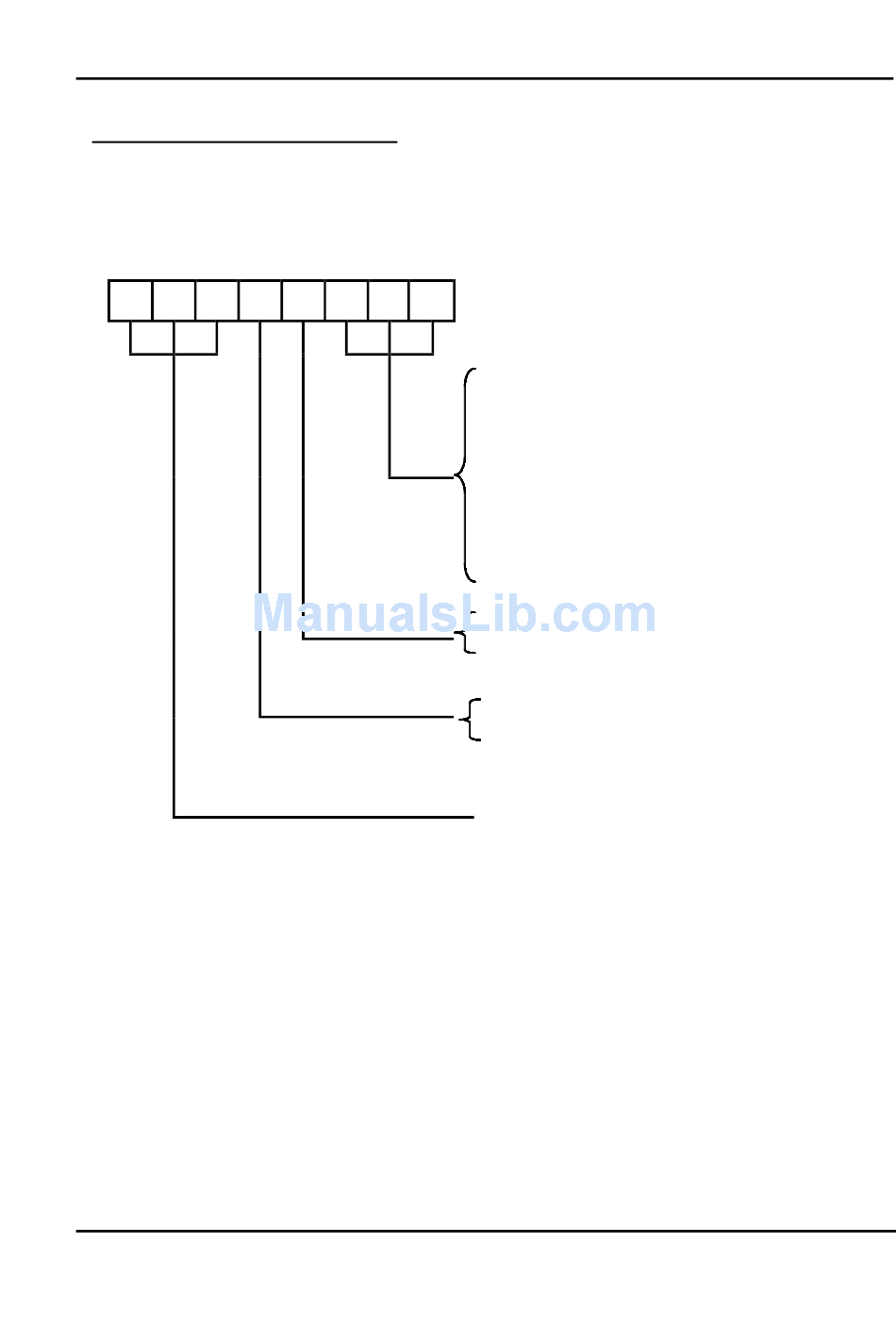

The following is the Control Register bit definition.
7 6 5
X X X
Apendix
4 3 2 1 0
111 : N/A
110 : Select 1 second
101 : Select 2 second
100 : Select 4 second
011 : Select 8 second
010 : Select 16 second
001 : Select 32 second
000 : Select 64 second
1 : Enable Watch Dog Timer
0 : Disable Watch Dog Timer
1 : Select NMI
0 : Select Reset
Don care
