Peak 650 User's Guide

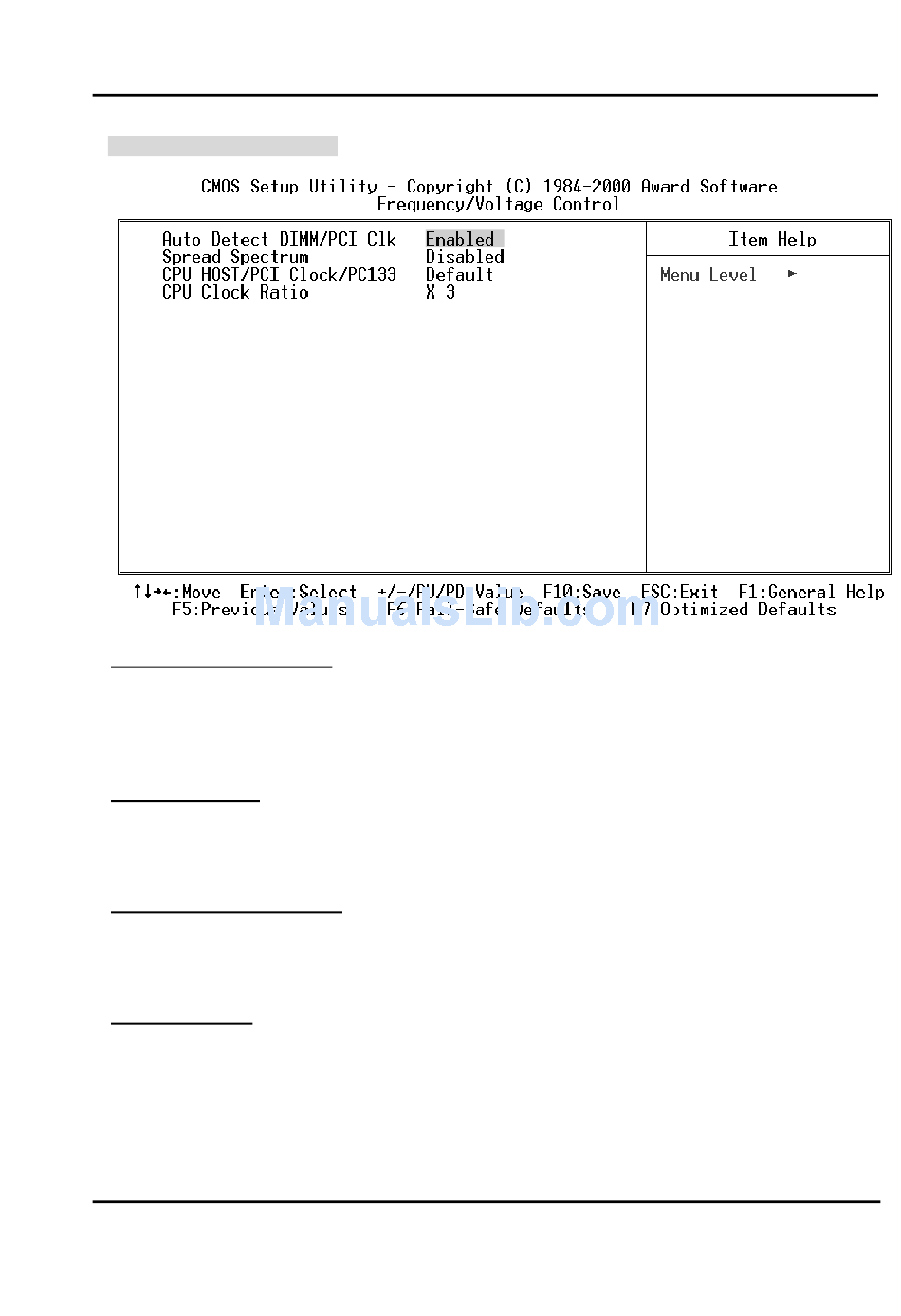

Frequency/Voltage Control

Auto Detect DIMM/PCI Clk
When enabled, this item will auto detect if the DIMM and PCI socket have devices and will send clock
signal to DIMM and PCI devices.
The choice: Enabled, Disabled.
Spread Spectrum
This item allows you to enable/disable the spread spectrum modulate.
The choice: Enabled, Disabled.
CPU Host/PCI Clock/PC133
This item allows you to slightly adjust the clock frequency.
The choice: 66MHZ~166MHZ.
CPU Clock Ratio
This item allows you to set up the CPU clock ratio, but this function depends on different CPU performance.
It is only effective for those clock ratio haven been locked.
The choice: X3~X8
BIOS Setup
When disabled, it will send the clock signal to all DIMM and PCI socket.
Rev. A October 2000
4-28
